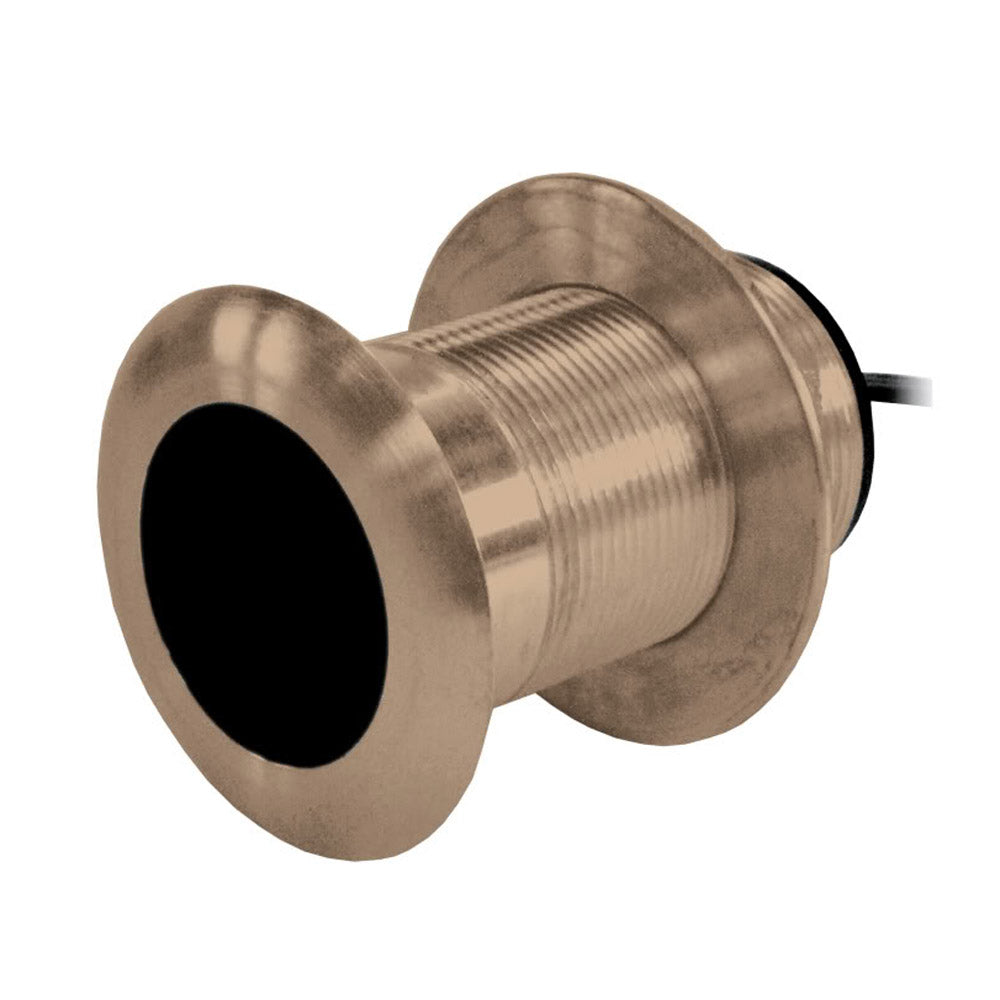

The Garmin B619 is a low-profile bronze thru-hull transducer built for cruising powerboats and sailboats up to 30 feet. Its 20° tilted ceramic element provides built-in deadrise compensation for hulls in the 16° to 24° range, while only 5mm (2/10") of the housing extends below the hull — keeping underwater drag to a minimum. The large-format ceramic element supports deep echosounding to 206 meters (700 feet), and a right-angle cable exit keeps the connector protected in tight bilge spaces and reduces the risk of damage if the unit is stepped on.

Specifications:

• Connector: 8-Pin
• Housing material: Bronze
• Tilt angle: 20° with built-in deadrise compensation
• Compatible hull deadrise range: 16° to 24°
• Hull protrusion: 5mm (2/10")
• Maximum depth capability: 206M (700')
• Function: Depth only, or depth and temperature
• Optional temperature sensor available
• Right-angle cable exit for low-headroom installations
• Includes rubber washer for seating on irregular hull surfaces
• ABYC H-27 compliant housing
• Recommended boat size: Up to 9M (30')
• Applications: Cruising powerboats and sailboats
