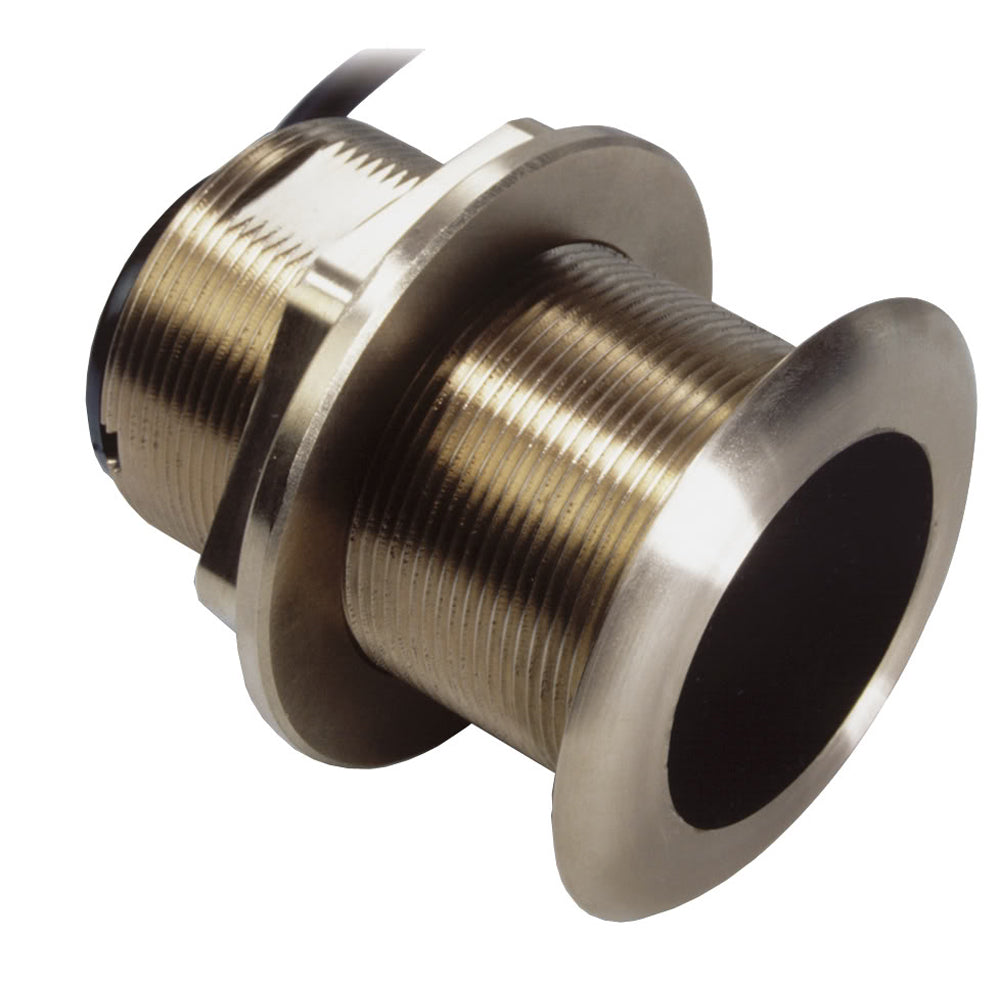

The Garmin B60 is a bronze tilted-element transducer designed for fiberglass and wood hulls with deadrise angles between 8 and 15 degrees — no fairing block required. Operating at 50 to 200 kHz with 600 watts of power, it delivers reliable depth readings to 1,200 feet. Not compatible with metal hulls. When paired with a 6-pin Garmin sounder, a transducer adapter cable is required (sold separately).

Specifications:

• Transducer type: Tilted element bronze
• Power: 600W
• Connector: 8-pin
• Operating frequency: 50–200 kHz
• Beamwidth: 12°–45°
• Depth range: 800–1,200 feet
• Tilted element angle: 12°
• Deadrise accommodation: 8°–15° (no fairing required)
• Compatible hull materials: Fiberglass and wood
• Includes installation instructions

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
