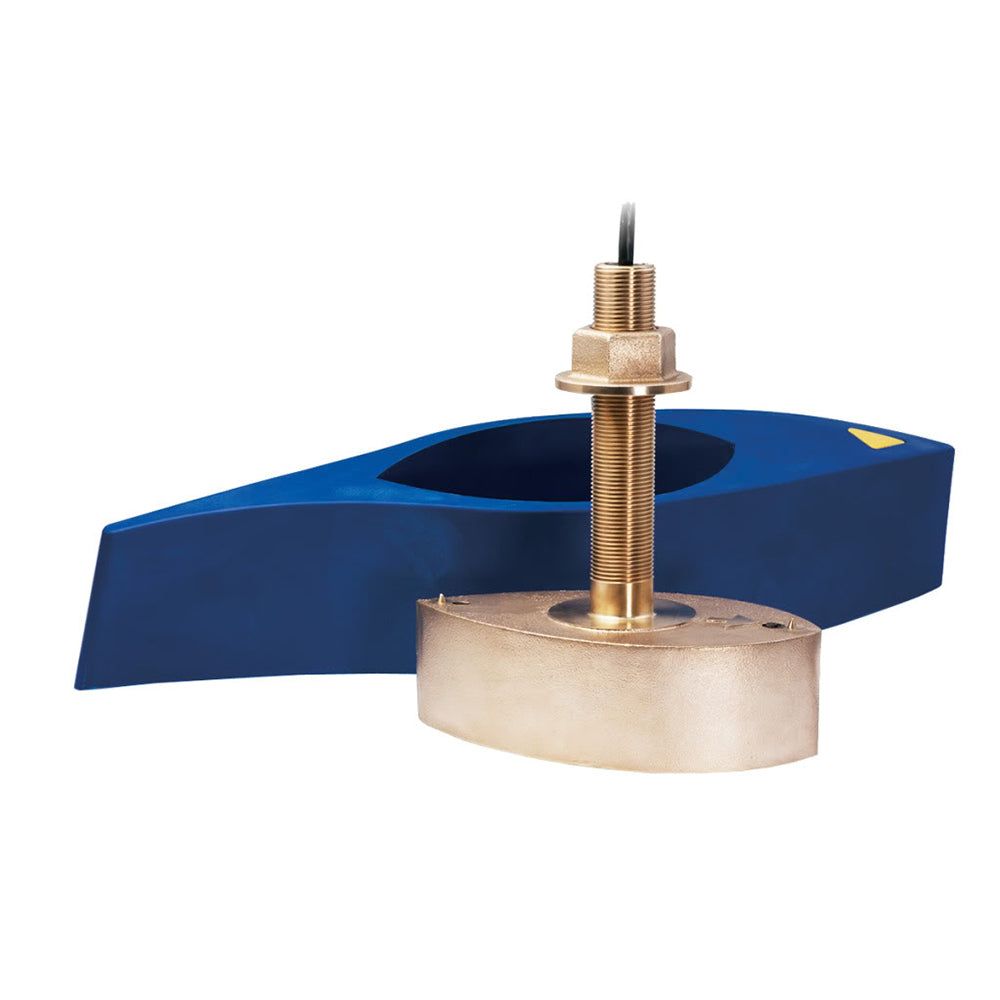

The Garmin B275LH-W is an Airmar-built bronze thru-hull transducer that combines wide coverage with deep-water capability in a single dual-frequency CHIRP-ready unit. Spanning 123 kHz of total bandwidth, it covers the 50 kHz and 200 kHz fishing frequencies along with the full range in between. A fixed 25° wide beam at high frequency delivers roughly twice the coverage of a standard narrow-beam transducer, improving fish detection across the upper water column. The included high-performance fairing maintains broadband performance at speeds above 30 knots, making this transducer well suited for larger offshore vessels.

Specifications:

• Connector: 12-Pin
• Housing material: Bronze with high-performance fairing
• Hull compatibility: Fiberglass or wood
• Recommended boat size: 8 m (25') and larger
• Low frequency range: 42 kHz – 65 kHz
• Low frequency beamwidth: 25° – 16°
• Low frequency maximum depth: 914 m (3,000')
• Low frequency power: 1 kW
• High frequency range: 150 kHz – 250 kHz
• High frequency beamwidth: 25° constant
• High frequency maximum depth: 152 m (500')
• Total bandwidth: 123 kHz from a single transducer
• Covers 50 kHz and 200 kHz fishing frequencies plus the full bandwidth range
• High frequency provides superior bottom detail, shallow-water resolution, and fish target separation
• Wide high-frequency beamwidth enhances coverage for detecting fish in the upper water column
• Built-in fast-response water temperature sensor
• Fairing rated for optimal performance at speeds exceeding 30 knots (34 MPH)
• Exclusive Xducer ID® technology
