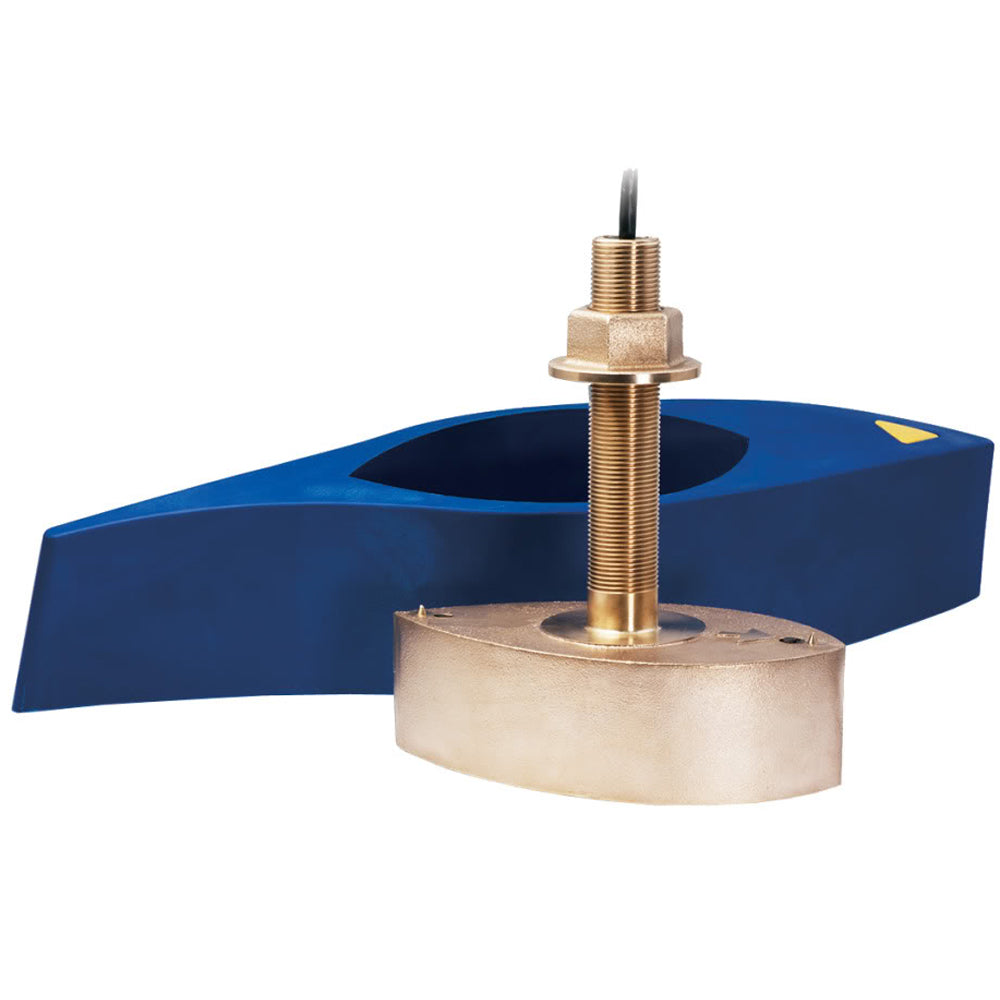

The Garmin B265LH is a 1 kW bronze thru-hull transducer built for serious depth capability, reaching bottom readings down to 3,000 feet with sharp water column detail. Dual operating frequency ranges let you switch between a wide low-frequency cone for broad coverage and a tight high-frequency beam for precise target separation. Integrated depth and temperature sensing and a 12-pin connector make it a direct fit for select Garmin chartplotters and sonar modules.

Specifications:

• Transducer type: Bronze thru-hull mount
• Connector: 12-pin
• Power: 1 kW
• Maximum depth: 3,000 feet
• Operating frequencies: 42–65 kHz and 130–210 kHz
• Beamwidth: 16–25 degrees (low frequency) and 6–10 degrees (high frequency)
• Deadrise range: 0–20 degrees
• Sensors: Depth and temperature
• Includes: Transducer and installation instructions

Compatible Devices:

• GPSMAP® 7607xsv, 7608xsv, 7610xsv, 7612xsv, 7616xsv
• GSD™ 25 Premium Sonar Module
