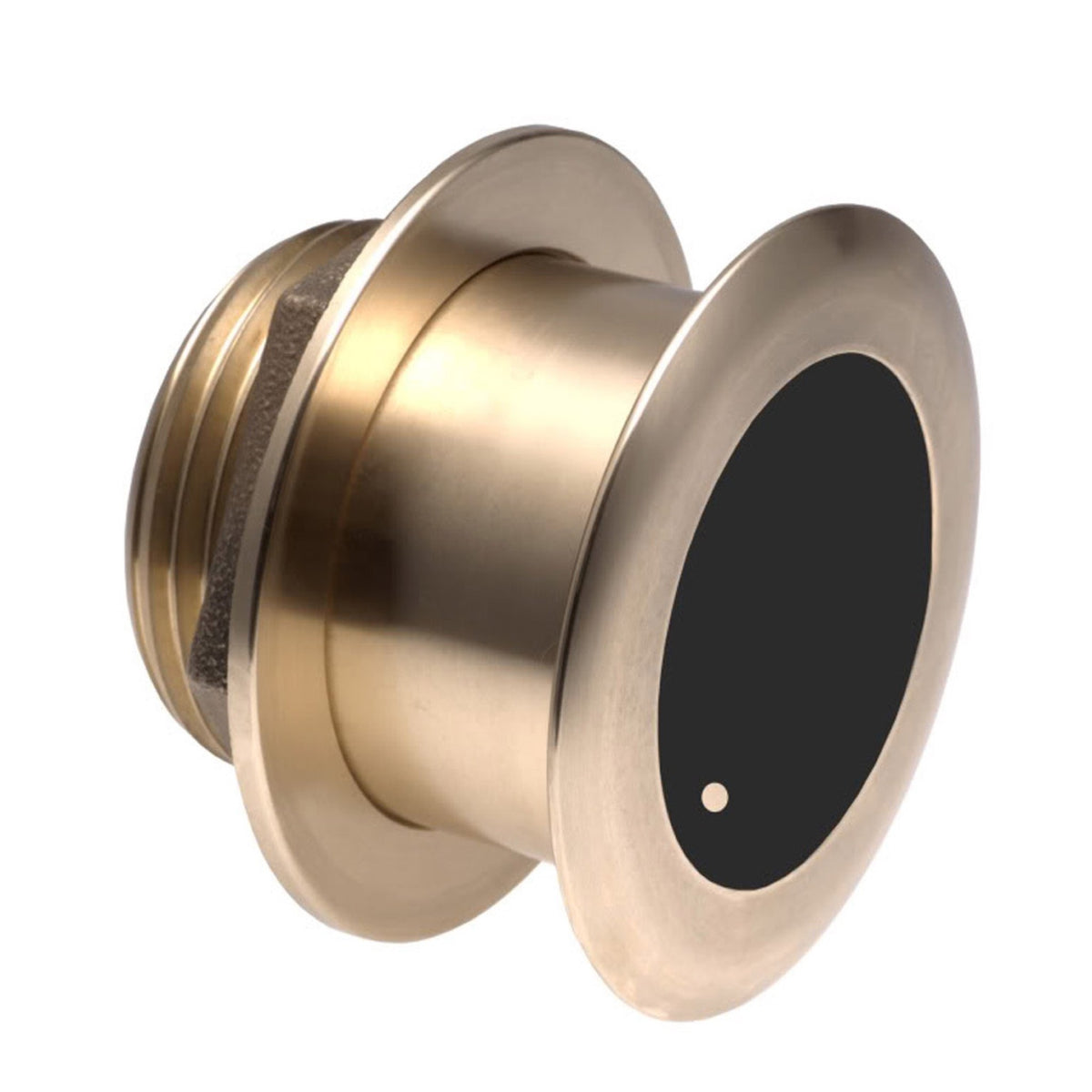

The Garmin B175M is a flush-mounted bronze thru-hull transducer built on the Airmar B175M platform. Its housing protrudes less than 1/4" beyond the hull surface, making it safe to rest on trailer rollers or bunks without risk of damage. The tilted internal element accommodates varying hull deadrises without requiring a fairing block, and the design is well suited to fiberglass and wood hulls. Rated at 1kW and capable of reading depths to 3,000 feet, it connects via an 8-pin connector.

Specifications:

• Housing Material: Bronze
• Mount Type: Flush thru-hull, 0° tilt
• Hull Protrusion: Less than 1/4"
• Power: 1kW
• Connector: 8-pin
• Maximum Depth: 3,000 ft
• Supported Deadrise / Transom Angles: 0–7°
• Compatible Hull Materials: Fiberglass, wood
• Fairing Block Required: No

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
