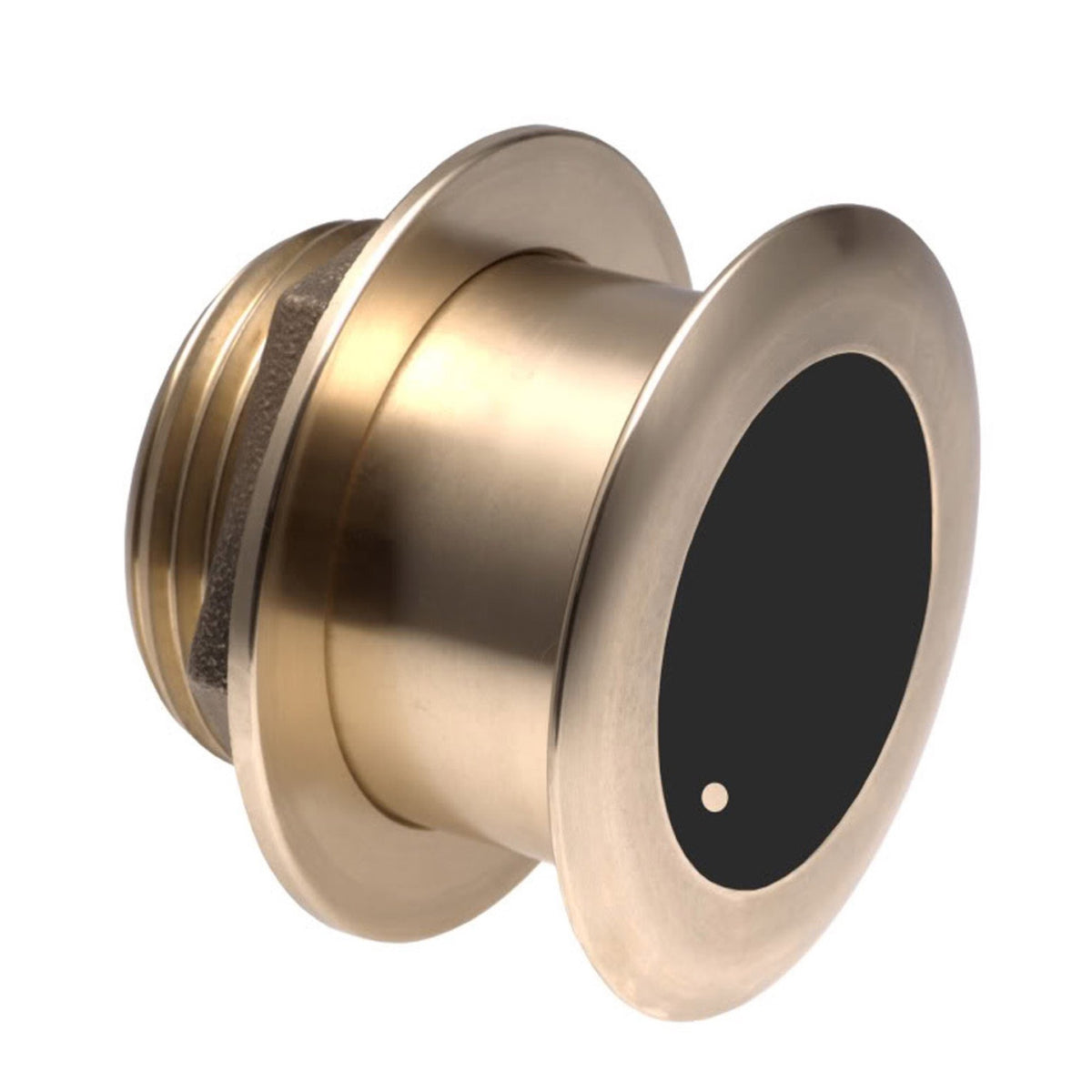

The Garmin B175L Bronze Thru-Hull Transducer is built on the proven Airmar B175L platform and designed for clean, flush installation through fiberglass or wood hulls. Its low-profile housing protrudes less than 1/4" beyond the hull surface, so it rides safely on trailer rollers and bunks without risk of contact damage. An internally tilted element handles a broad range of hull deadrises without a fairing block, keeping the installation straightforward and the hull bottom smooth.

Specifications:

• Housing material: Bronze, flush-mount thru-hull
• Hull protrusion: Less than 1/4"
• Element tilt: 20°
• Power output: 1kW
• Connector: 8-pin
• Maximum depth rating: 3,000 ft
• Supported deadrise range: 16–24°
• Compatible hull materials: Fiberglass, wood
• Trailer-safe: Yes — clears rollers and bunks without damage
• Fairing block required: No

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
