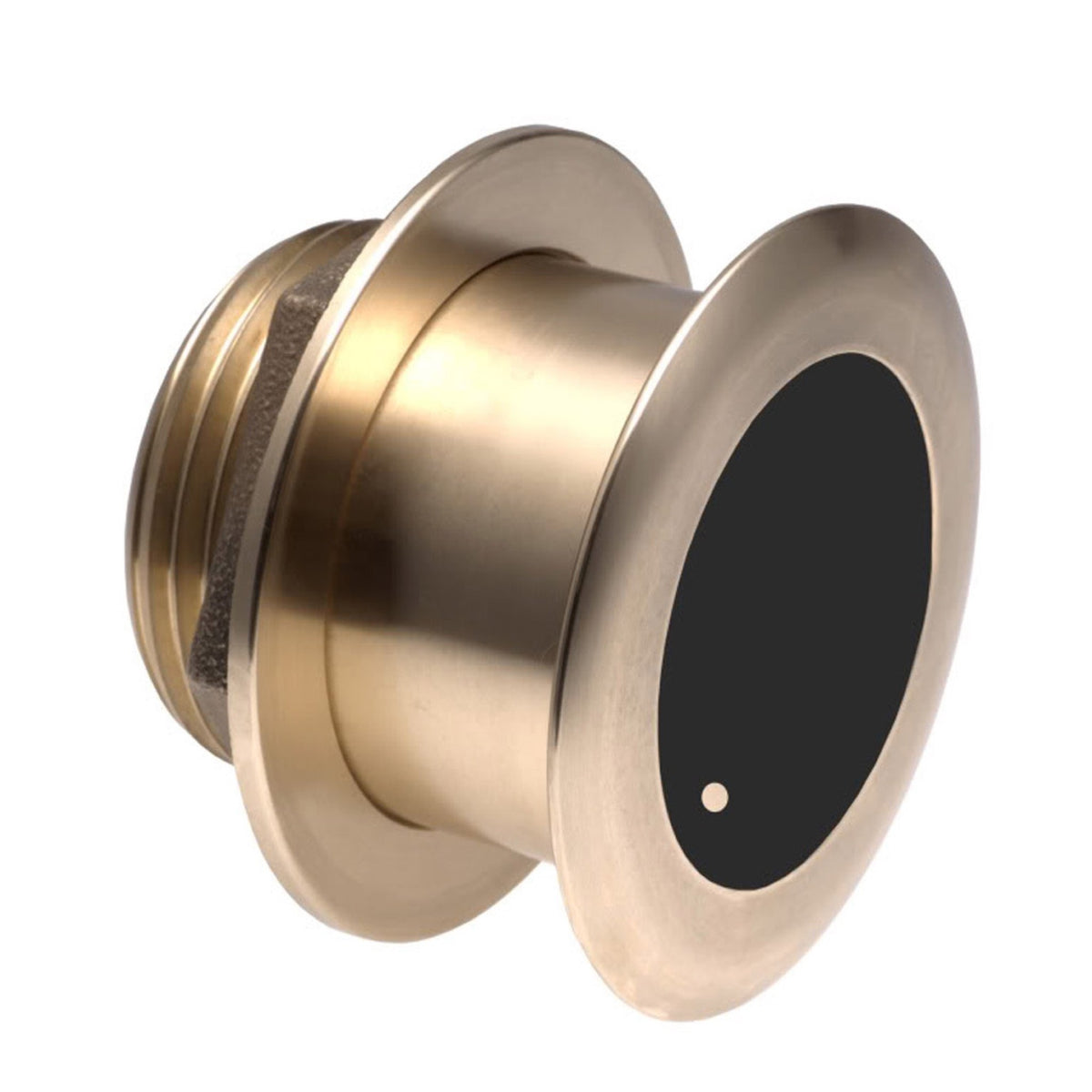

The Garmin B175L is a flush-mount bronze thru-hull transducer built on the Airmar B175 platform, designed for fiberglass and wood hulls across a broad range of deadrise angles. Its 12° tilted internal element accommodates hull deadrises from 8° to 15° without a fairing block, and the housing extends less than 1/4" past the hull surface — keeping it safe on trailer rollers and bunks. With 1kW of output and a maximum depth rating of 3,000 feet, this 8-pin unit is available in low, medium, and high frequency versions to match a variety of sonar systems.

Specifications:

• Housing Material: Bronze, flush-mount thru-hull
• Hull Protrusion: Less than 1/4"
• Tilt Angle: 12°
• Power Output: 1kW
• Connector: 8-pin
• Maximum Depth: 3,000 ft
• Supported Deadrise / Transom Angles: 8–15°
• Compatible Hull Materials: Fiberglass, wood
• Frequency Versions Available: Low, medium, and high
• Trailer Safe: Yes — sits on rollers/bunks without damage

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
