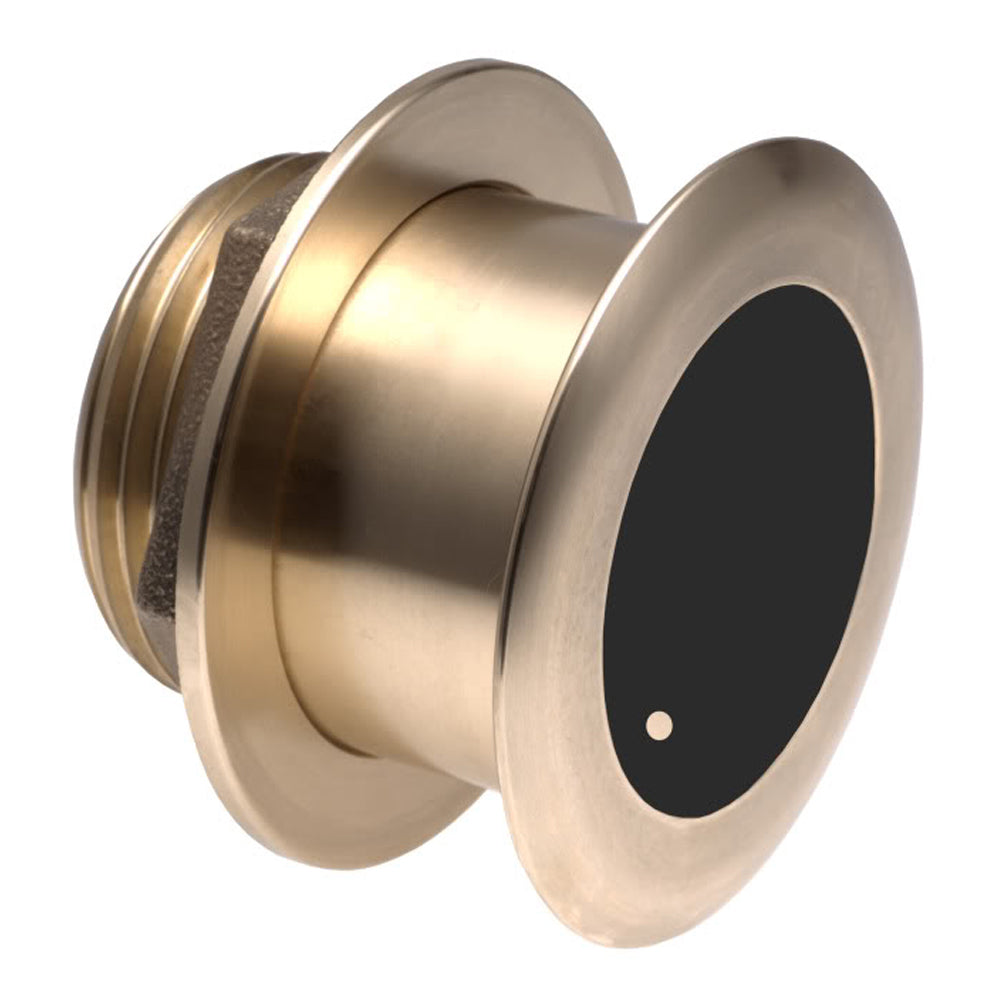

The Garmin B164 is a 1 kW bronze thru-hull transducer engineered for coastal and offshore applications where hull geometry matters. Its 20° tilted element keeps the sonar beam oriented straight down on hulls with deadrise angles between 16° and 24°, eliminating the need for a separate fairing block. Dual-frequency operation at 50 kHz and 200 kHz provides solid depth coverage and water temperature readings across a broad range of conditions.

Specifications:

• Transducer type: Bronze thru-hull mount
• Element tilt: 20°
• Compatible hull deadrise angle: 16°–24°
• Operating frequencies: 50 kHz and 200 kHz
• Power output: 1 kW
• Connector: 8-pin
• Data output: Depth and water temperature

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
