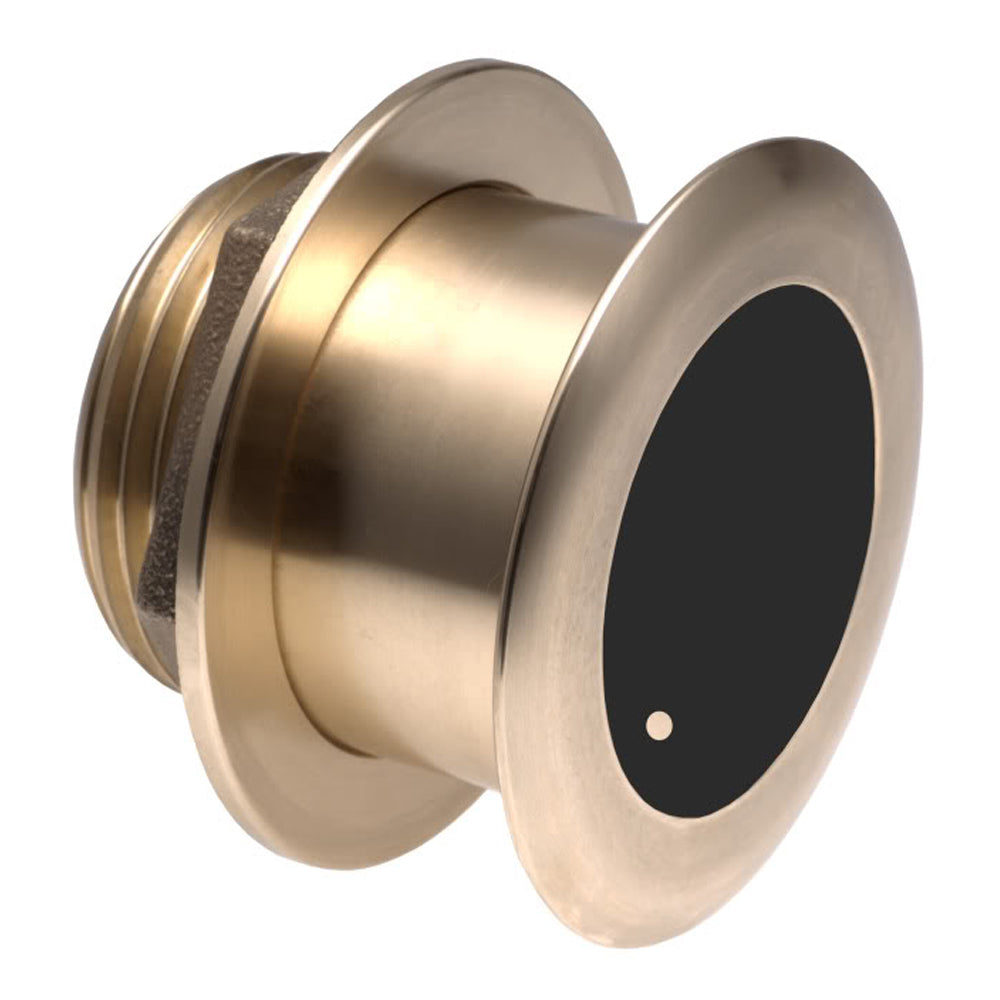

The Garmin B164 is a bronze thru-hull transducer built for vessels with a deadrise angle between 8° and 15°. Its 12° tilted element keeps the transducer face parallel to the water, delivering accurate depth and water temperature readings at both 50 kHz and 200 kHz operating frequencies. The 8-pin connector pairs with compatible Garmin chartplotters and fishfinders.

Specifications:

• Mount type: Bronze thru-hull
• Tilt angle: 12°
• Compatible deadrise: 8°–15°
• Operating frequencies: 50 kHz / 200 kHz
• Power output: 1 kW
• Connector: 8-pin
• Data: Depth and temperature

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
