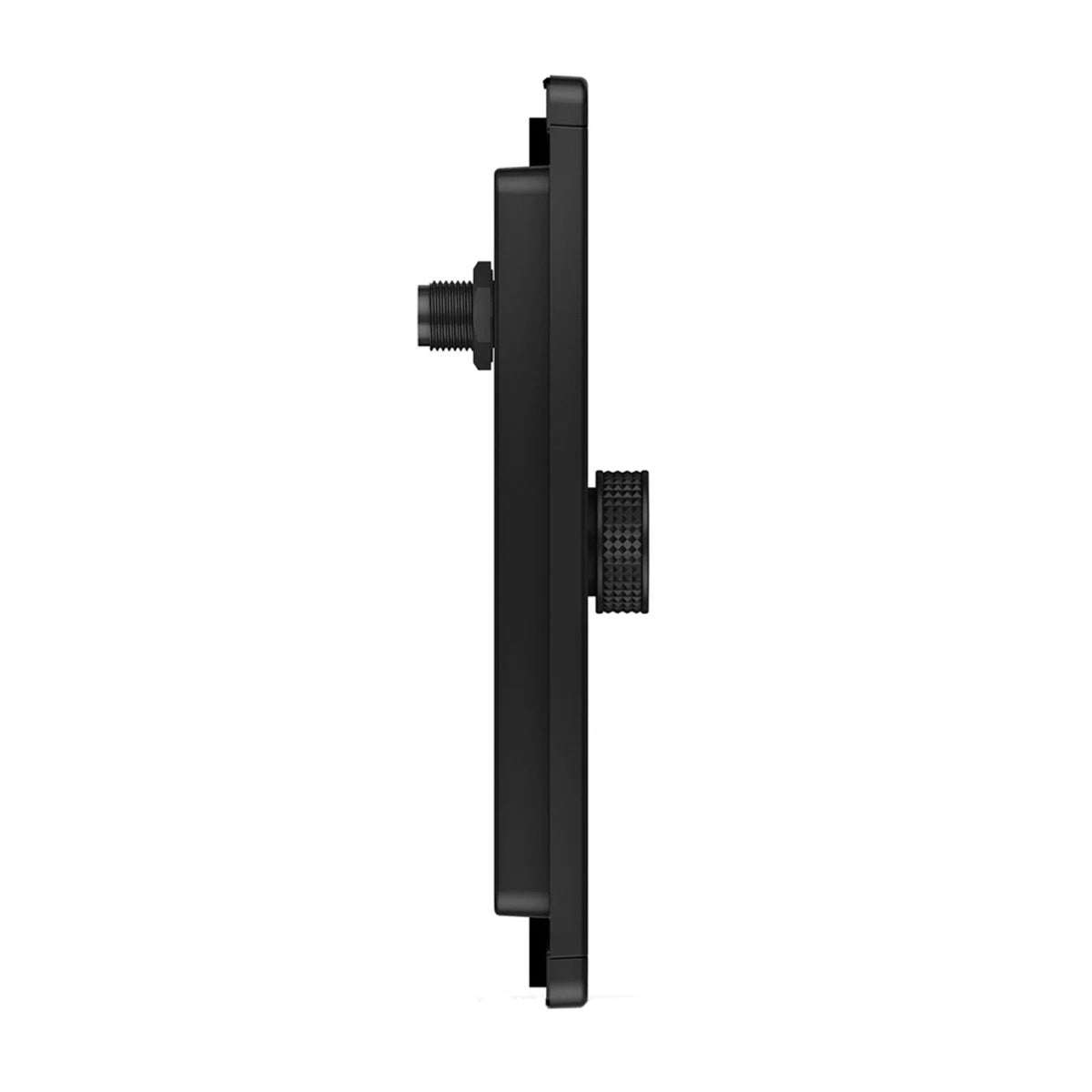

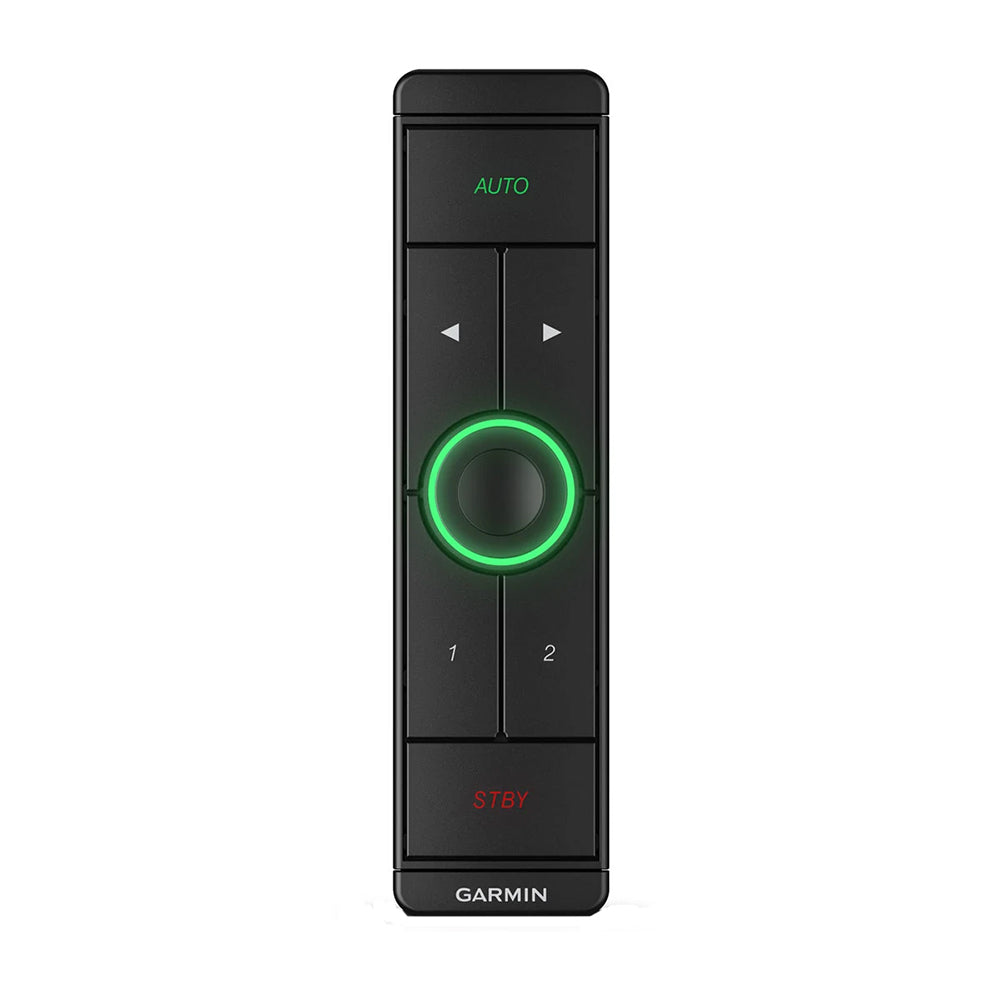

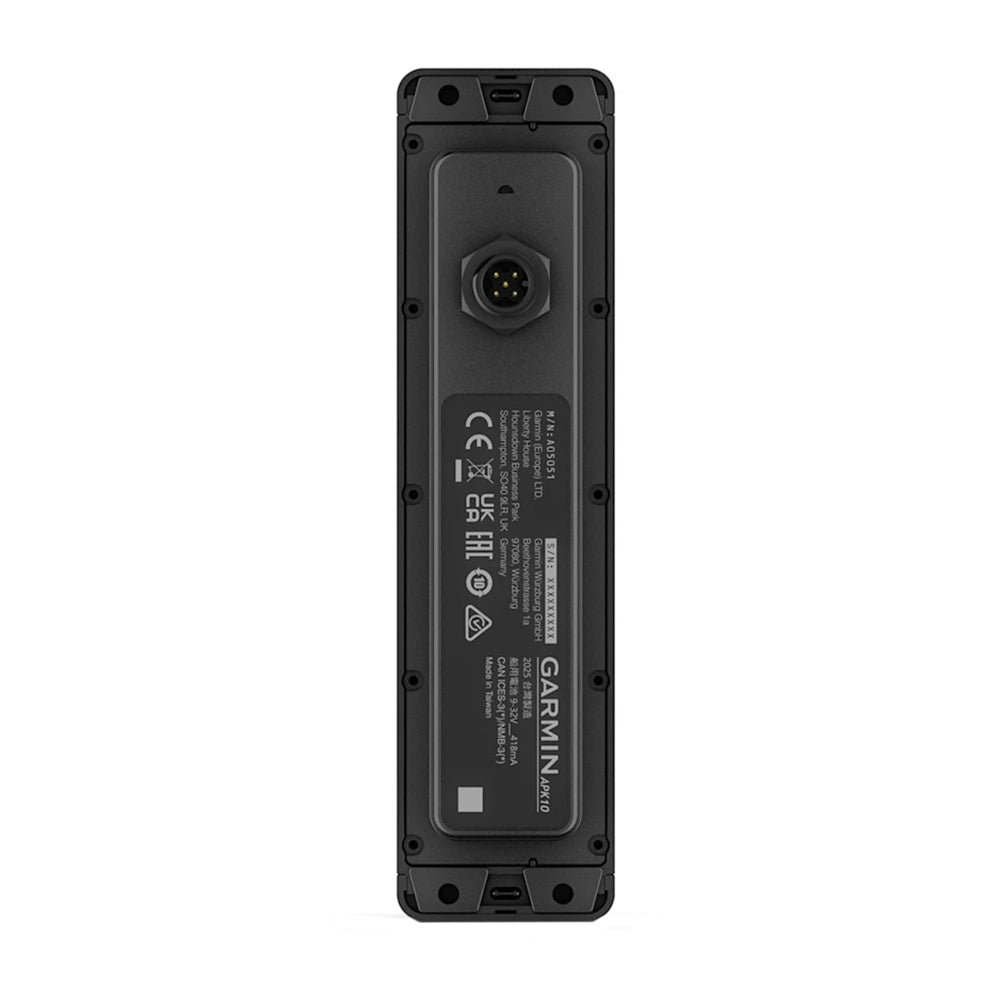

The Garmin APK 10 Autopilot Keyboard in vertical orientation gives you direct, hands-on control of your Reactor 40 autopilot from the helm. An LED-ringed rotary knob delivers precise heading adjustments while simultaneously indicating autopilot status by color. Dedicated engage and standby buttons handle startup and shutdown, and multipurpose buttons can be configured to match your vessel type and preferred setup. A single NMEA 2000 port and cable handles both integration and power, keeping the installation straightforward. The low-profile form factor is sized to align flush with a GHC 50 instrument or GPSMAP chartplotter, and the vertical orientation suits new or retrofit helm configurations.

In the Box:

• APK 10 autopilot keypad (vertical)
• Backbone/drop cable (2 m) and T-connector for the NMEA 2000 network
• Mounting hardware (flush and surface)
• Documentation

Specifications:

• Dimensions (W x H x D) — Flush mount: 1.6" x 6.2" x 0.28" (40.1 x 157.0 x 7.0 mm); Surface mount: 1.6" x 6.2" x 0.65" (41.1 x 158.0 x 16.4 mm)
• Weight: 3.5 oz (100 g)
• Operating temperature: 5° to 158°F (-15° to 70°C)
• Material: Fully gasketed, high-impact plastic
• Water rating: IPX7
• Compass-safe distance: 4.5" (114 mm)
• Power: Supplied via the NMEA 2000 network
