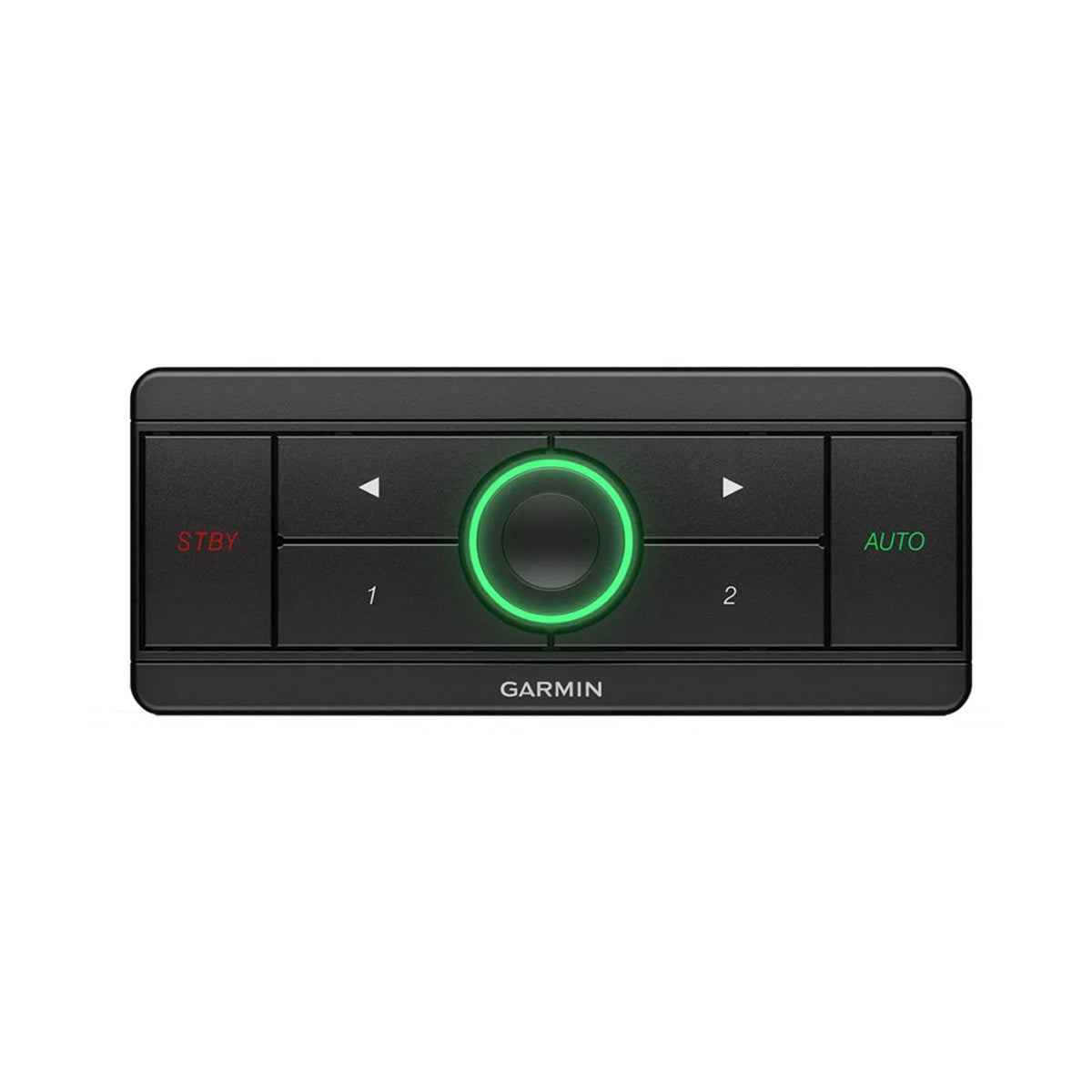

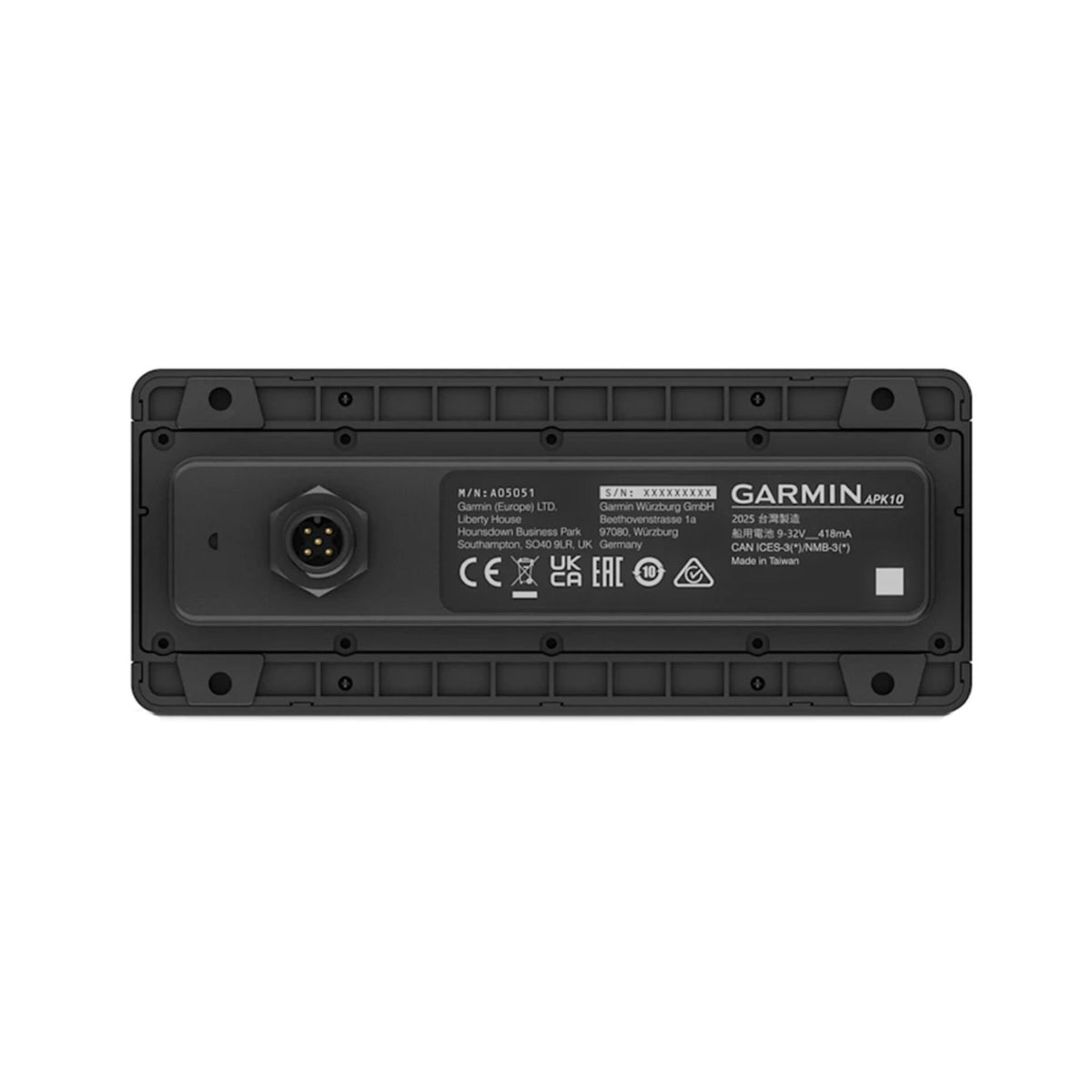

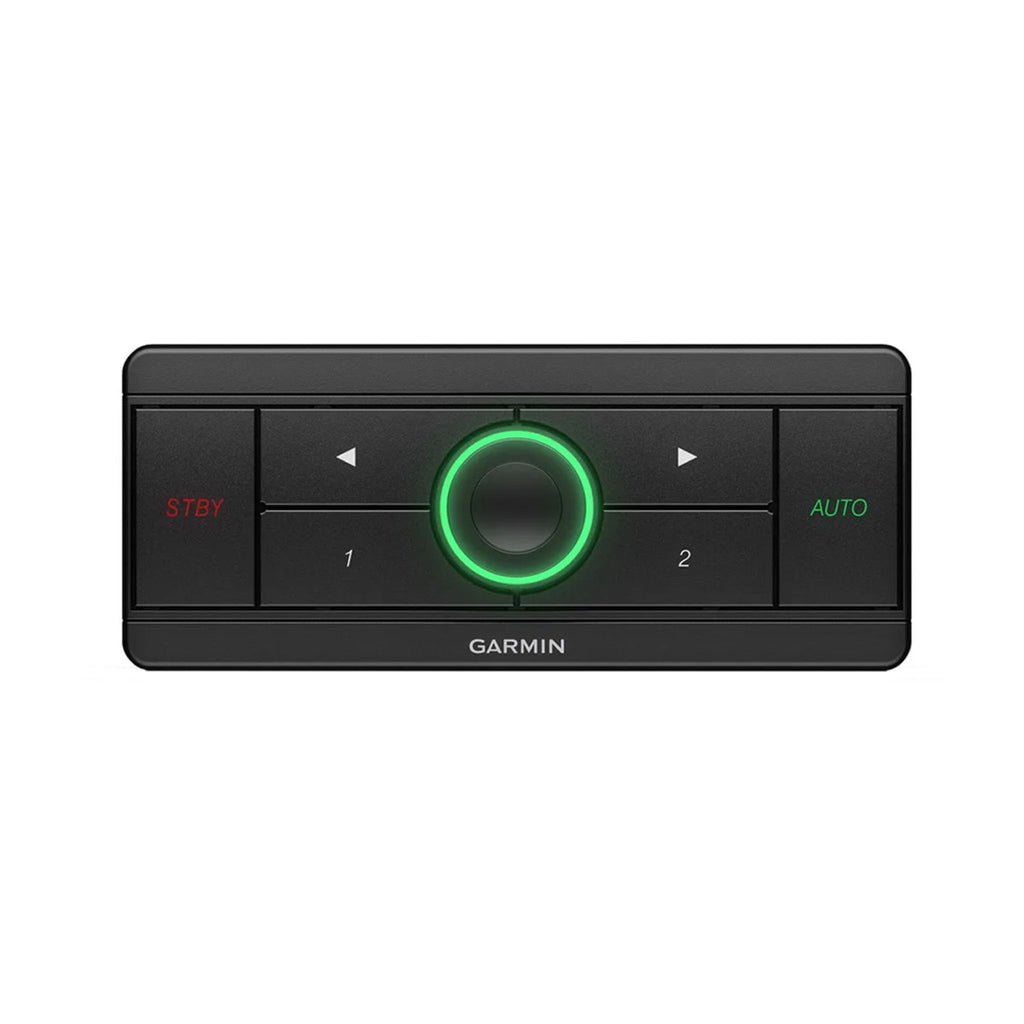

The Garmin APK™ 10 Autopilot Keyboard in horizontal orientation gives you direct, hands-on command of your Reactor™ 40 autopilot from the helm. An LED-encircled rotary knob delivers precise heading adjustments while its color ring reflects real-time autopilot status. Dedicated engage and standby buttons let you start and stop the autopilot without hunting through menus, and multipurpose buttons can be configured for additional control functions to match your vessel type and preferences. The low-profile housing is sized to align flush with a GHC 50 instrument or GPSMAP® chartplotter, and a single NMEA® 2000 port and cable handles both integration and power — no separate power wiring needed. Flush and surface mounting hardware are included to fit new or existing helm layouts.

In the Box:

• APK 10 autopilot keypad (horizontal)
• Backbone/drop cable (2 m) and T-connector for the NMEA 2000® network
• Mounting hardware (flush and surface)
• Documentation

Specifications:

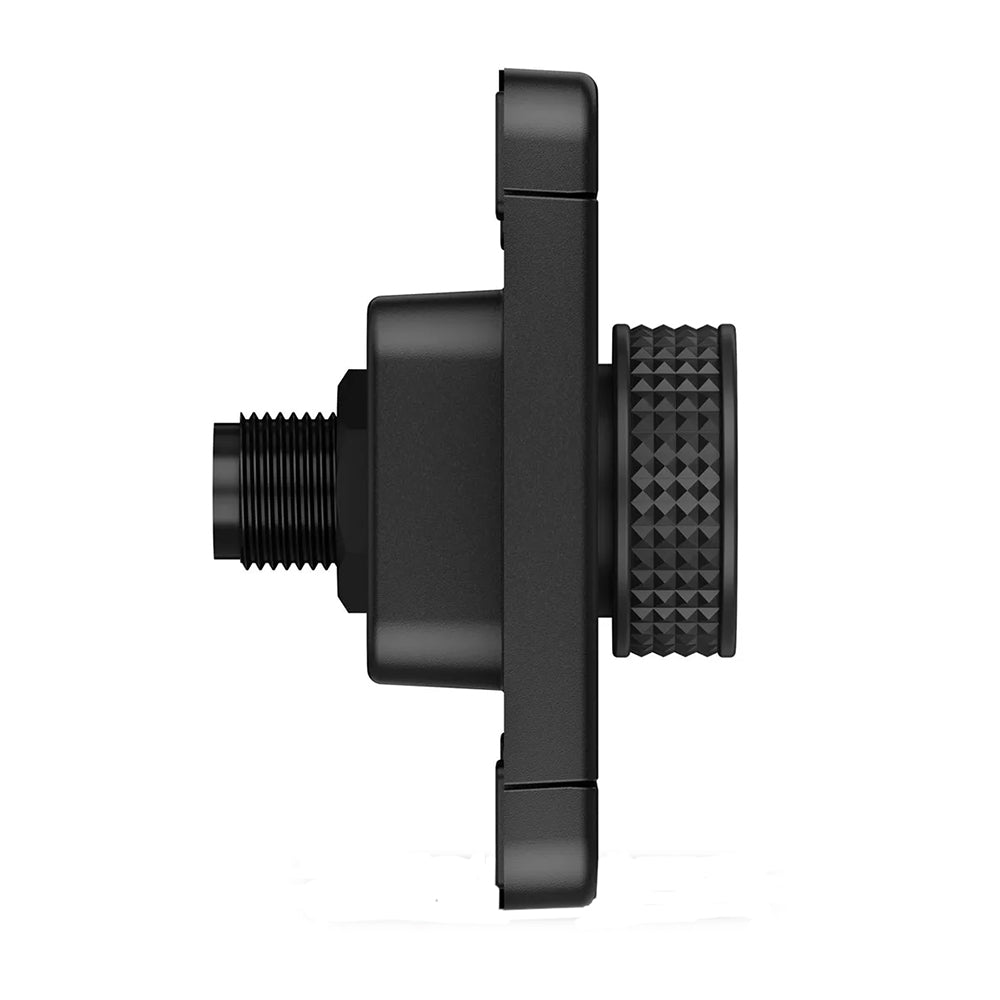

• Dimensions (W x H x D) — Flush mount: 5.5" x 2.3" x 0.28" (139.7 x 57.4 x 7.0 mm); Surface mount: 5.5" x 2.3" x 0.65" (140.7 x 58.4 x 16.4 mm)
• Weight: 4.09 oz (116 g)
• Temperature range: 5° to 158°F (-15° to 70°C)
• Material: Fully-gasketed, high-impact plastic
• Water rating: IPX7
• Compass-safe distance: 4.5" (114 mm)
• Power input: Supplied via the NMEA 2000® network

Resources:

• Installation Guide (PDF)
