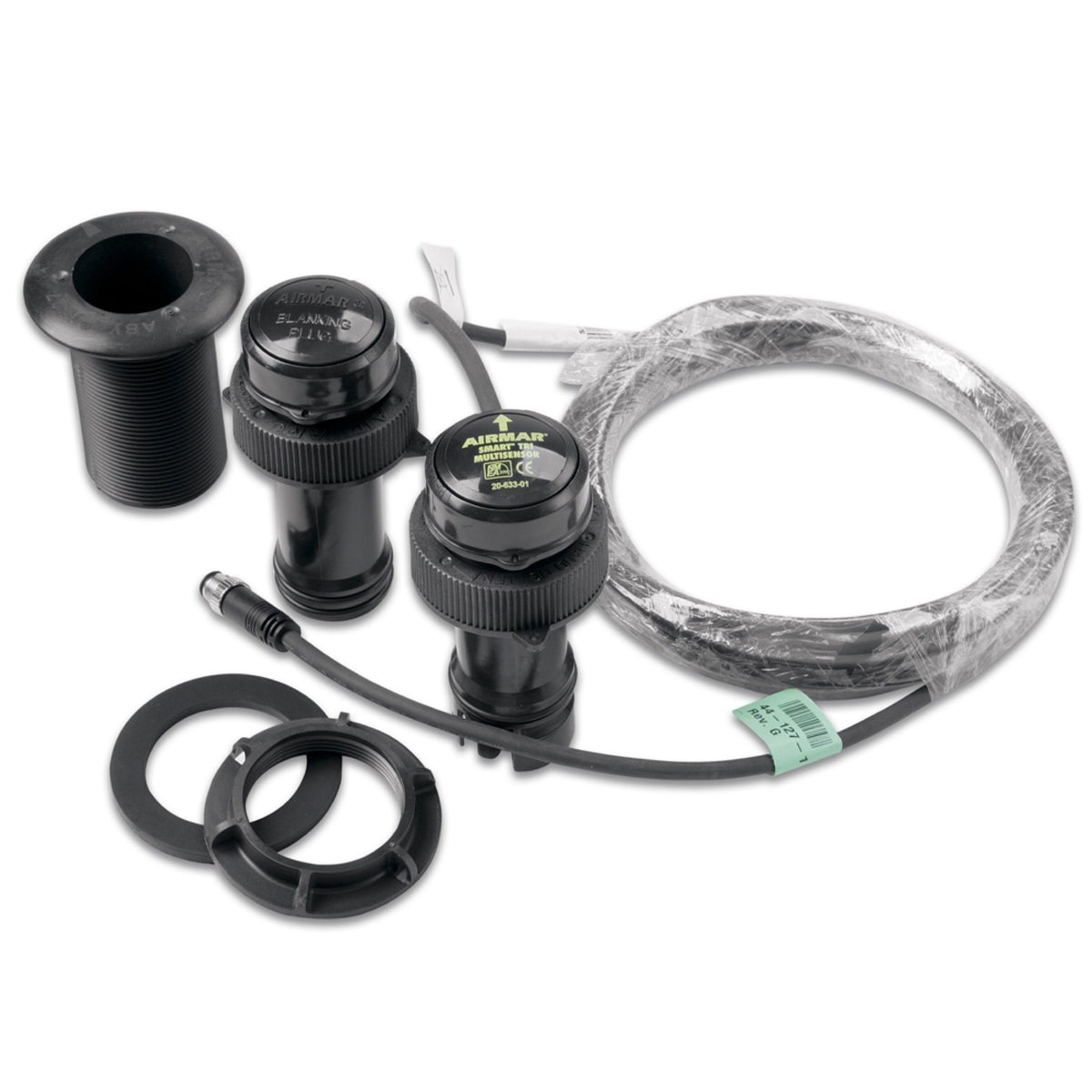

The Airmar DT800 is a plastic thru-hull smart sensor transducer built to feed depth and water temperature data directly into a NMEA 2000 network. Its 20-degree tilt angle makes it a natural fit for hulls with deadrise angles between 16 and 24 degrees, while the 235 kHz operating frequency and 12-degree beamwidth deliver dependable depth readings down to 600 feet.

Specifications:

• Transducer type: Smart thru-hull mount
• Data output: Depth and temperature
• Network interface: NMEA 2000
• Power: 100 W
• Maximum depth: 600 ft
• Operating frequency: 235 kHz
• Beamwidth: 12 degrees
• Deadrise range: 16 to 24 degrees
• Tilt angle: 20 degrees
• Housing material: Plastic
• Includes: Transducer and installation instructions
