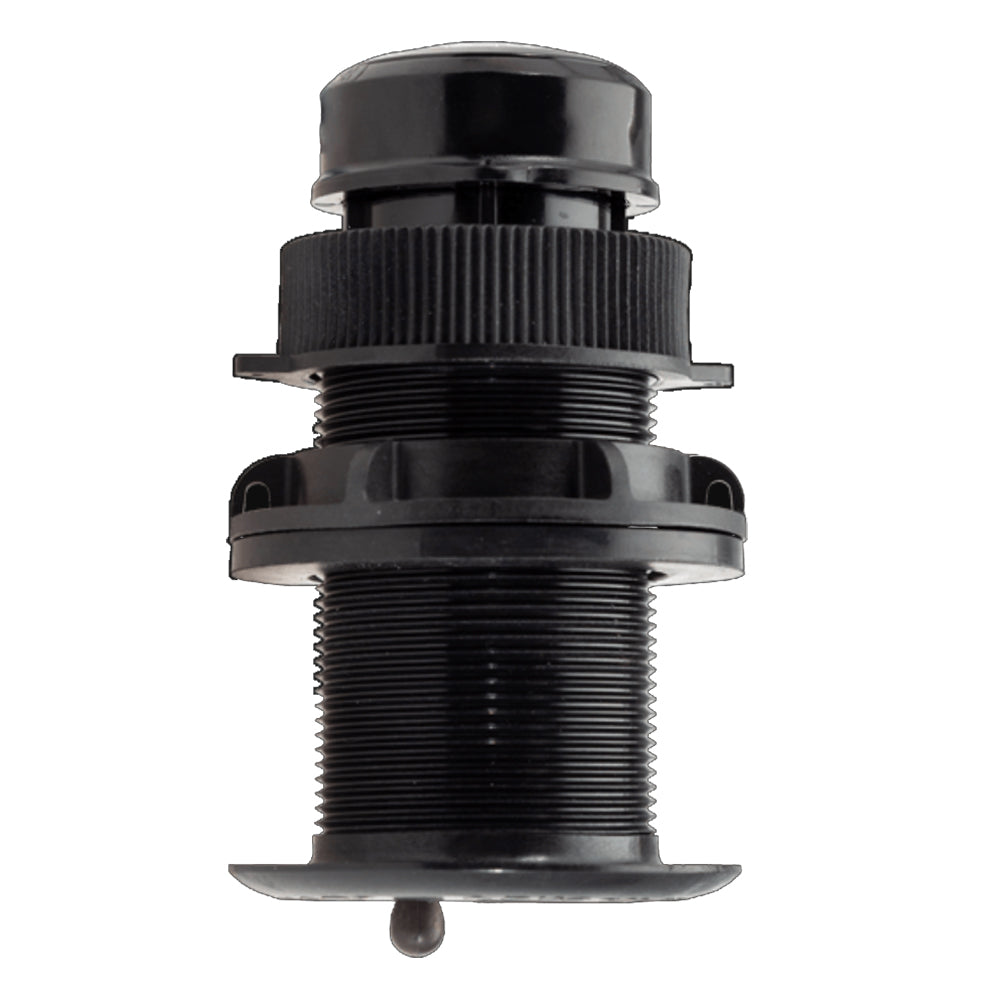

The Garmin Airmar DST 810 is a plastic thru-hull NMEA 2000 smart transducer engineered to deliver depth, speed, and temperature data alongside attitude sensing for heel/trim and pitch/roll. Operating at 235 kHz, it minimizes mutual interference with other echosounders aboard and reads bottom to 300 feet. A 5 Hz water speed output keeps speed readouts smooth on compatible chartplotters and displays. The wide 10x44-degree fan-shaped beam reliably finds bottom on steep deadrise hulls and heeling sailboats, while built-in Bluetooth connectivity pairs with the Airmar Cast app for straightforward sensor calibration management.

Specifications:

• Frequency: 235 kHz
• Power: 100 W
• Beamwidth: 10 x 44 degrees
• Maximum Depth: 300 ft
• Sensing: Depth, Speed, and Temperature
• Connection Type: NMEA 2000
• Supported Deadrise/Transom Angles: 0 to 22 degrees
