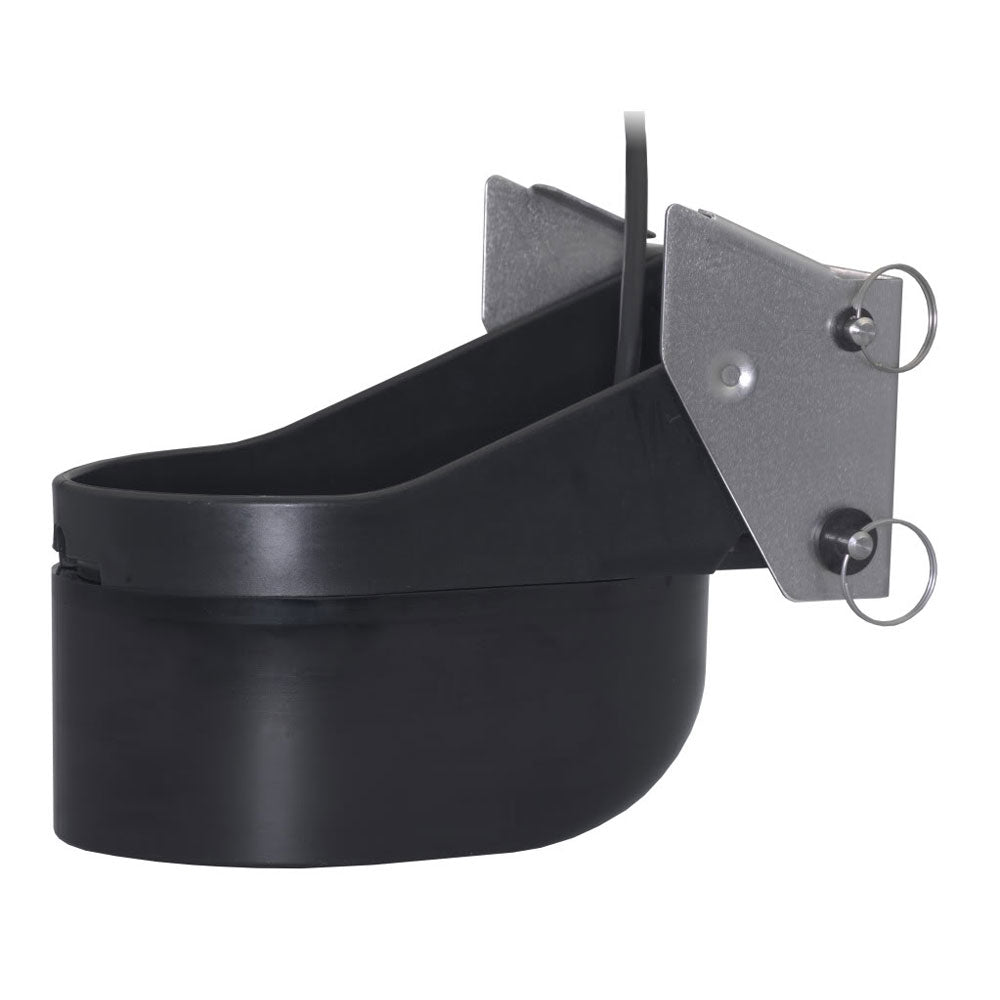

The Furuno TM260 brings the proven broadband performance of the B260 series to a transom-mount form factor, delivering sharp, detailed sonar imagery for serious bottom and blue-water fishermen. The large 200 kHz element combined with a seven-element 50 kHz array excels at separating bait from game fish and detecting groundfish holding close to the bottom. A streamlined kick-up bracket handles transom angles from 3° to 21° and is rated for speeds up to 30 knots (35 MPH) — making it a capable choice for trailered boats in the 8 m to 12 m (25′ to 40′) range running outboards or I/O drives.

Specifications:

• Mount type: Transom mount with high-performance bracket
• Frequency: Dual — 50 kHz (7-element array) and 200 kHz (large single element)
• Beam angle: 19° at 50 kHz; 6° at 200 kHz
• Power output: Compatible with 600 W or 1 kW sounders
• Maximum depth: Up to 800 m (2,625 ft) for bottom and wreck fishing
• Maximum speed rating: 30 knots (35 MPH)
• Recommended vessel size: 8 m to 12 m (25 ft to 40 ft) trailered boats with outboards or I/O drives
• Transom angle accommodation: 3° to 21°
• Sensors: Depth and fast-response water-temperature sensor
• Bracket: Kick-up assembly locks in the up position; will not damage the transom
• Housing material: Urethane
• Fishing applications: Blue-water trolling (50 kHz); deep-water bottom and wreck fishing

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
