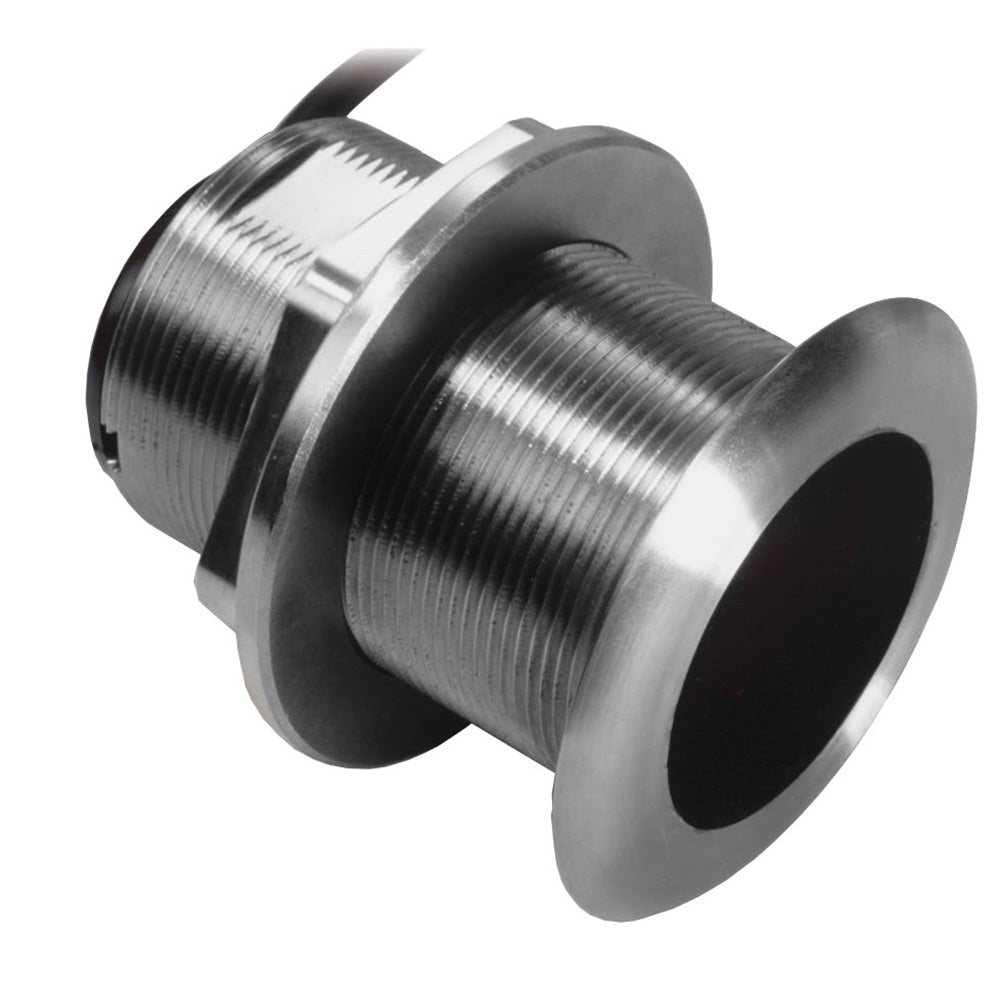

The Furuno SS60-SLTD/20 is a stainless steel thru-hull transducer engineered for hulls with a deadrise angle between 16° and 24°. Rather than requiring a wedge or filler block, the element inside the housing is pre-angled 20° to compensate for hull deadrise. An arrow molded into the top of the housing indicates proper keel-side orientation — critical whether the transducer is mounted to port or starboard — ensuring the tilted element sits at the correct angle once installed. Built-in water temperature sensing and dual-frequency operation make this a capable choice for anglers and mariners running compatible Furuno sounders.

Specifications:

• Model: SS60-SLTD/20
• Power: 600 Watts
• Frequencies: 50/200 kHz
• Beam Angles: 45° (50 kHz) / 12° (200 kHz)
• Housing Material: Stainless Steel Thru-Hull
• Built-In Temperature Sensor: Yes
• Tilt Angle: 20° (accommodates 16°–24° deadrise)
• Cable Length: 30 ft
• Connector: 10-Pin

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
