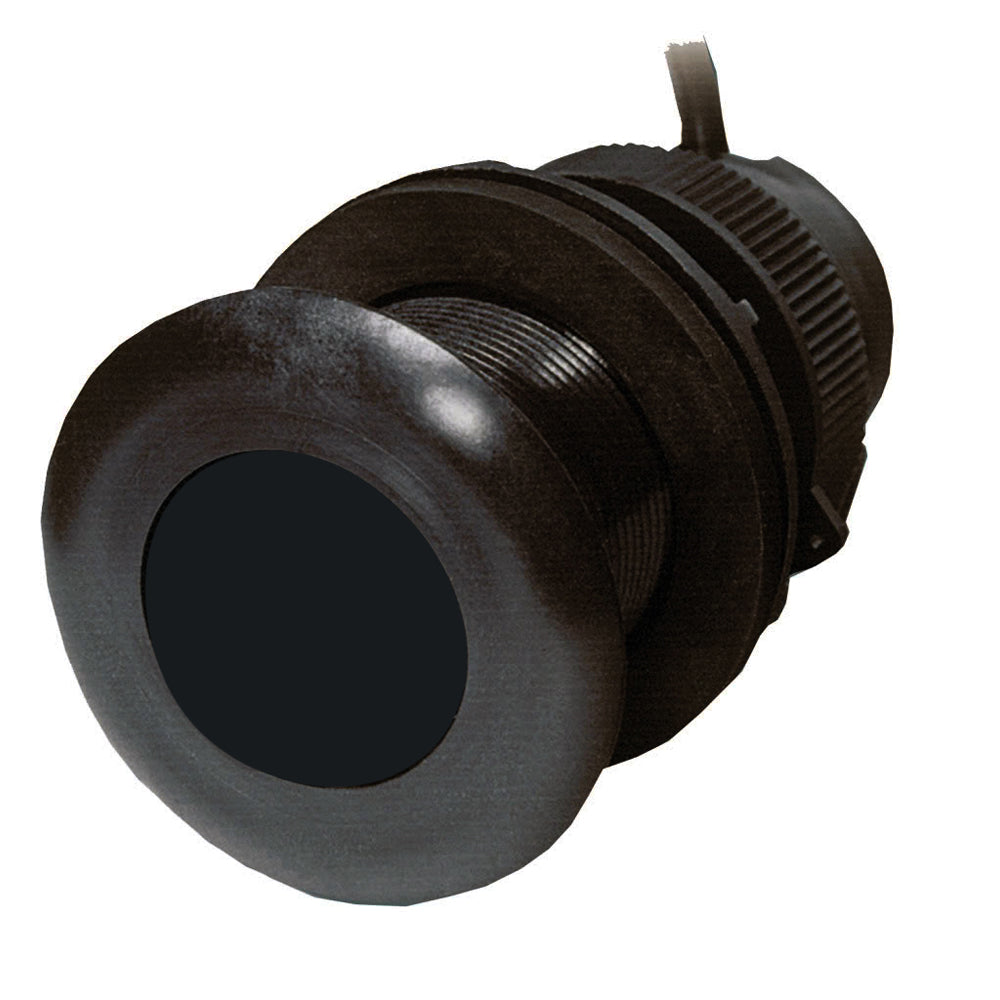

The Furuno DT-800PSF Retractable Smart Sensor combines depth and temperature sensing into a single thruhull fitting, requiring only one hull penetration. Designed as a NMEA 2000 device, it works with the FI50 TH D/T instrument and features a 12° beam angle capable of reading bottom on high-deadrise hulls and sailboats. The near-flush profile and retractable insert keep installation clean and servicing straightforward.

Specifications:

• Model: DT-800PSF Retractable Smart Sensor
• Frequency: 235 kHz
• Functions: Depth and temperature (accuracy ±1°)
• Cable: 6-meter with 5-pin NMEA 2000 connector
• Beam angle: 12°
• Hull protrusion: Only 5 mm (3/16") beyond hull surface for minimal drag
• Insert: Removable for quick service or off-season storage
• Self-jacking cap for easier insert removal
• Housing: Molded plastic P17
• Protocol: NMEA 2000

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
