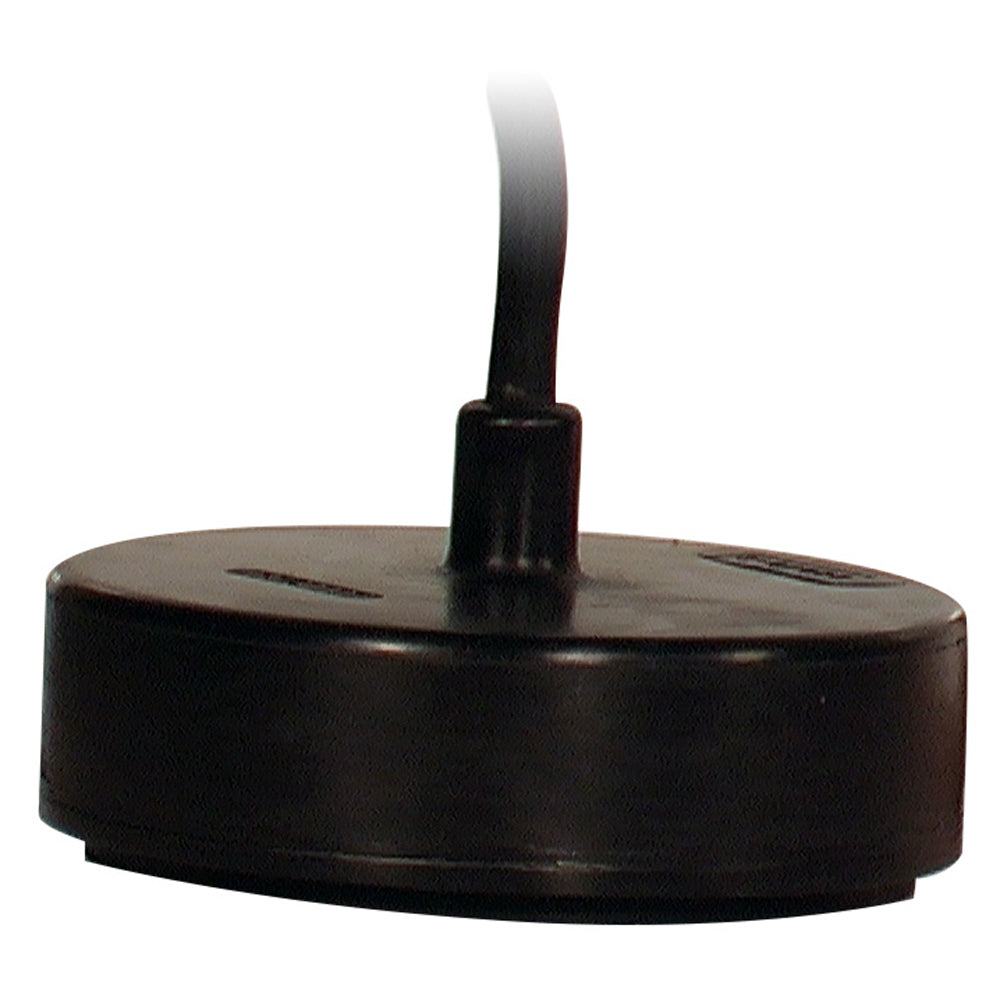

The Furuno CA200B-12H is a tank-mounted, rubber-coated transducer built for demanding offshore applications where a narrow, high-powered sonar signal is essential. Operating at 200 kHz with a tight 4-degree beam angle and 5 kW of output power, it delivers precise bottom discrimination and target separation in deep water. The 15-meter cable ships without a connector, allowing direct termination to your compatible Furuno sounder.

Specifications:

• Output Power: 5 kW
• Frequency: 200 kHz
• Beam Angle: 4 degrees
• Weight: 11 lbs.
• Construction: Rubber coated, tank-mounted
• Cable Length: 15 meters, no connector provided

Resources:

• Quick Start Guide (PDF)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
