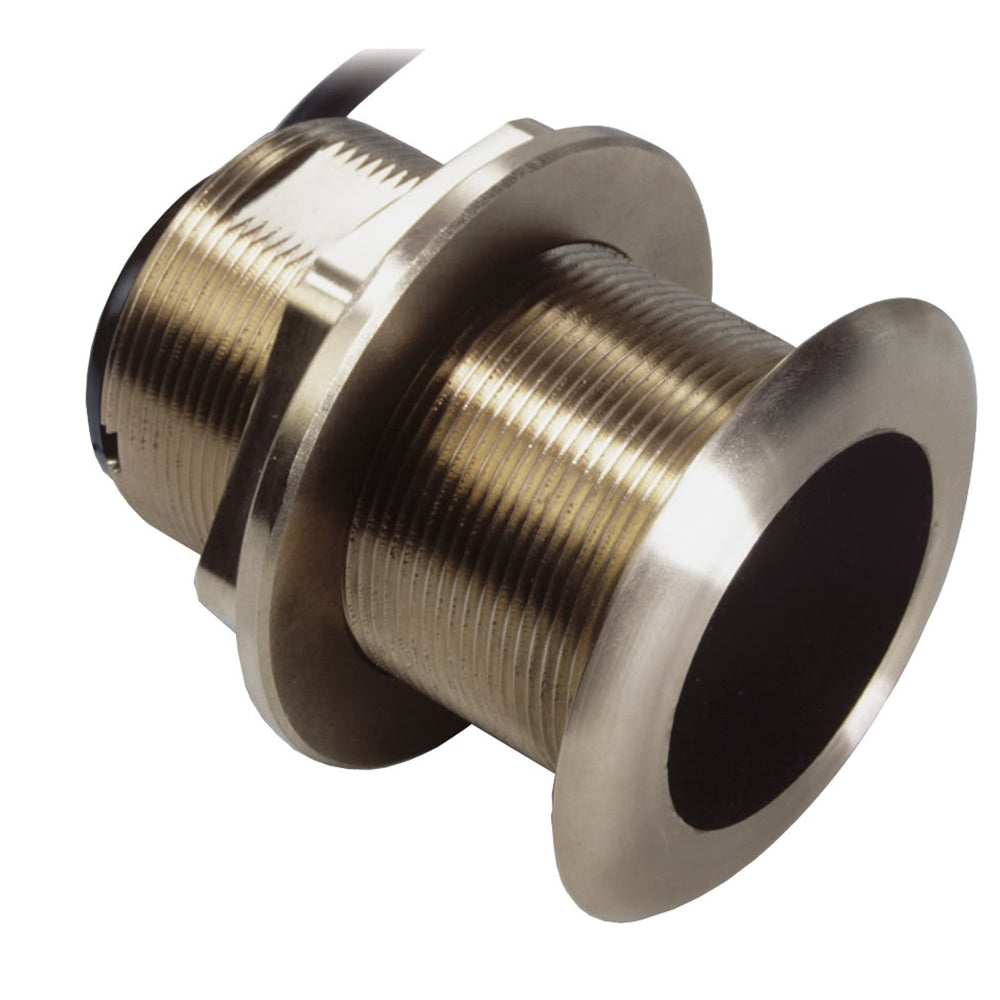

The Furuno B60-20 is a bronze through-hull transducer engineered for hulls with deadrise angles between 16° and 24°. Its internally tilted ceramic element eliminates the need for a deadrise fairing block by providing built-in compensation, projecting a true vertical beam for precise, reliable depth returns. The nearly flush profile extends only 5 mm (3/16") below the hull, keeping drag to a minimum.
Specifications:
- Model: B60-20
- Connector: Furuno 10-pin
- Element tilt: 20° (designed for 16°–24° deadrise angles)
- Housing material: Bronze
- Frequencies: 50/200 kHz
- Power output: 600W RMS
- Performance class: Mid-performance
- Functions: Depth and temperature
- Hull protrusion: 5 mm (3/16")
- Fairing block required: No
