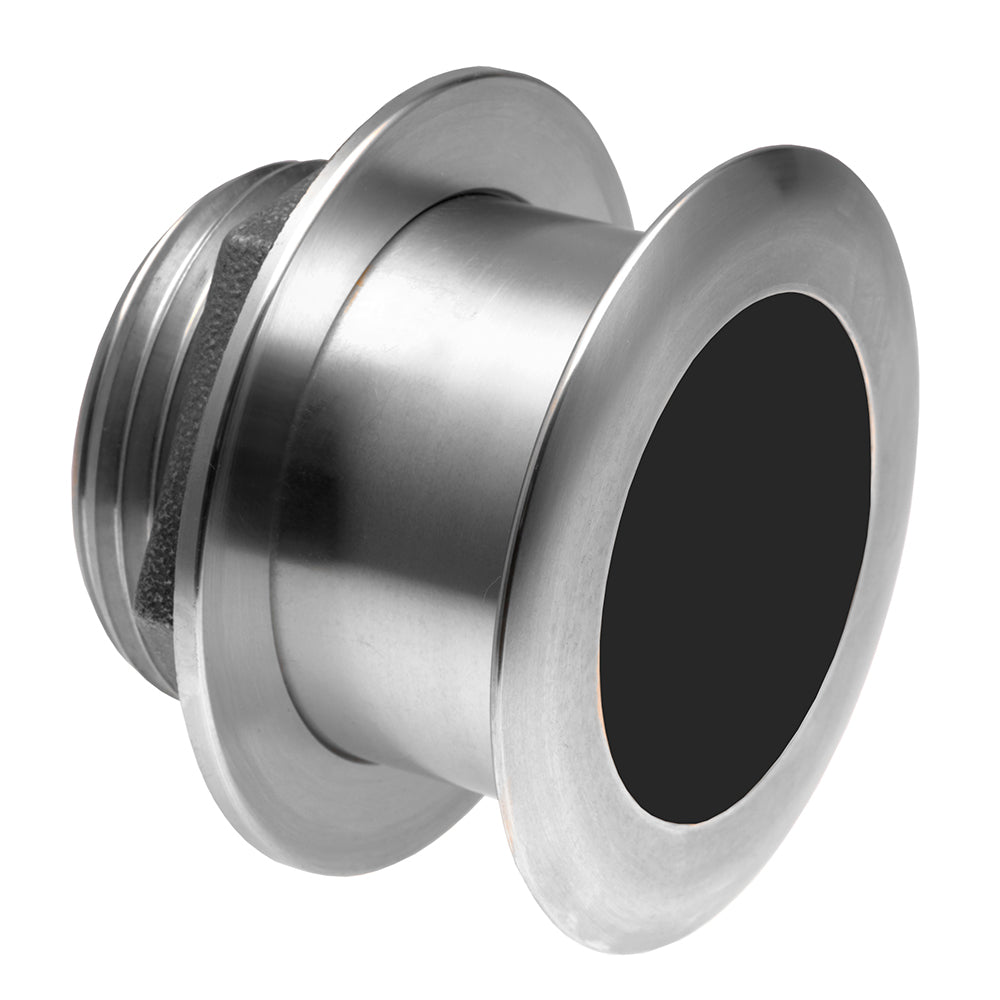

The Furuno 556TID-LTD/12 is a stainless steel thru-hull transducer built around an Airmar SS164 housing style with a 12-degree tilted element. Designed for vessels with a deadrise angle between 8° and 15°, the tilted internal element compensates for hull angle so the sonar signal fires true. An arrow molded into the top of the housing must point toward the keel during installation — whether mounted to port or starboard — ensuring the element is oriented correctly for accurate depth readings. The 1 kW output supports both 50 kHz and 200 kHz frequencies with a 10-pin connector.

Specifications:

• Model: 556TID-LTD/12
• Housing: Stainless steel thru-hull, Airmar SS164 style
• Power output: 1 kW
• Frequencies: 50/200 kHz
• Beam angles: 20° (50 kHz) / 6° (200 kHz)
• Element tilt: 12 degrees
• Compatible deadrise range: 8° to 15°
• Includes temperature sensing
• Cable length: 30 feet
• Connector: 10-pin

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
