Furuno 525TID-TMD TM Transducer w/Temp, 1kW (10-Pin)
Furuno 525TID-TMD TM Transducer w/Temp, 1kW (10-Pin)
Capt. Joel will email you the moment this lands. No spam, one message.
Similar electronics we have in stock now
Garmin ECHOMAP Ultra 2 LiveScope Plus Bundle
$2,699.99 · In stock
Garmin LiveScope™ Plus System w/GLS 10™ & LVS34 Transducer
$1,647.99 · In stock
Raymarine EV-150 Evolution Core Pack - No Drive
$1,699.99 · In stock
Not sure what fits your boat? Call (360) 504-8112

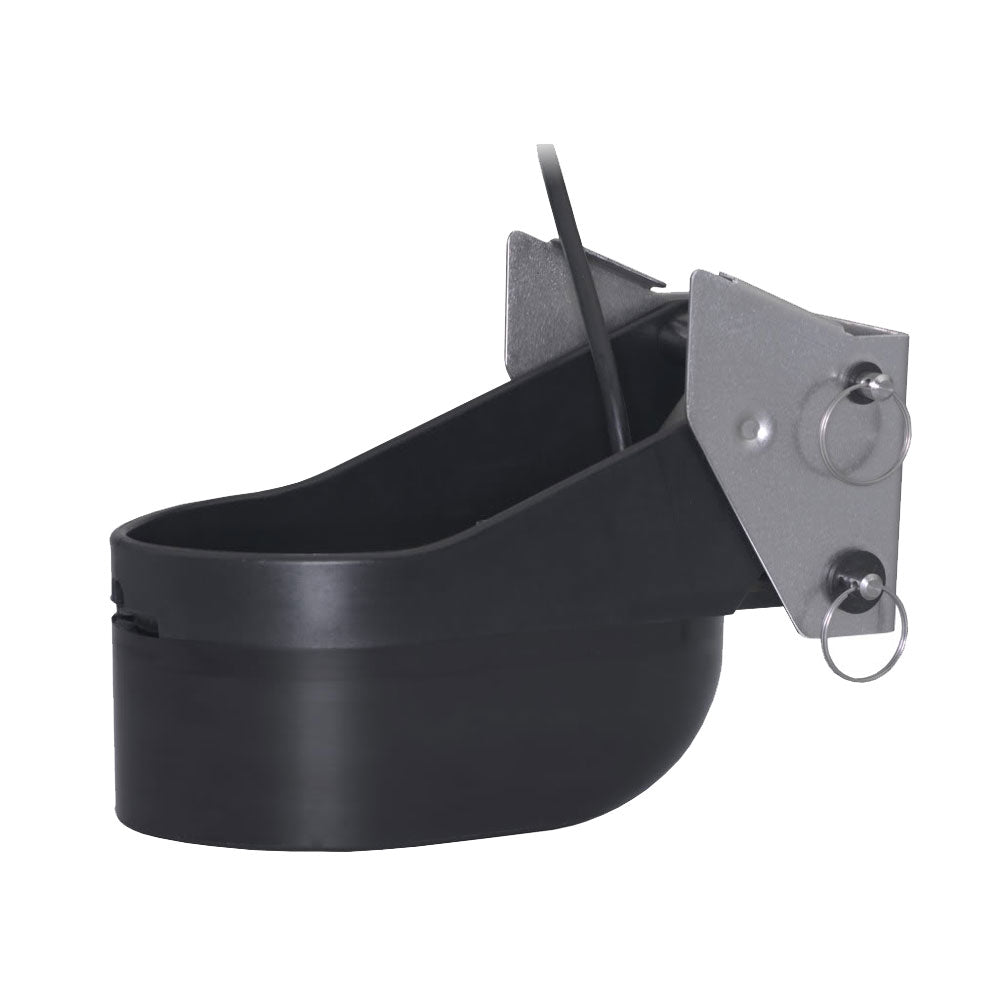

The Furuno 525TID-TMD is a transom-mount transducer built around the M258 element, delivering 1 kW of power across dual 50/200 kHz frequencies. The wide/narrow beam configuration gives you flexible target separation at depth, while the integrated temperature sensor adds water-temp data without a separate probe. A 10-meter cable with a 10-pin connector provides a clean, ready-to-install connection to compatible Furuno sounders.
Specifications:
- Transducer Element: M258 with Transom Mount Bracket
- Power: 1 kW
- Frequencies: 50/200 kHz
- Beam Angles: 14x23 degrees (50 kHz) / 3x5 degrees (200 kHz)
- Mount Type: Transom Mount
- Temperature Sensor: Included
- Cable Length: 10 meters
- Connector: 10-Pin
