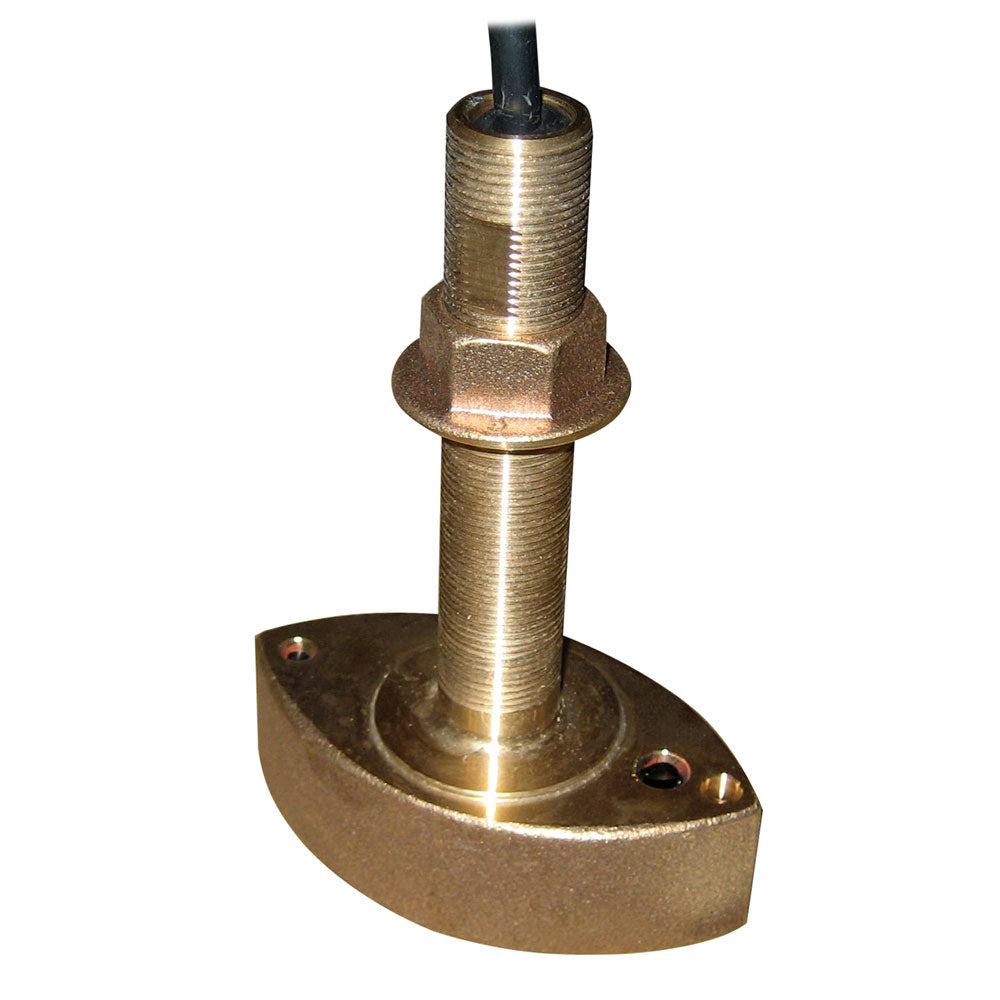

The Furuno 525T-BSD is a bronze thru-hull transducer built for dependable dual-frequency depth sounding with integrated water temperature sensing. Designed for compatibility with 10-pin Furuno fishfinders and chartplotters, it delivers 600 watts of power across both 50 kHz and 200 kHz frequencies, giving you wide and narrow beam coverage in a single unit. The 30-foot cable provides generous routing flexibility during installation.

Specifications:

• Power output: 600 watts
• Frequencies: 50/200 kHz
• Beam angles: 45 degrees (50 kHz) / 15 degrees (200 kHz)
• Construction: bronze thru-hull with integrated temperature sensor
• Cable length: 30 feet
• Connector: 10-pin

Resources

• Product Brochure (PDF)
