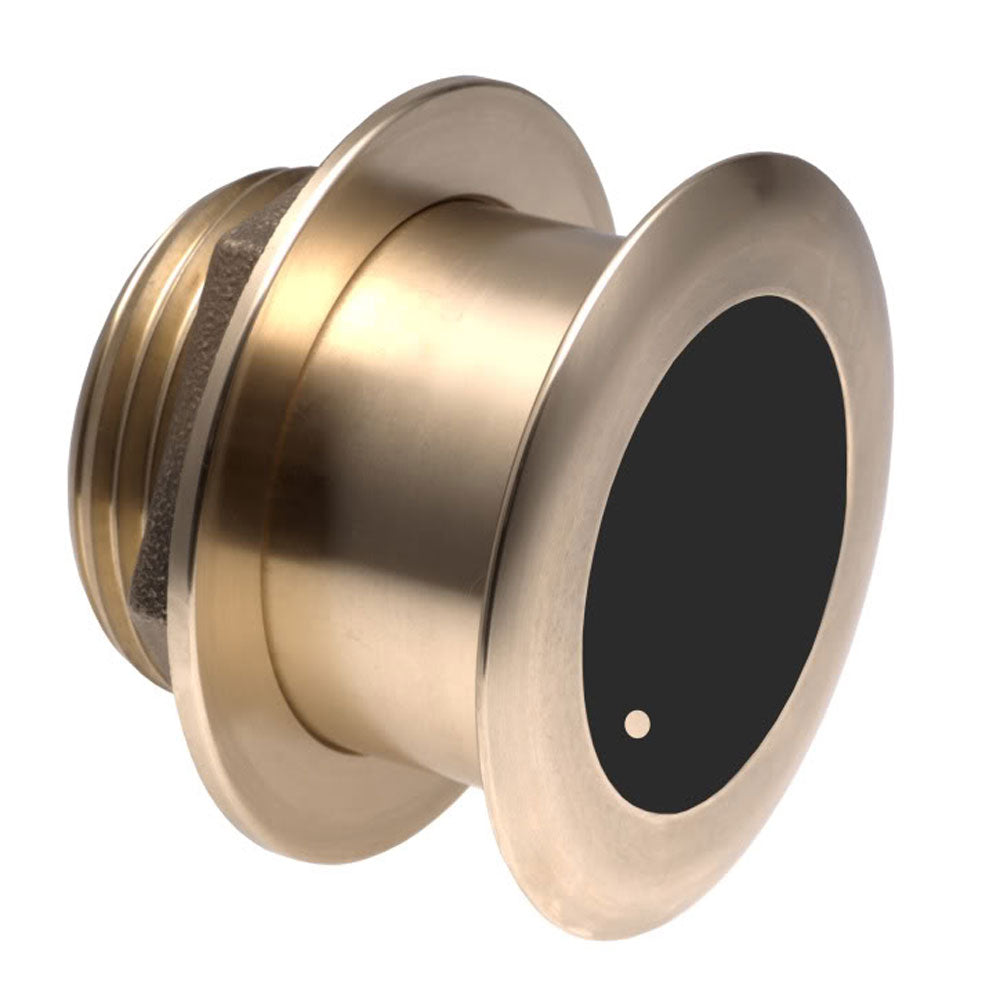

The Furuno B164 Tilted Element™ transducer delivers 1kW of power in a low-profile, flush-mount bronze housing — no fairing required. Airmar's Tilted Element™ design angles the ceramic arrays internally so the beam fires straight down regardless of hull deadrise, keeping maximum sonar energy directly beneath the vessel. The housing protrudes less than 6.35 mm (0.25") below the hull, making it safe to rest on trailer rollers and bunks without risk of damage — an ideal solution for fast, trailered tournament sport fishing boats.

Specifications:

• Model: B164 Tilted Element™
• Beam angle: 20°
• Frequencies: 50/200 kHz
• Power output: 1 kW RMS
• Sensing: Depth and temperature
• Housing material: Bronze
• Hull protrusion: Less than 6.35 mm (0.25")
• Mount style: Flush-mount, no fairing required
• Trailer-safe: Compatible with roller and bunk trailers

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
