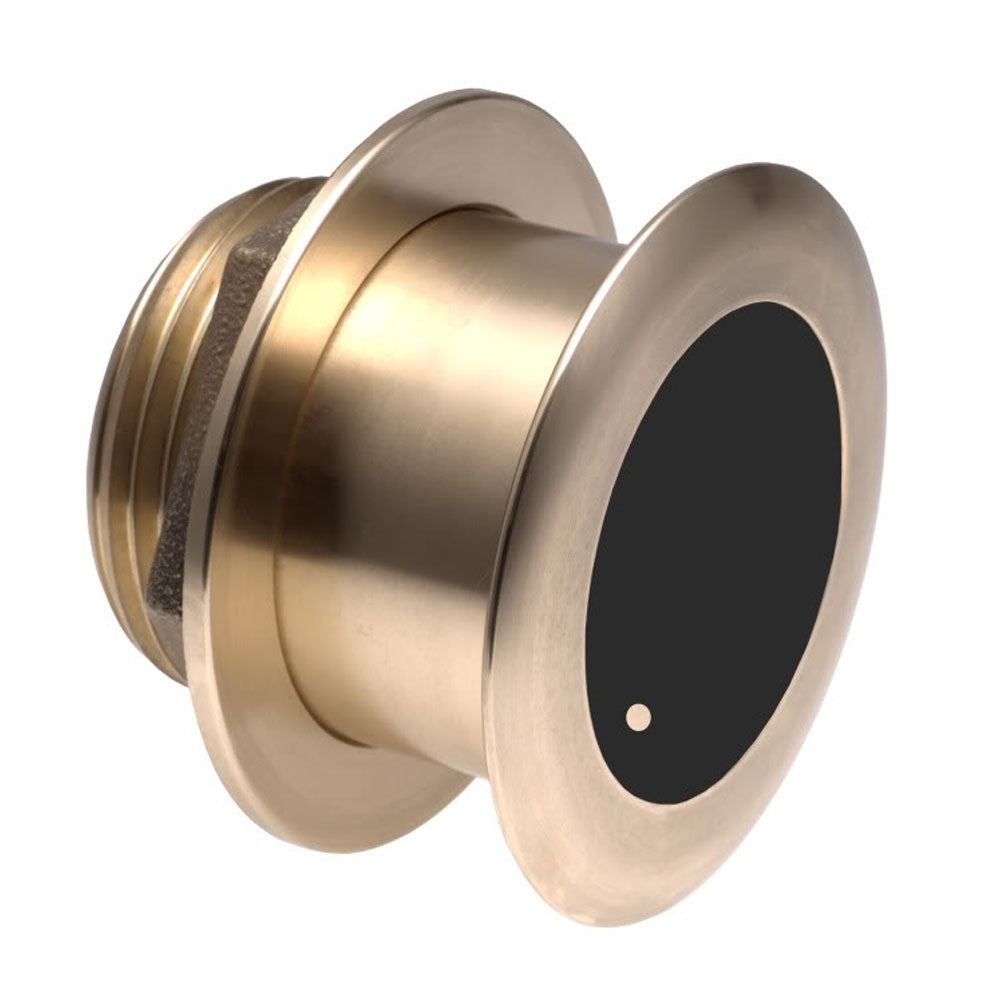

The Furuno B164 Tilted Element transducer brings 1kW of power to a flush-mount bronze housing that clears your hull by less than 6.35 mm — no fairing required. Airmar's Tilted Element technology angles the ceramic array inside the housing so the beam projects straight down, putting maximum sonar energy directly beneath the vessel. The low-profile design sits safely on trailer rollers and bunks without risk of damage, making it a strong choice for fast, trailered tournament sport fishing boats running 50/200 kHz dual-frequency.

Specifications:

• Model: B164 Tilted Element, 10-pin connector
• Frequency: 50/200 kHz
• Power: 1 kW RMS
• Beam angle: 12°
• Sensing: Depth and temperature
• Housing material: Bronze
• Hull protrusion: Less than 6.35 mm (0.25 in) flush-mount
• Fairing required: No
• Trailer-safe: Compatible with rollers and bunks

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
