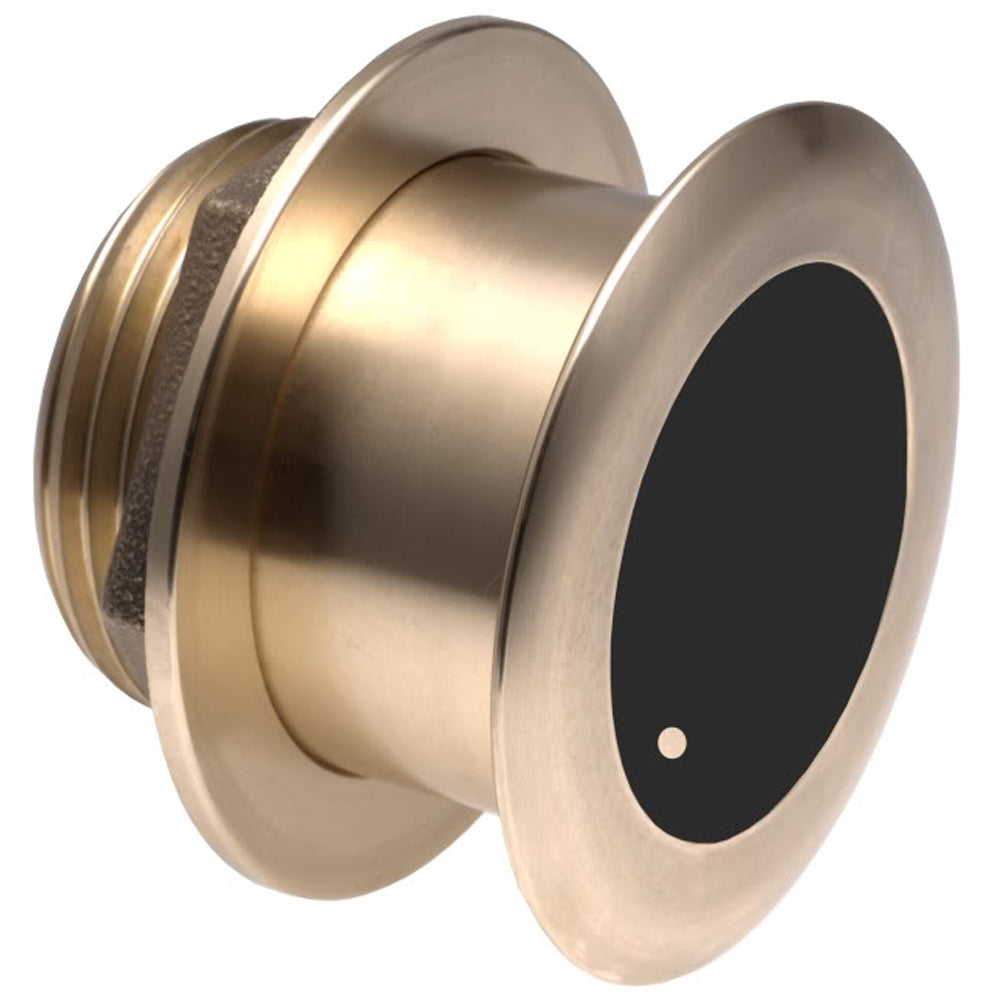

The Furuno B164 is a 1kW flush-mount bronze transducer built on Airmar's Tilted Element technology, designed for fast, trailered sport fishing vessels that can't accommodate a traditional fairing. The ceramic arrays are tilted internally to deliver a true vertical beam aimed directly beneath the hull, while the housing extends less than 6.35 mm beyond the hull surface — sitting safely on trailer rollers and bunks without risk of damage.

Specifications:

• Model: B164 Tilted Element
• Tilt angle: 0 degrees
• Power: 1 kW
• Frequencies: 50/200 kHz
• Functions: Depth and temperature
• Housing material: Bronze
• Mount style: Flush mount (no fairing required)
• Hull protrusion: Less than 6.35 mm (0.25 in)
• Trailer-safe: Compatible with trailer rollers and bunks

Resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
