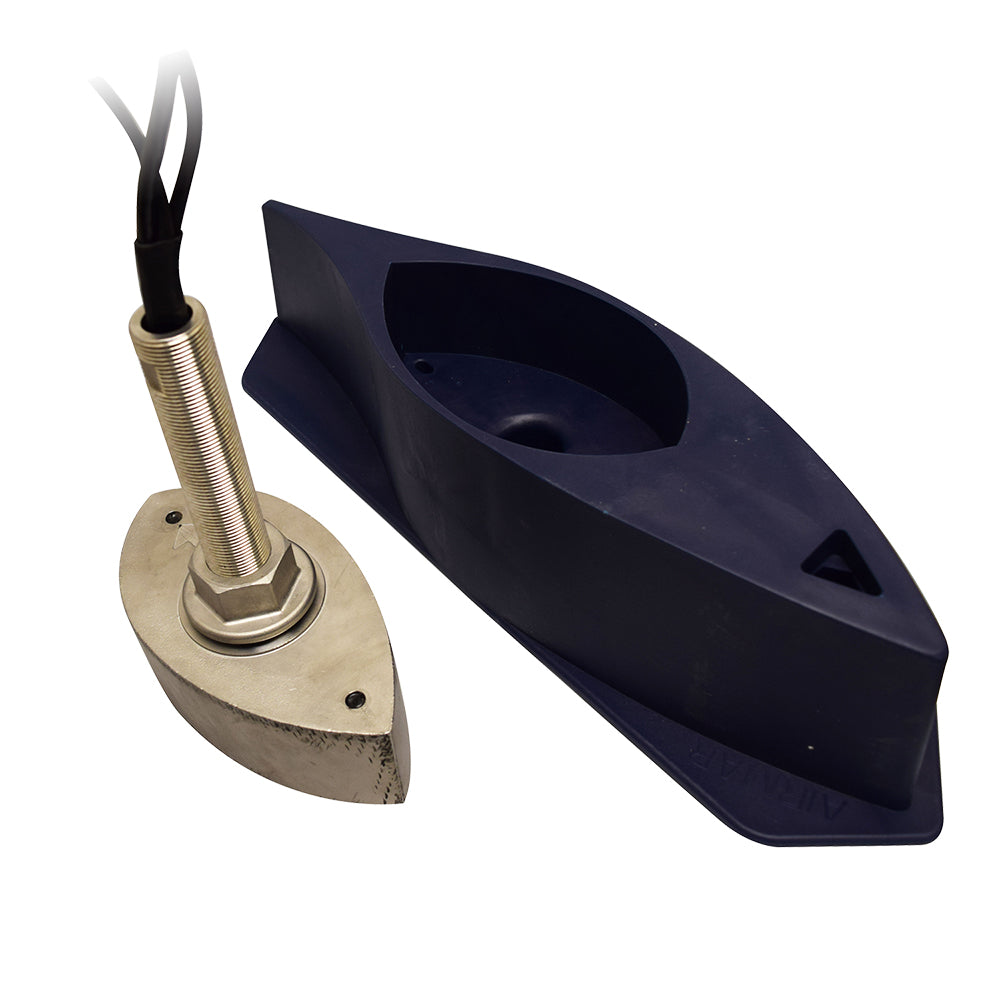

The Furuno 165T-50/200-SS260 is a stainless steel combination thru-hull transducer built for use with the DFF3D Multi-Beam Sonar system. It integrates DFF3D elements with 1kW 50/200 kHz sounder elements — equivalent to those found in an Airmar B164 — along with built-in temperature and motion sensors. Connecting to both the DFF3D and a single sounder, this combo unit reduces the cost and installation space that would otherwise be required for two separate transducers.

Specifications:

• Stainless steel thru-hull construction with high-speed fairing block
• Can be flush-mounted in keel without the fairing block
• DFF3D operating frequency: 165 kHz
• Sounder elements: 1 kW, 50/200 kHz, 20°/6° beam angles (equivalent to Airmar B164)
• Built-in motion sensor
• Built-in temperature sensor
• 12 m cables with 10-pin connector for sounder, 7-pin connector and pigtail cable for DFF3D
• Recommended for use with TZtouch2 or TZtouch/DFF1, and DFF3D installations

Resources

• Product Brochure (PDF)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
