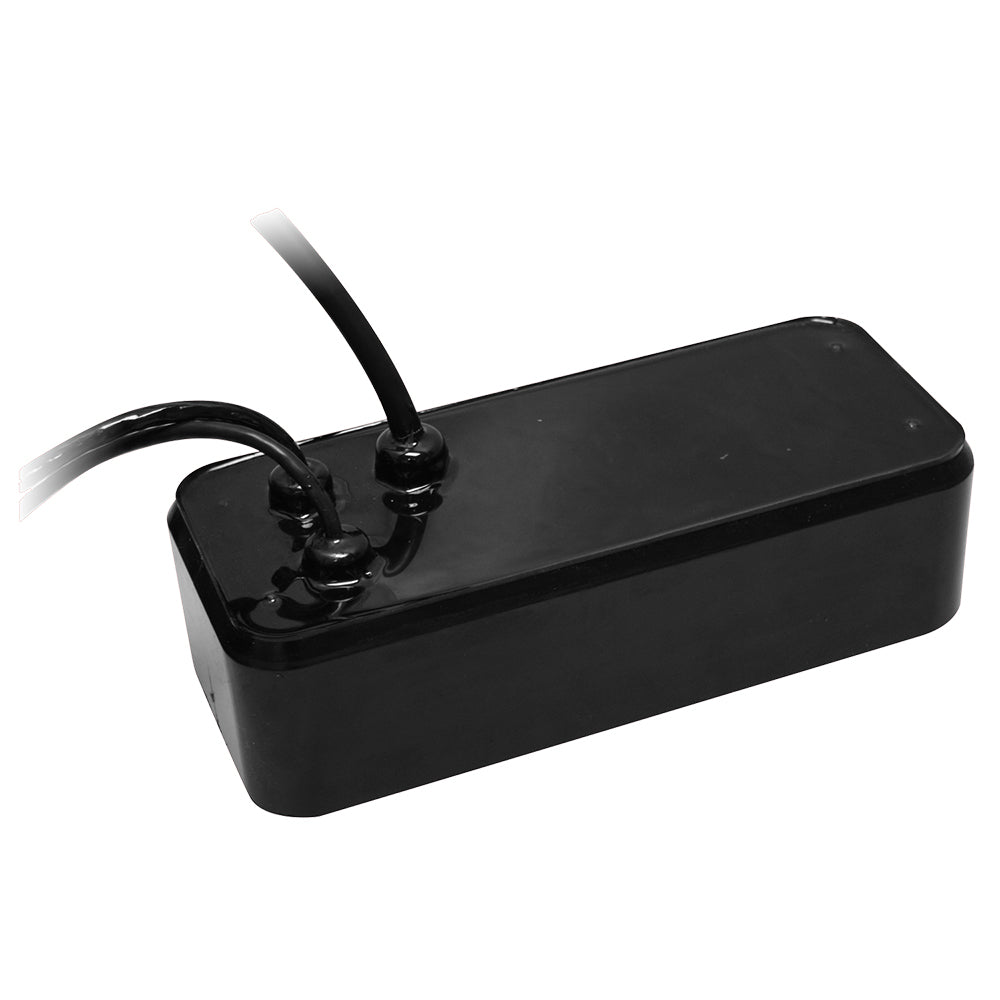

The Furuno 165T/265LH-PM488 combines DFF3D multibeam sonar elements with the same CHIRP elements found in the B265LH transducer, all housed in a compact pocket-mount enclosure measuring 12"L x 5"W x 3.5"H. Designed for paired use with a DFF1-UHD and DFF3D installation, this transducer integrates built-in motion and temperature sensors for a cleaner, more capable sonar setup.

Specifications:

• DFF3D operating frequency: 165 kHz
• Low CHIRP: 42 kHz to 65 kHz, beamwidth 25° to 16°
• High CHIRP: 130 kHz to 210 kHz, beamwidth 10° to 6°
• Bottom discrimination and Accu-Fish compatible (without TID)
• 12M cables included: pigtail cable for DFF1-UHD with 7-pin connector, and pigtail cable for DFF3D
• Recommended for DFF1-UHD and DFF3D installations
• Built-in motion sensor
• Built-in temperature sensor
• Housing dimensions: 12"L x 5"W x 3.5"H

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Resources

• Product Brochure (PDF)
