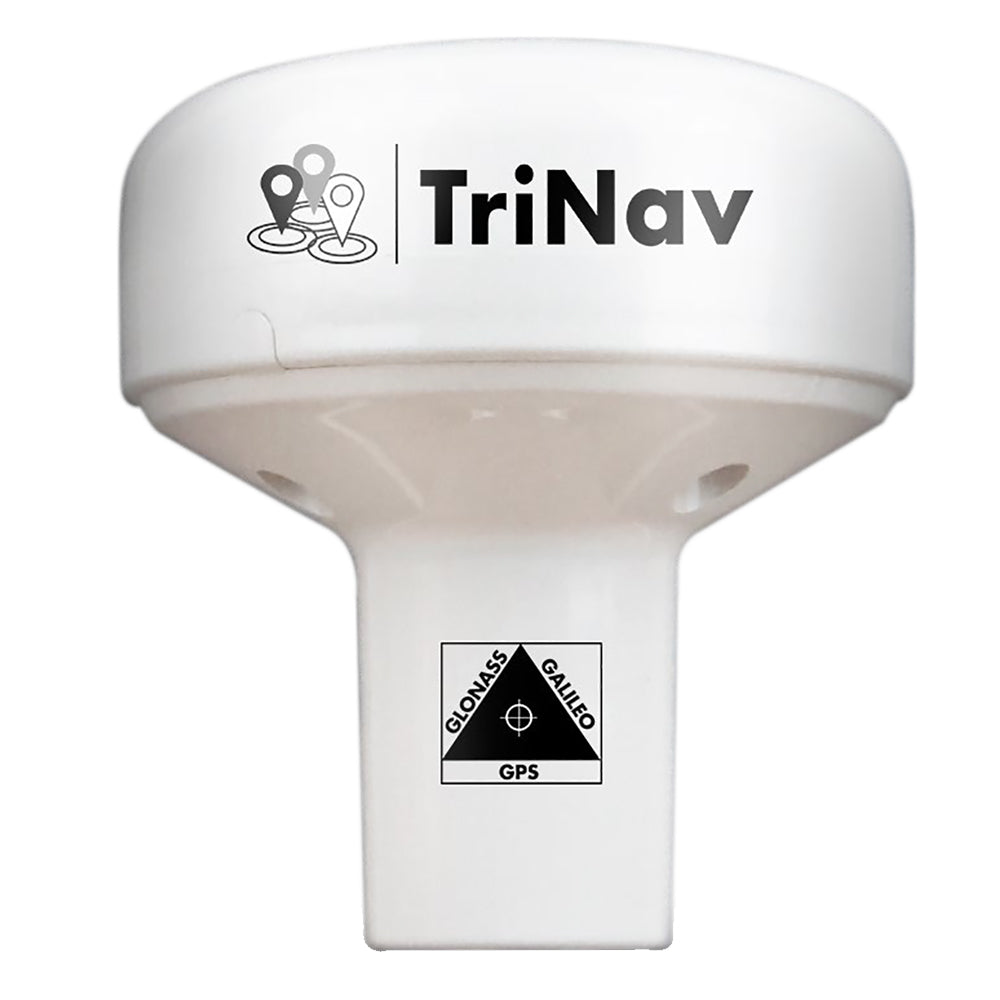

<p><strong>GPS160 TriNav Sensor with NMEA 0183 Output</strong></p><p>The GPS160, a high performance positioning sensor using GPS, Galileo and Glonass satellite systems for exceptional positioning accuracies and redundancies.</p><p>TriNav technology allows all three systems to be simultaneously utilized for navigation. The device can also be field programmed for a variety of modes such as single GNSS operation (eg Galileo only) as well as output configurations such as update rate, NMEA sentence structure etc</p><p>The GPS160 is available with a NMEA 0183 output (4800, 38400 and 115200 baud programmable) and a USB variant for PC, MAC and Linux. For NMEA 2000 systems, a bundle is available with iKonvert allowing easy and flexible NMEA 2000 installation without the need for cumbersome drop cables.</p><p>The GPS160 also support an external MOB switch or device. When activated, it creates a “synthesized” AIS SART MOB message on the NMEA output which can be interfaced with a local plotter for MOB identification.</p><p>The GPS160 supports GPS, Glonass and Galileo positioning. Our TriNav technology is used to combine signals from all three systems to compute the best possible fix accuracy and reliability.</p><p>Galileo is the global navigation satellite system (GNSS) that has been developed over the past two decades. It joins the GPS and GLONASS systems and offers mariners a 3rd reliable positioning source. It is planned to be fully operational in 2020.</p><p><strong>Features:</strong></p><ul><li>72 channel GPS, Glonassand Galileo GNSS positioning receiver</li><li>Typically sub 1m accuracy thanks to TriNav technology –combines all satellite data for optimum accuracy</li><li>Can be configured as dedicated GPS, Glonass or Galileo only device</li><li>Sophisticated anti-spoofing algorithm for robust positioning performance and interference rejection</li><li>Available in NMEA 0183, NMEA 2000 (with iKonvert interface)and wireless (with WLN10SM) variants</li><li>GPS160USB also available with USB connection for PC/MAC</li><li>User/field selectable 4800, 38400 and 115200 baud operation through simple internal DIP switches</li><li>Multiple formats of NMEA data output including datum information –user configurable through internal DIP switches</li><li>Up to 18Hz update rate (user selectable)</li><li>Ultra low (<20mA) power consumption at 12V DC</li><li>Input for MOB switch/system –when activated generates synthetic AIS MOB NMEA output to activate MOB position on plotter</li><li>Professional system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)</li><li>Puck installation or fits 3rd party industry standard 1” x 14 TPI threaded mount</li></ul> <!--- cis2:m2lumJ1t --->
