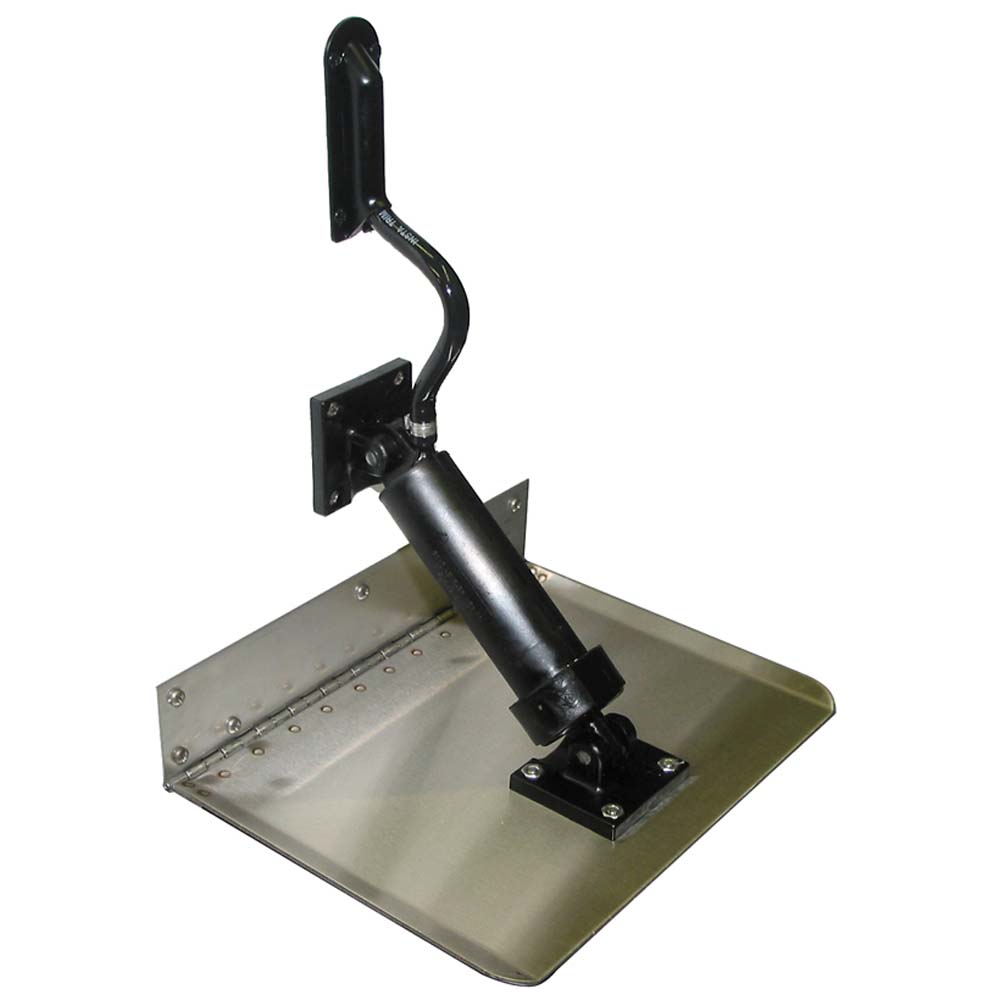

The Boat Leveler 18" x 8" hydraulic trim tab set is built around purpose-engineered components -- from a high-pressure bypass pump to fiberglass-reinforced nylon cylinders -- giving powerboat operators precise, reliable attitude control at any speed. Every part of the system is designed to work together, with corrosion-resistant materials and durable construction throughout.

Specifications:

• Trim Tabs: 12-gauge 304 stainless steel; available in standard and custom lengths; guaranteed against electrolysis; Insta-Trim hinges minimize spray; compatible with transom or bottom mounting
• Wiring: Color-coded, 25–40 ft lengths with quick-connect fittings; meets federal standards for heat resistance, pull strength, and insulation
• Solenoids: Custom-designed for Insta-Trim Boat Leveler; epoxy-sealed and humidity-resistant to prevent shorts; locks tabs in any position to eliminate driftback; barb-type hose fittings for tight, secure connections
• Motor: Coated windings with thermal overload protection against heat and amperage build-up; 1¾" stack windings; top-mounting design eliminates oil leakage; secured with stainless steel nuts and bolts; easily disassembled
• Brackets: Swivel-type design allows cylinders to be mounted and adjusted to any angle; knockout pins act as shear pins if a tab strikes an object
• Pump: Engineered exclusively by Insta-Trim; built-in bypass factory-set at 400 PSI with tolerance held to .00025; circulates oil to keep amperage at or below 16A
• Motor Cover: 4½" D × 6" W × 11" H high-impact ABS plastic; integrated oil reservoir; mounts with two screws; front-located filler; protects motor from wash-down
• Cylinders: Impact-resistant, fiberglass-reinforced nylon; UV-resistant; dual expanding-type seals plus O-ring for high- and low-pressure leak prevention; barbed fittings with inserted tubular rod to prevent hose blow-off; stainless steel spring retracts cylinder when stationary
• Hose: Nylon-reinforced webbing with protective PVC coating; 2,000 lb. burst pressure rating; 15 ft supplied; enters transom 6" above waterline; secured with hose trim and stainless steel clamps at solenoid barb fittings
• Controls: Rocker-type dash-mounted switches for easy operation
• Included: One pint of Insta-Trim biodegradable transmission oil, funnel, and all mounting hardware
