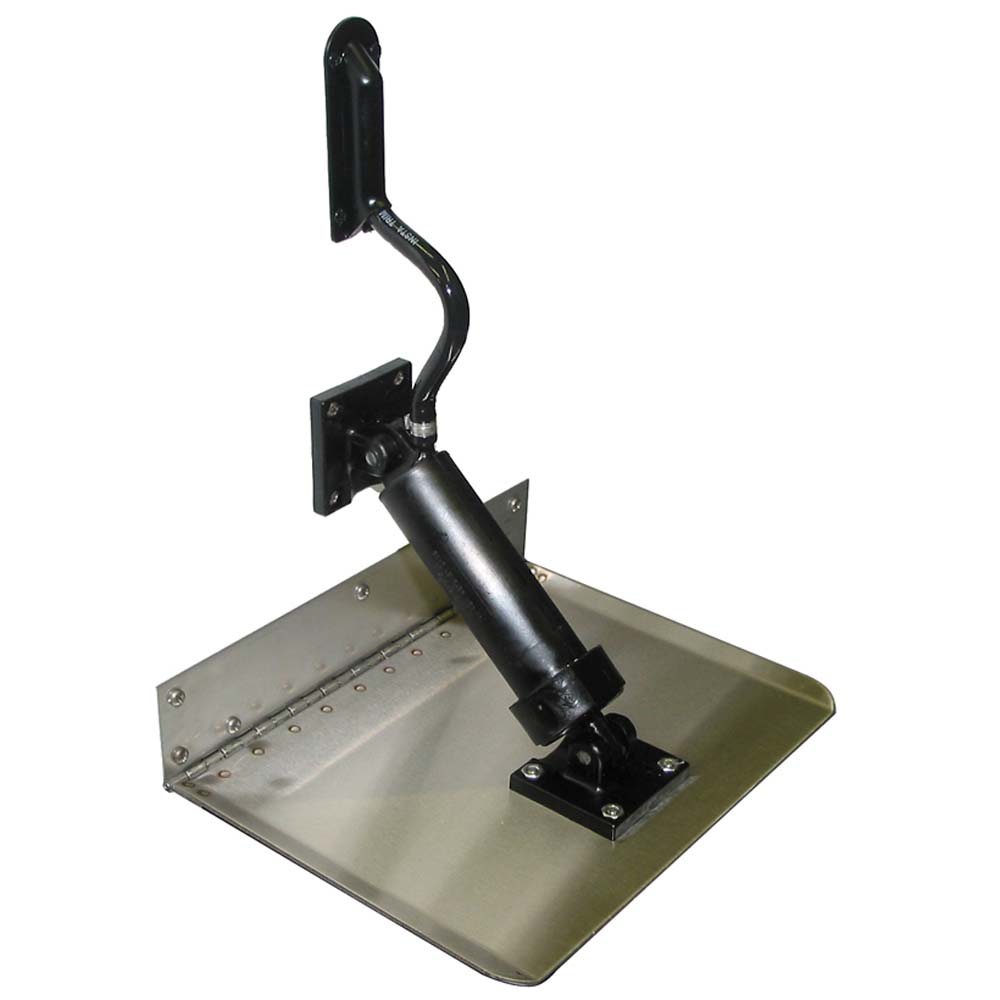

The Boat Leveler 12" x 9" Trim Tab Set delivers hydraulic tab control engineered from the ground up by Insta-Trim, with purpose-built components at every stage -- from the sealed solenoids and high-pressure hose to the stainless steel tabs themselves. Every part of this system is designed to work together for reliable, repeatable performance across a wide range of hull types and conditions.

Specifications:

• Trim Tabs: 12 gauge 304 stainless steel; guaranteed against electrolysis; available in standard and custom lengths; Insta-Trim hinges minimize spray; compatible with transom or bottom mounting
• Wiring: Color-coded, 25'–40' lengths with quick-connect fittings; meets federal standards for heat resistance, pull strength, and insulation
• Solenoids: Custom-designed for Insta-Trim; epoxy sealed and humidity resistant to prevent shorting; locks tabs in any position to eliminate driftback; barb-type hose fittings for secure connections
• Motor: Coated windings with thermal overload protection against temperature and amperage buildup; 1 3/4" stack windings; top-mount design eliminates oil leakage; mounted with stainless steel nuts and bolts; easily disassembled
• Brackets: Swivel-type design allows cylinders to be mounted and adjusted to any angle; knockout pins serve as shear pins if a tab strikes an object
• Pump: Designed exclusively by Insta-Trim; built-in bypass factory set at 400 PSI with tolerance held to .00025"; amperage does not exceed 16A -- unit circulates oil rather than stalling or building additional pressure
• Motor Cover: 4 1/2" D x 6" W x 11" H; high-impact ABS plastic with built-in oil reservoir; mounts with two screws; front-access filler; protects motor from wash-down
• Cylinders: Impact-resistant, fiberglass-reinforced nylon; resists UV exposure and expansion; two expanding-type seals plus O-ring eliminate high- and low-pressure leaks; barbed fitting and inserted tubular rod prevent hose blow-off and breakage; stainless steel spring retracts cylinder when vessel is at rest
• Hose: Nylon-reinforced webbing with protective PVC coating; rated at 2,000 lb. burst pressure; 15' of hose supplied; enters transom 6" above the waterline; secured with hose trim and stainless steel clamps at solenoid barb fittings
• Controls: Rocker-type switches; dash-mounted for easy operation
• Included: One pint of Insta-Trim biodegradable transmission oil, funnel, and all mounting hardware
