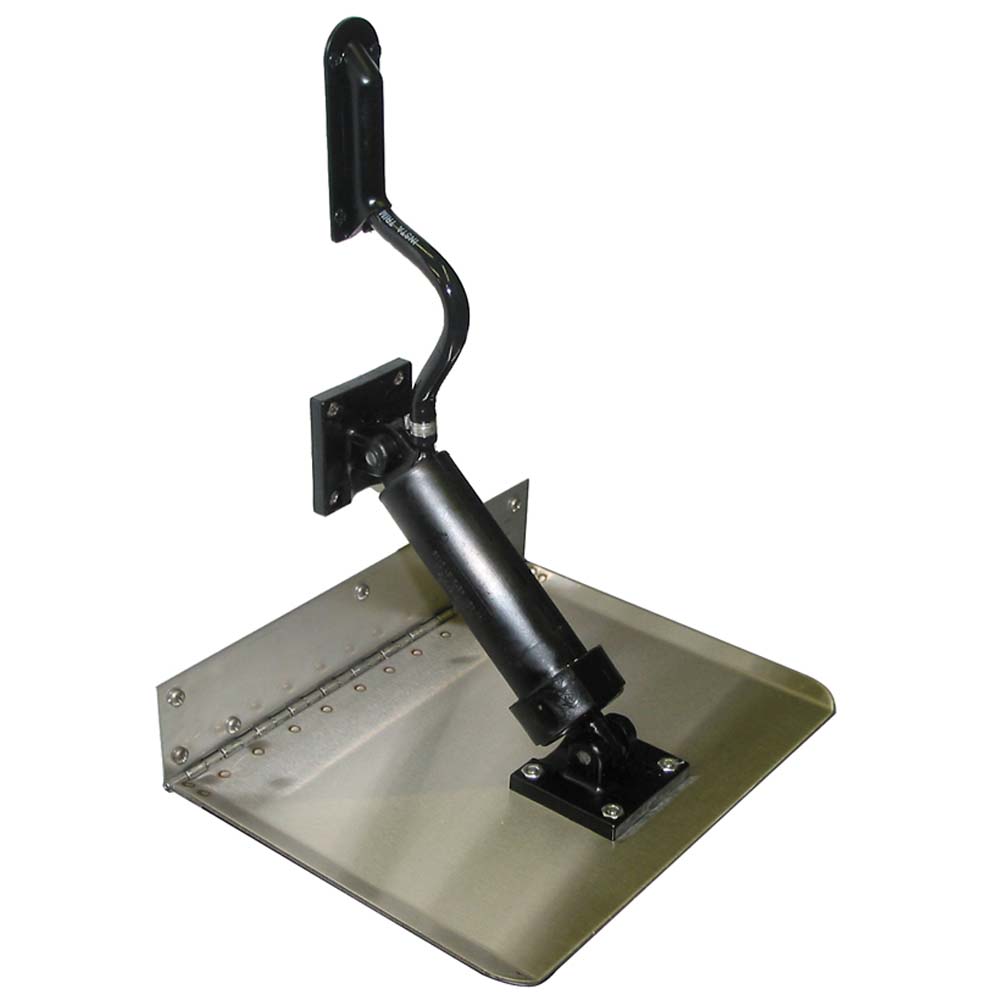

The Boat Leveler 12" x 8" Trim Tab Set is a complete hydraulic trim tab system engineered by Insta-Trim with purpose-built components throughout -- from UV-resistant cylinders and epoxy-sealed solenoids to 12-gauge stainless steel tabs and color-coded wiring. Every part of this system is designed for reliable, low-maintenance performance on planing powerboats.

Specifications:

• Trim Tabs: 12 gauge 304 stainless steel; available in standard and custom lengths; guaranteed against electrolysis; Insta-Trim hinges resist spray; compatible with transom or bottom mounting
• Wiring: Color-coded, 25' to 40' lengths with quick-connect fittings; meets federal standards for heat, pull, and insulation
• Solenoids: Custom-designed for Insta-Trim; epoxy sealed and humidity resistant to prevent shorts; lock tabs in any position to eliminate driftback; barb-type hose fittings for secure connections
• Motor: Coated windings with thermal overload protection; 1-3/4" stack windings with top mounting to eliminate oil leakage; mounted with stainless steel nuts and bolts; easily disassembled
• Brackets: Swivel-type to allow cylinder mounting and adjustment at any angle; knockout pins serve as shear pins if a tab strikes an object
• Pump: Designed exclusively by Insta-Trim; built-in bypass factory set at 400 PSI (tolerance held to .00025); amperage does not exceed 16A -- circulates oil rather than stalling or over-pressurizing
• Motor Cover: 4-1/2" D x 6" W x 11" H high-impact ABS plastic; built-in oil reservoir; mounts with two screws; filler located at front; protects motor from wash-down
• Cylinders: Impact-resistant, fiberglass-reinforced nylon; resists UV and expansion; dual expanding-type seals plus O-ring eliminate high- and low-pressure leaks; barbed cylinder fitting with inserted tubular rod prevents hose blow-off and breakage; stainless steel spring retracts cylinder when vessel is stationary
• Hose: Manufactured exclusively for Insta-Trim; nylon-reinforced webbing with protective PVC coating; rated at 2,000 lb. burst pressure; 15' supplied; enters transom 6" above waterline; secured with hose trim and stainless steel clamps at solenoid barb fittings
• Controls: Rocker-type dash-mounted switches for easy operation
• Included: One pint of Insta-Trim biodegradable transmission oil, funnel, and all mounting hardware
