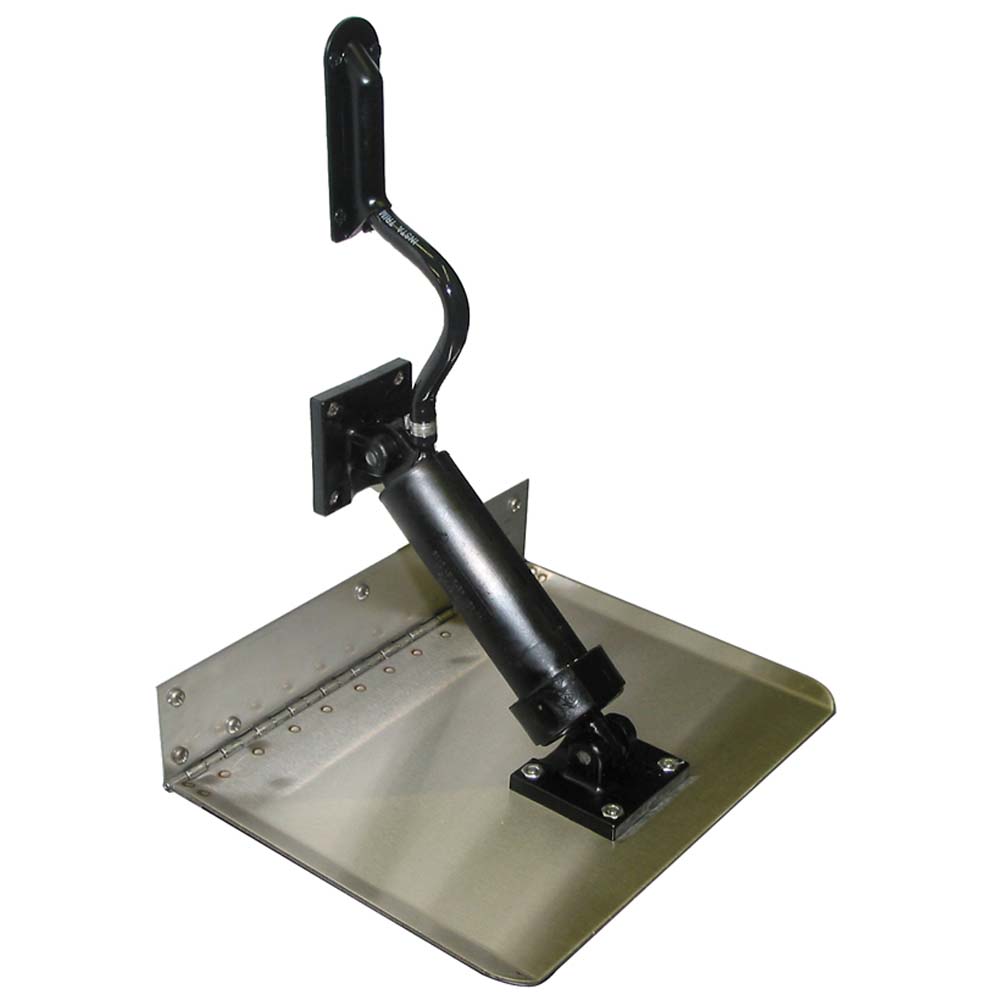

The Boat Leveler 10" x 8" hydraulic trim tab set delivers precise, reliable planing control for outboard and sterndrive boats. Built around a fully integrated hydraulic system -- from an exclusively engineered pump and epoxy-sealed solenoids to fiberglass-reinforced cylinders and 304 stainless steel tabs -- this kit includes everything needed for a clean, lasting installation.

Specifications:

• Tab Size: 10" x 8"
• Trim Tabs: 12-gauge 304 stainless steel; available in standard and custom lengths; guaranteed against electrolysis; Insta-Trim hinges resist spray; compatible with transom or bottom mounting
• Wiring: Color-coded, 25'–40' lengths with quick-connect fittings; meets federal standards for heat resistance, pull strength, and insulation
• Solenoids: Custom-designed for Insta-Trim Boat Leveler Co.; epoxy sealed and humidity-resistant to prevent shorting; lock tabs in any position to eliminate drift-back; barb-type hose fittings for secure connections
• Motor: Coated wiring with thermal overload protection against temperature and amperage build-up; 1-3/4" stack windings with top mounting to eliminate oil leakage; secured with stainless steel nuts and bolts; easily disassembled
• Motor Cover: 4-1/2" D x 6" W x 11" H; high-impact ABS plastic with built-in oil reservoir; mounts with two screws; front-located filler; protects motor from washdown
• Pump: Designed and engineered exclusively by Insta-Trim; built-in bypass factory set at 400 PSI (tolerance held to .00025); circulates oil rather than stalling, keeping amperage at or below 16
• Cylinders: Impact-resistant, fiberglass-reinforced nylon; UV-resistant; two expanding-type seals plus an O-ring eliminate high- and low-pressure leaks; barbed cylinder fitting and inserted tubular rod prevent hose blow-off and breakage; stainless steel spring retracts cylinder when vessel is at rest
• Brackets: Swivel-type for multi-angle cylinder mounting and adjustment; knockout pins serve as shear pins if a tab contacts an object
• Hose: Nylon-reinforced webbing with protective PVC coating; rated at 2,000 lb. burst pressure; 15' supplied; enters transom 6" above the waterline; secured with hose trim and stainless steel clamps at solenoid barb fittings
• Controls: Rocker-type, dash-mounted for easy operation
• Included: One pint of Insta-Trim biodegradable transmission oil, funnel, and mounting hardware
