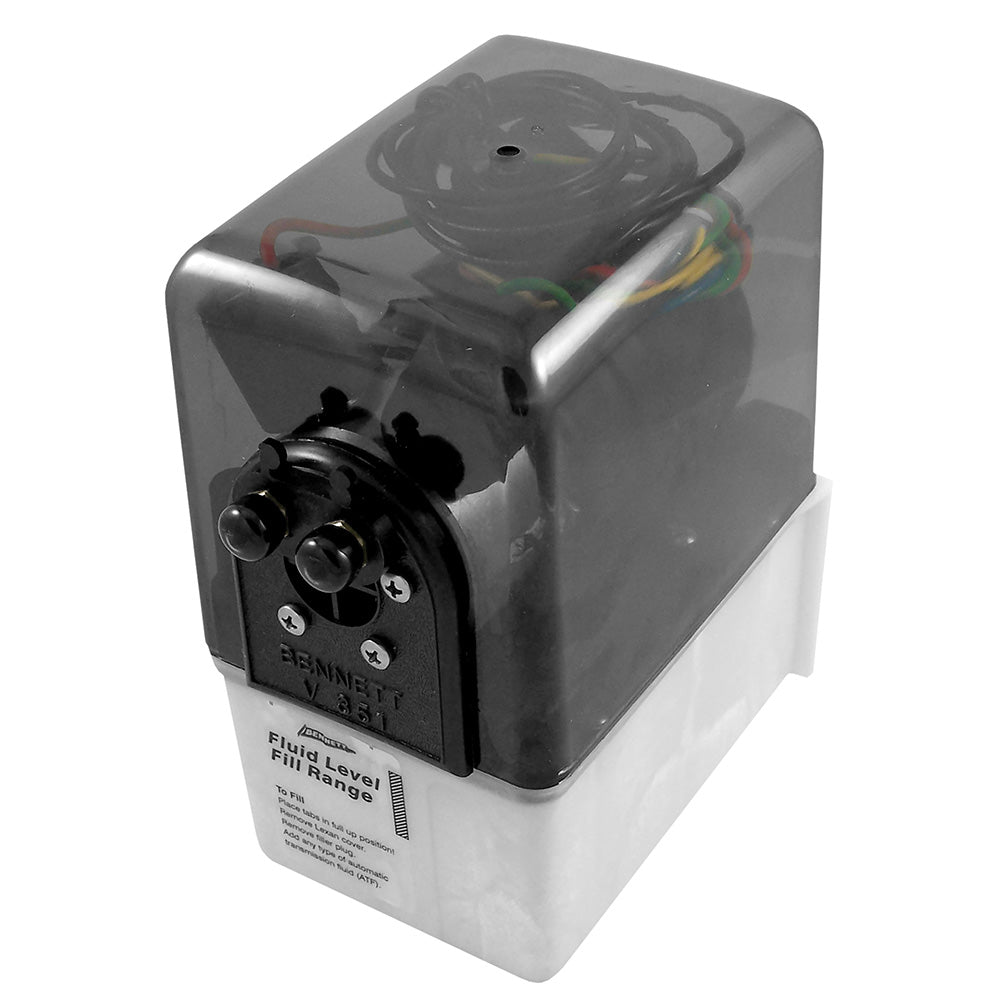

The Bennett Marine Hydraulic Power Unit generates the hydraulic pressure needed to raise and lower trim tabs with precision. Dual solenoid valves route fluid to the actuators and lock firmly to hold even oversized tabs securely in position. A Lexan cover shields the electrohydraulic assembly from water intrusion, while the translucent reservoir lets you verify fluid level at a glance without removing any components.

Specifications:

• Voltage: 12V DC
• Connector type: Deutsch
• Dimensions: 4" x 7-1/2" x 5-1/2"
• Fluid type: Automatic transmission fluid (ATF)
• Two solenoid valves direct fluid flow and lock tabs in place
• Lexan cover provides water resistance to the electrohydraulic unit
• Translucent reservoir allows at-a-glance fluid level inspection
• Mounting bracket sold separately (part # H1179)
• Includes: pump, solenoid valves, reservoir, and cover

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Resources:

• Installation Guide (PDF)
