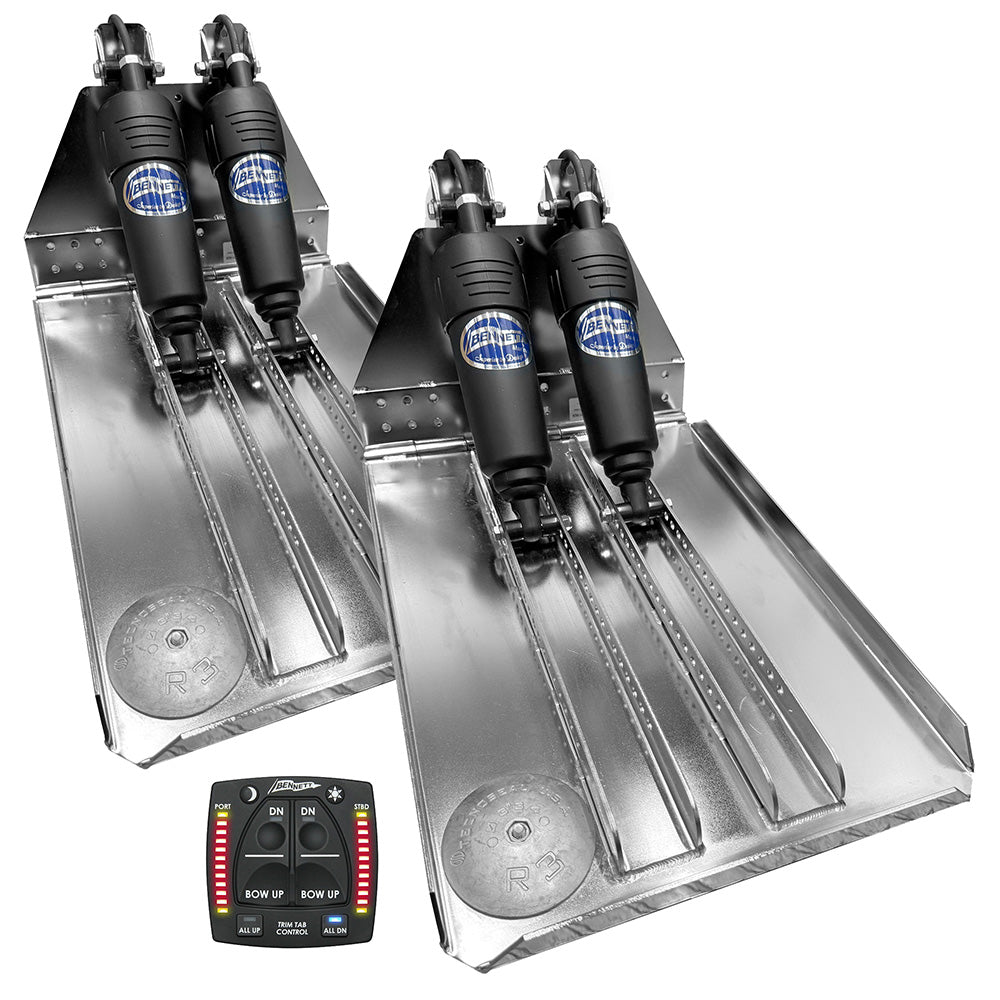

The Bennett Marine BOLT 14x23 Dual Electric Trim Tab System with One Box Indication Unit delivers precise planing control for boats operating in rough conditions and at higher speeds. Laser-cut, tapered tabs are formed from 12-gauge electro-polished stainless steel with a full-profile backing plate and up-fins for maximum rigidity. The integrated One Box Indication Unit keeps all control logic inside a single compact keypad — no external control module required — making installation straightforward and helm space usage minimal.

Specifications:

• Tab size: 14" span x 23" chord
• Heavy-duty electric trim tab system
• Adjustable upper hinge actuator
• Requires less than 10.25" of vertical transom height
• High-performance laser-cut, tapered trim tab blades
• 12-gauge electro-polished stainless steel construction
• Full-profile backing plate for added strength
• Up-fins for additional structural rigidity
• One Box Indication Unit — stand-alone helm control with no external control unit needed
• Convenient "All Up" and "All Down" buttons
• LED indicators display real-time trim tab position at a glance
• Auto tab retraction — tabs retract automatically when ignition is powered off
• Single lock nut design for straightforward installation
• Reduces bow rise, improves planing speed, and corrects listing
• Backed by Bennett Marine customer support
