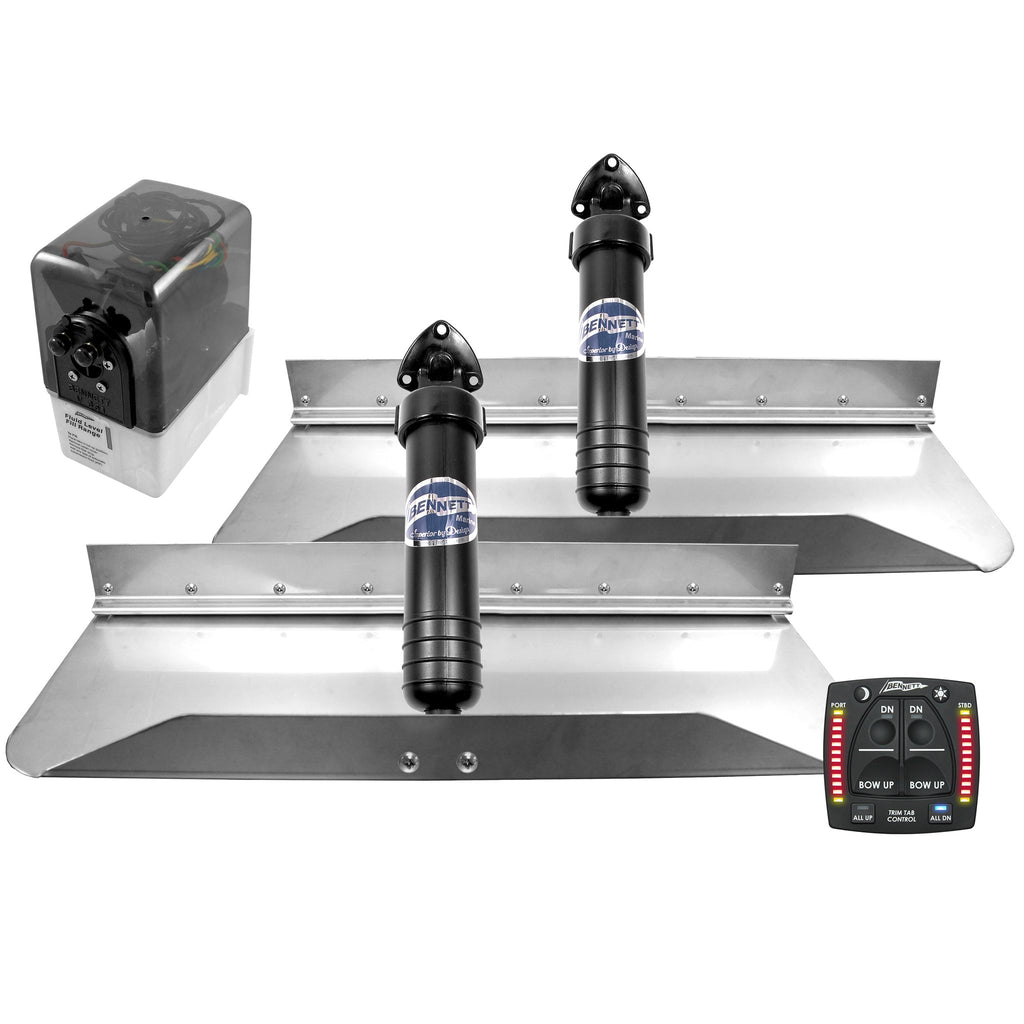

The Bennett Marine 24x9 Hydraulic Trim Tab System delivers the power and precision hydraulics are known for, letting you fine-tune your boat's running attitude whether you're managing uneven loads, choppy water, or varying speeds. The helm control adjusts tabs individually or together, helping you get on plane faster, stretch your fuel economy, and smooth out a rough ride. The exclusive interlocking transom mount design keeps installation clean and service straightforward.

Features:

• Gets the boat on plane quickly and maintains plane at intermediate speeds
• Corrects listing and compensates for uneven weight distribution
• Improves forward visibility and overall safety
• Reduces hull pounding and eliminates porpoising
• Low-maintenance design built for long-term value and easy service
• Exclusive transom mount interlocking tab design
• Sport batwing option (M80/M120) delivers 30% more lift for tight-space installations
• Bottom and piano hinge mounts available for custom-order configurations

Kit Includes:

• 2 trim plane assemblies
• 2–4 hydraulic actuators (A1101A)
• 1 hydraulic power unit (V351HPU1)
• Hydraulic tubing and hardware
• One box indicator helm control

Specifications:

• Tab size: 24 x 9 inches
• System type: Hydraulic
• Helm control: One Box Indication
• Mount style: Transom mount interlocking tab design (standard); bottom and piano hinge mounts available by custom order
• Sport batwing option: M80/M120 — 30% additional lift for limited-space installations
