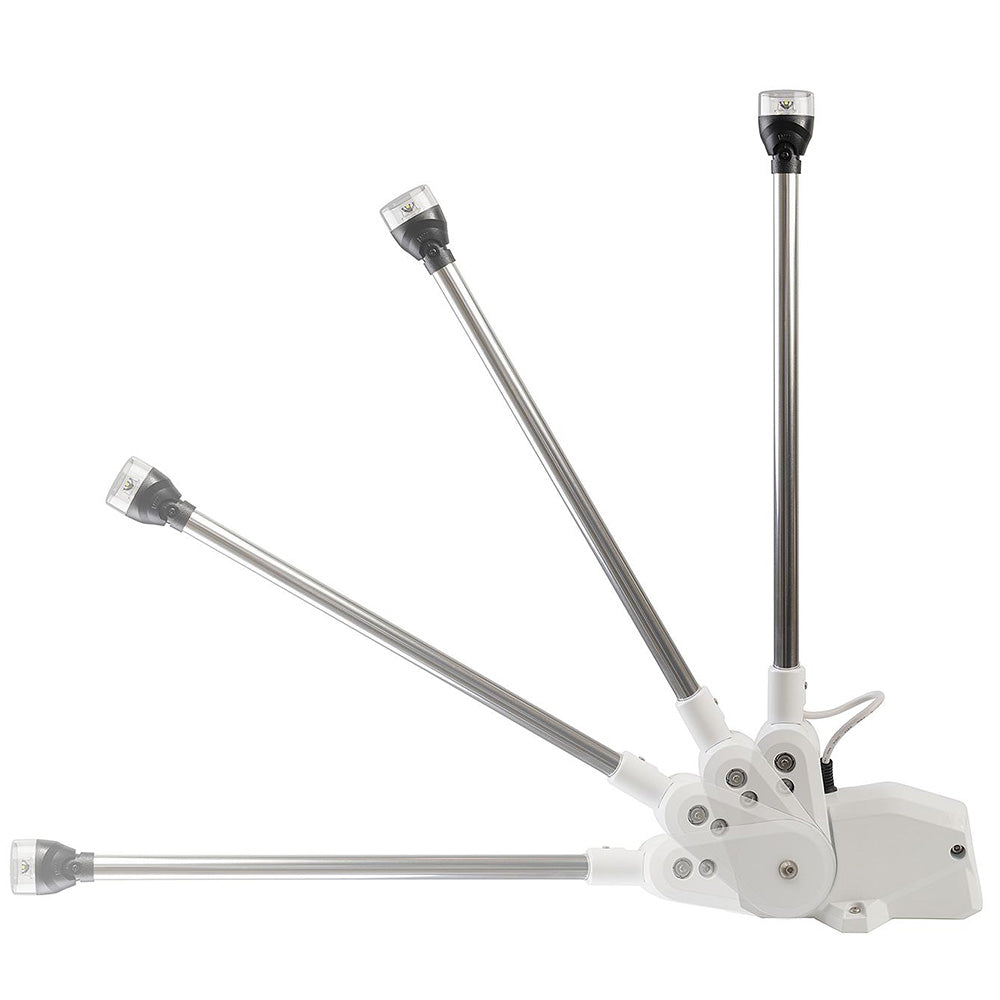

The Attwood PowerBase is an intelligent, motorized light and antenna mount that raises and lowers at the push of a button. Its object detection technology sets it apart: SafeGuard Breakaway automatically retracts the unit to a stowed position on impact, protecting your fiberglass hardtop, while SmartDeploy Backdrive senses any blocked deployment and reverses the light or antenna back to its starting point. Standardized mounting patterns support future upgrades, and the intuitive control design works without switch limitations. Compatible with Attwood LightArmor LED All-Round and Masthead Nav Lights.

Specifications:

• Automated folding light and antenna mount with push-button operation
• SafeGuard Breakaway: retracts to stowed position on impact to prevent fiberglass damage
• SmartDeploy Backdrive: detects obstructions during deployment and reverses to starting position
• Standardized mounting patterns for upgradeability
• Intuitive control without switch limitations
• Available in masthead and all-round configurations with Attwood LightArmor LED technology
• Compatible with Attwood LightArmor LED All-Round and Masthead Nav Lights

Required for Installation (not included):

• 7/32" and 3/4" drill bits
• #2 Phillips driver
• Marine grade sealant
• PTFE lubricant
• 2x 1-1/4" fender washers and 10-24 nuts (if through-hole mounting)
• 2-position SPST switch with LED backlight
• PowerBase Light (sold separately)

Resources:

• Owner's Manual (PDF)
• Quick Guide (PDF)
