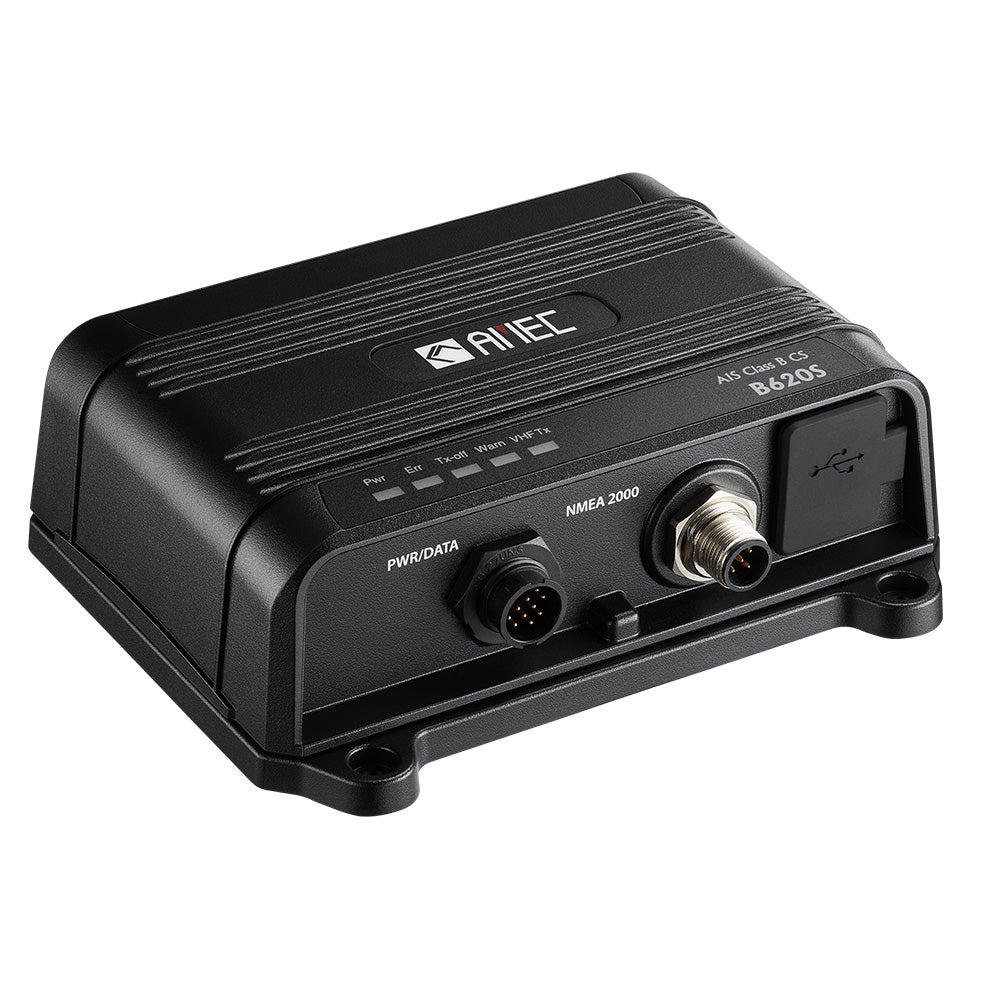

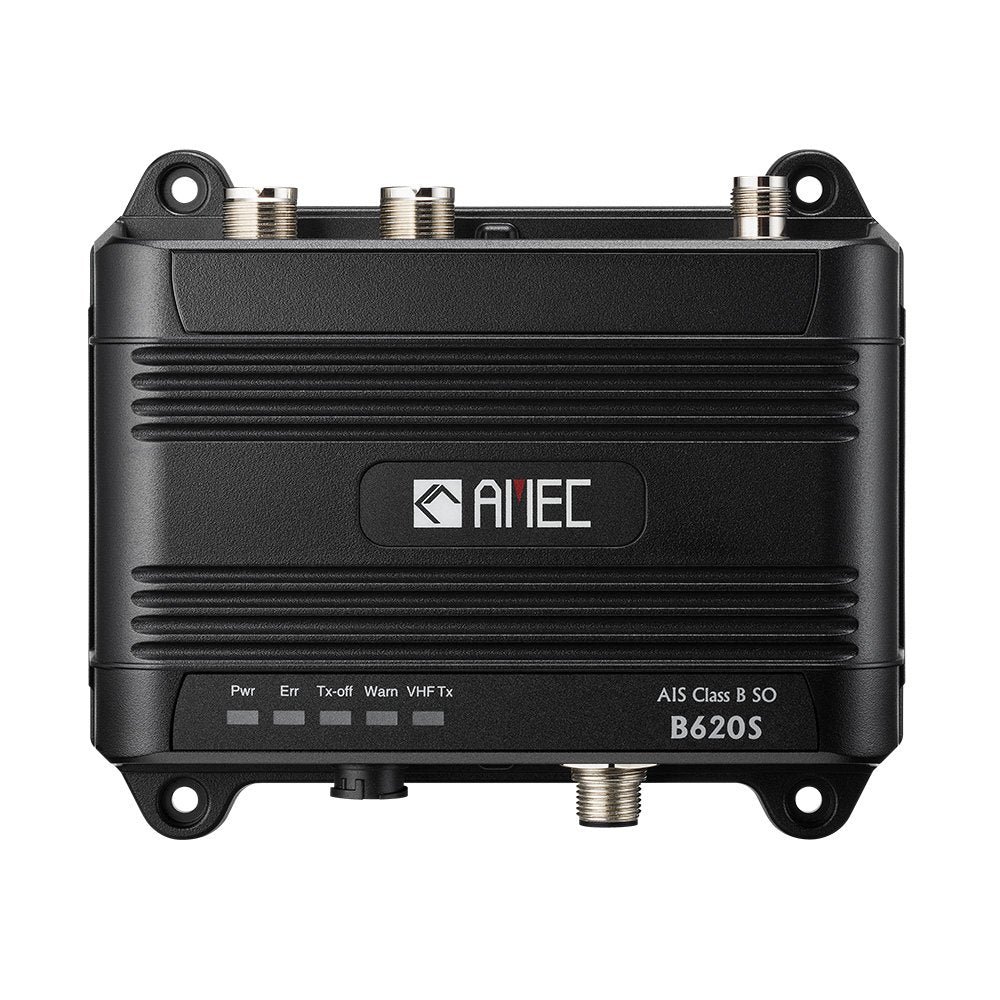

The AMEC B620S is the splitter-equipped variant of the B620 series — it adds an integrated VHF antenna splitter module so one antenna serves both your VHF radio and the AIS transceiver, eliminating the need for a second antenna run. Underneath that convenience sits AMEC's 3rd-generation AIS engine, Software Defined Radio technology, and a -111 dBm receiving sensitivity that places it at the top of the Class B performance bracket.

FCC Programming Requirement: The FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below at the time of purchase. A copy of your MMSI Registration or FCC Ship Station License is required, along with the vessel master or owner's signature on the completed programming form.

Click here to download the programming form.

Specifications:

• Class B CSTDMA AIS transceiver, 2W transmit power
• Integrated VHF antenna splitter — share one antenna between AIS and VHF radio
• AMEC 3rd-generation AIS engine with best-in-class receive sensitivity of -111 dBm and industry-leading low power consumption
• Software Defined Radio (SDR) technology with high-performance dual-channel AIS receiver
• Advanced 72-channel GNSS receiver supporting GPS, Galileo, BeiDou, and GLONASS
• Connectivity: NMEA 2000, dual NMEA 0183, and USB (compatible with PC/Mac navigation software)
• Continuous self-health monitoring with intuitive LED status indicators
• Certified EMI protection against interference from onboard electronics
• IP68 waterproof rating
• Compact and lightweight design for straightforward installation
• Fully certified for global deployment: FCC, CE, ISED
