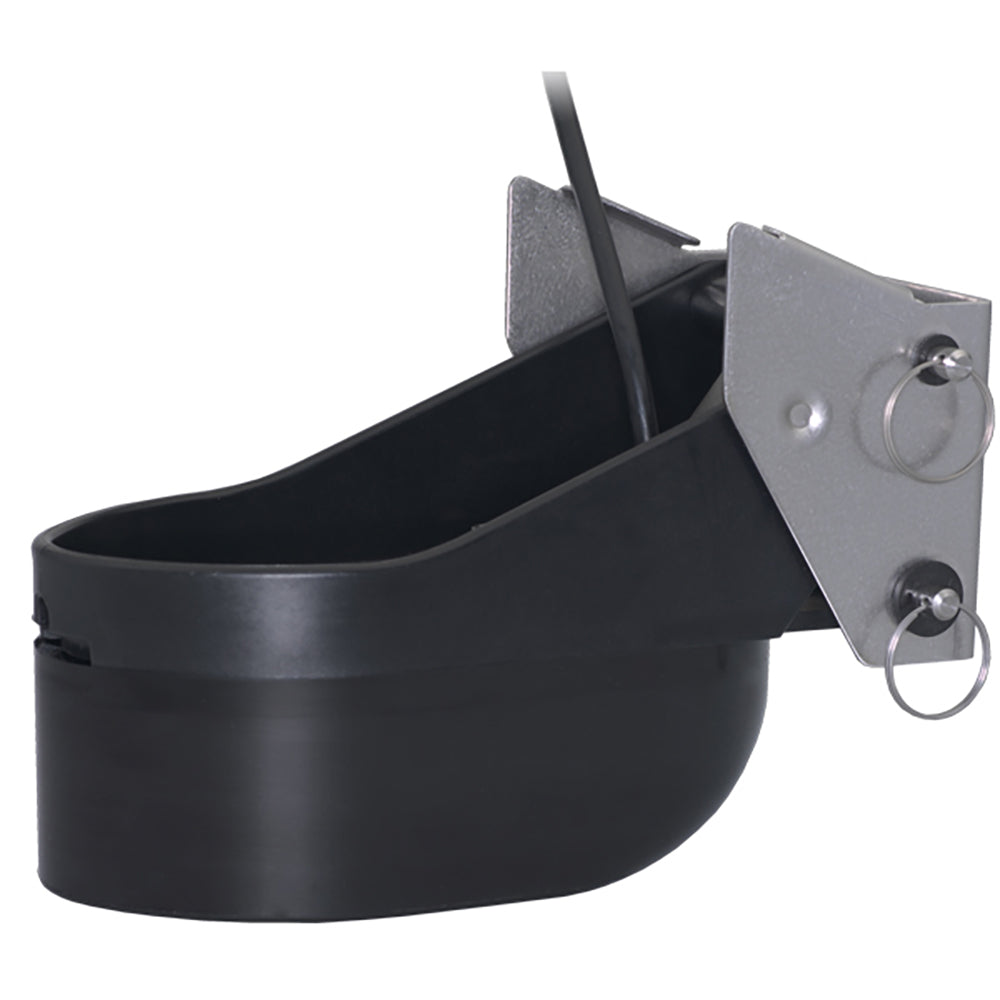

The Airmar TM260 brings the broadband performance of the B260 series to a transom-mount form factor, pairing a large 200 kHz element with a seven-element 50 kHz array for exceptional bait and gamefish separation and the ability to detect bottom-hugging fish. The streamlined kick-up bracket installs easily, accommodates a wide range of transom angles, and is rated for high-speed use up to 30 knots (35 MPH).

Specifications:

• Frequencies: 50 kHz (7-element array) and 200 kHz (single large element)
• Beam angle: 19° at 50 kHz; 6° at 200 kHz
• Compatible with any 600W or 1 kW sounder
• Connector: Humminbird 14-pin plug
• Sensors: Depth and fast-response water temperature
• Housing material: Urethane
• Acoustic window: Urethane
• Transom angle accommodation: 3° to 21°
• Hull deadrise: Up to 28°
• Recommended boat size: Up to 12 m (40 ft)
• High-speed rated: Up to 30 knots (35 MPH)
• Weight: 4 kg (8.9 lb)
• Kick-up assembly locks in the up position and will not damage the transom

Resources:

• Owner's Manual (PDF)
• Quick Start Guide (PDF)
• Product Brochure (PDF)

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
