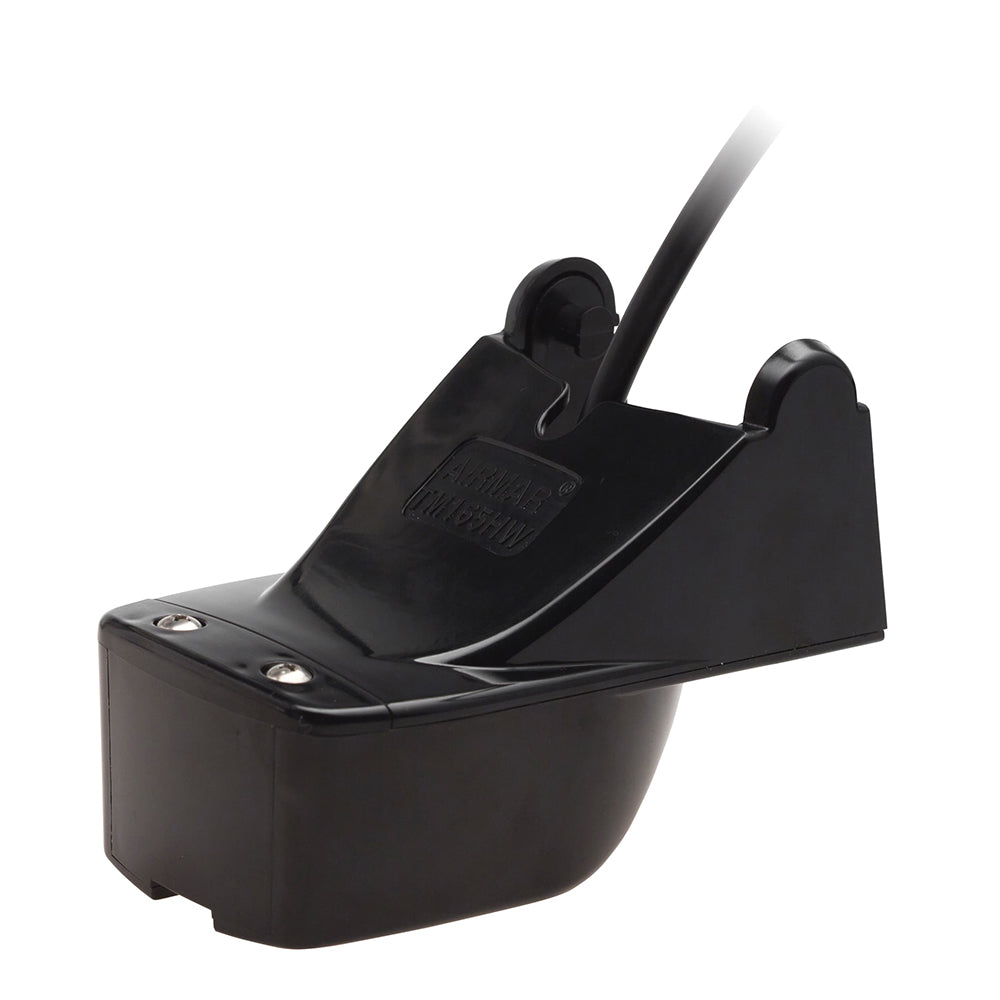

The Airmar TM165HW is a 600W CHIRP-ready transom mount transducer engineered for fishing boats up to 25 feet on planing hulls — fiberglass, metal, or wood — with outboard or I/O drives. Its super-wide 30° average beamwidth delivers roughly three times the bottom coverage of standard high-frequency CHIRP transducers, producing crisp, noise-free target separation and strong fish arches from the upper water column to the bottom. As an Airmar Mix and Match unit, it ships with a 9m base cable and requires a brand-specific adapter cable for your sonar system.

Compatible Sonar Systems:

• Lowrance: All models except Hook series
• Humminbird: SM300; Helix and Solix (manual setup required)
• Garmin: GPSMAP 7600, 8600, 7X2/9X2/10X2/12X2, GSD26
• Raymarine: All models
• Simrad: All models

Specifications:

• Mount Type: Transom mount
• Power: 600W
• Maximum Depth: 152 m (500 ft)
• Frequency Range: 150 kHz – 250 kHz (High CHIRP)
• Average Beamwidth: 30° (super wide)
• Coverage: Approximately 3× the bottom coverage of standard high-frequency CHIRP transducers
• Sensors: Depth and fast-response water temperature
• Cable: 9m base cable included; brand-specific Mix and Match adapter cable required (sold separately)
• Technology: Exclusive Xducer ID®
• Hull Compatibility: Fiberglass, metal, or wood planing hulls; outboard and I/O drives
• Recommended Vessel Size: Up to 25 ft (8 m)
• Profile: Low-profile, high-performance design for excellent resolution at speed

In the Box:

• TM165HW transducer with 9m base cable

Resources:

• Product Brochure (PDF)
• Product Video

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
