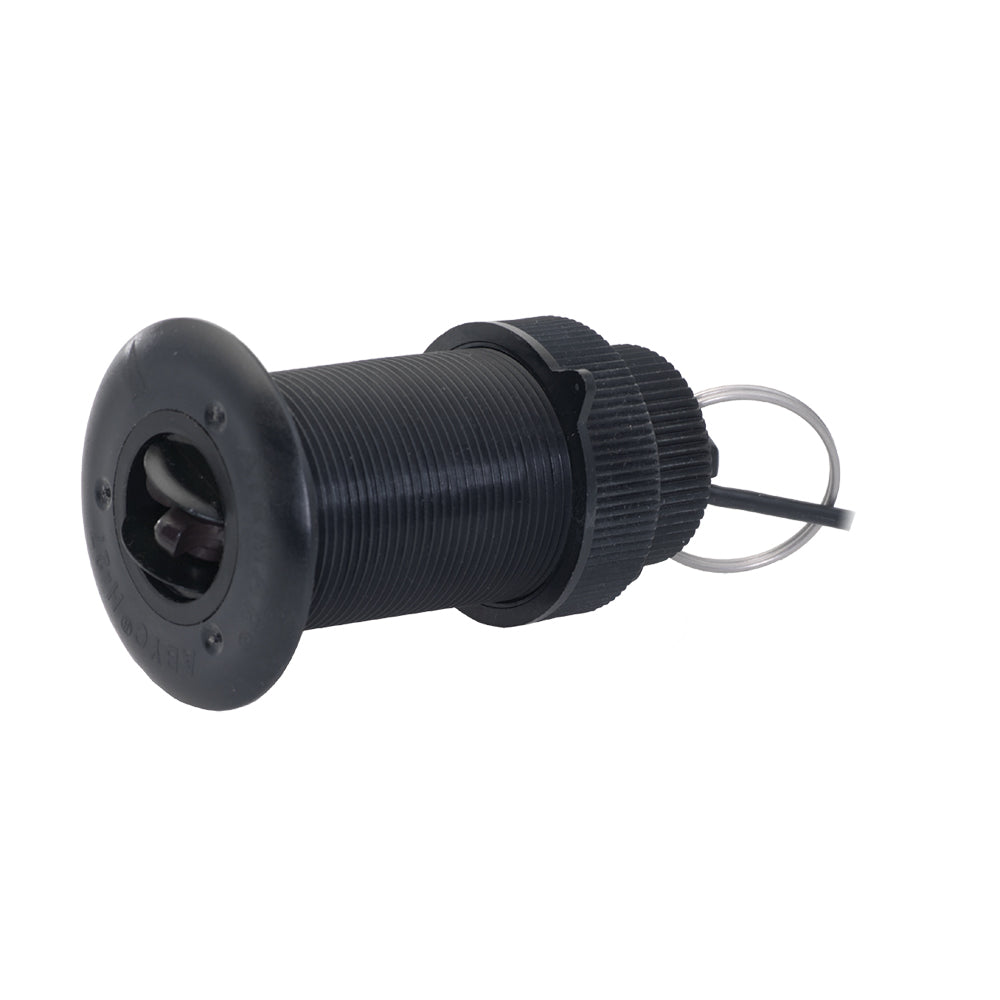

The Airmar ST800PV-N2 is a thru-hull Smart™ Sensor that processes speed and water temperature data digitally within the housing itself, then delivers that data via NMEA 2000 or NMEA 0183 analog output to chart plotters, radar displays, or digital readouts. Its low-profile design protrudes just 5 mm (3/16") beyond the hull surface to keep drag to a minimum. The retractable insert and built-in water valve allow for removal without hauling the vessel, and the sensor is available in either a plastic (P120) or bronze (B120) thru-hull housing to suit different hull materials.

Specifications:

• Weight — Plastic housing: 0.7 kg (1.4 lb.) / Bronze housing: 1.3 kg (2.8 lb.)
• Compatible hull materials — Plastic housing: fiberglass or metal / Bronze housing: fiberglass or wood
• Required hole diameter: 51 mm (2")
• Speed range: 2 to 45 knots (2 to 52 MPH)
• Water temperature range: -10 to 40°C (14 to 104°F)
• Water temperature accuracy: ±0.5°C (±1.8°F)
• Pressure rating: 3 m (10')
• Output protocol: NMEA 0183 or NMEA 2000
• Data update rate: 1 time/second
• Supply voltage: 9 to 16 VDC
• Supply current: <200 mA
• NMEA 2000 Load Equivalency Number (LEN): 2
• Standard cable length — NMEA 2000: 6 m (20') / NMEA 0183: 9 m (30')
• Includes: blanking plug
• Certifications: CE, IEC60945

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
