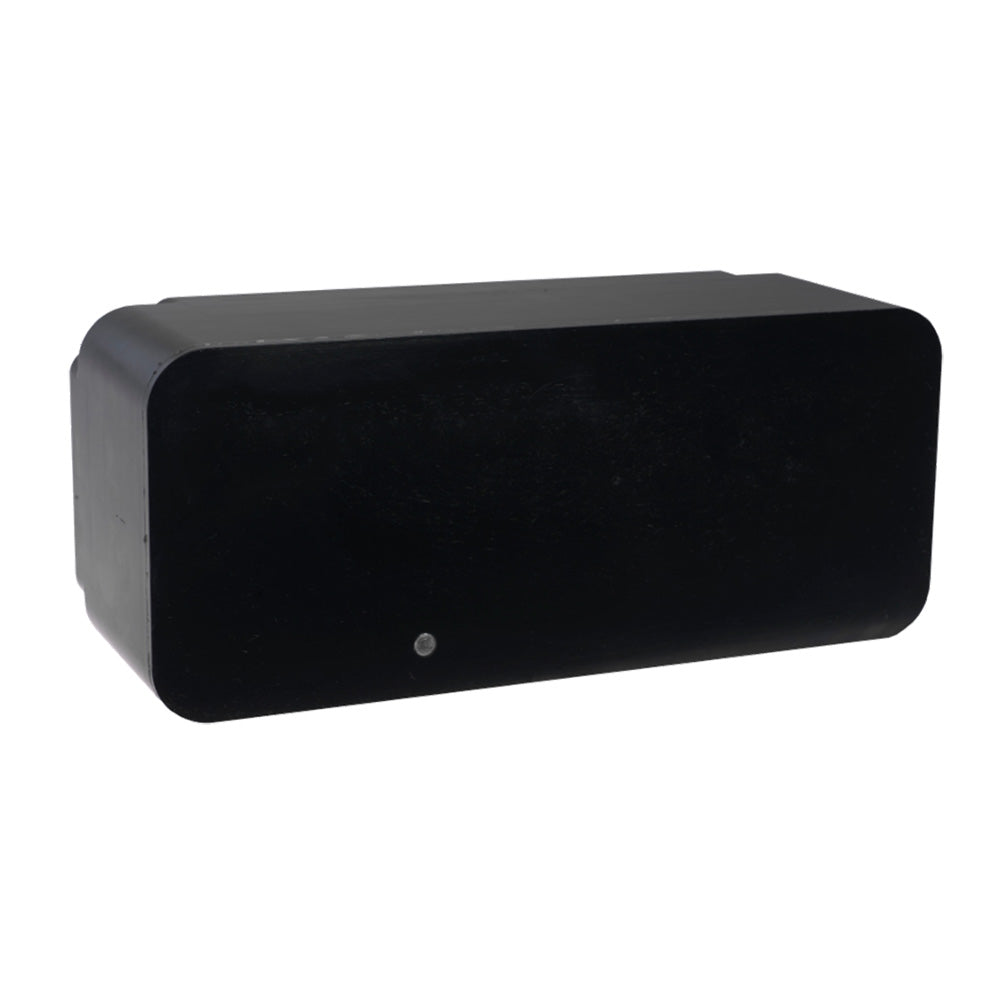

The Airmar PM111LH installs flush within a custom pocket in your hull or keel, making it a go-to choice for boat builders and retrofit applications where a suitable pocket already exists. It delivers dual-channel Low-High CHIRP sonar at 2kW alongside a fast-response water-temperature sensor, covering everything from shallow bottom structure to deep offshore targets — all without requiring a high-performance fairing block. Compatible with fiberglass and metal hulls of stepped, planing, or displacement designs, and works with any deadrise angle or propulsion type.

Specifications:

• Mount type: Pocket mount, hull-flush installation
• Power: 2kW
• Sensors: Depth and fast-response water temperature
• Compatible hull types: Fiberglass and metal — stepped, planing, or displacement
• Compatible with any deadrise angle and all propulsion types
• Connector: None (no connector included)
• Low CHIRP range: 38 kHz to 75 kHz
• Low CHIRP beam (port/starboard): 19° to 10°
• Low CHIRP beam (fore-aft): 10° to 5°
• Low CHIRP maximum depth: 6,000 ft.
• High CHIRP range: 130 kHz to 210 kHz
• High CHIRP beamwidth: 8° to 4°
• High CHIRP maximum depth: 1,500 ft.

Bottom Coverage Relative to Frequency and Depth:

• 50 ft. depth → 6 ft. coverage
• 100 ft. depth → 14 ft. coverage
• 300 ft. depth → 42 ft. coverage
• 600 ft. depth → 84 ft. coverage
• 1,000 ft. depth → 140 ft. coverage
• 1,500 ft. depth → 210 ft. coverage
• 2,000 ft. depth → exceeds range

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
