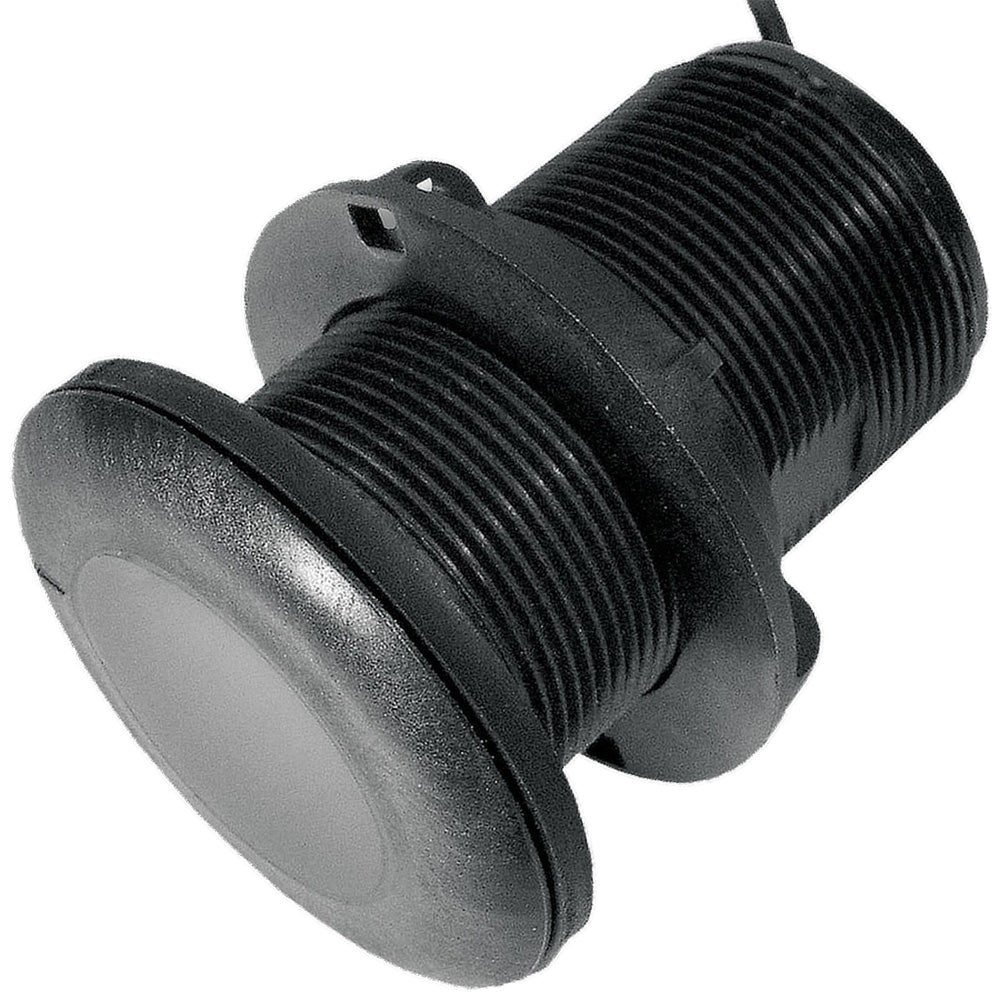

The Airmar P319 is an entry-level plastic thru-hull transducer built around a single dual-frequency ceramic element operating at 50 and 200 kHz. Its low-profile housing protrudes only 5 mm (3/16") beyond the hull surface, keeping drag to an absolute minimum. A right-angle cable exit protects the unit if accidentally stepped on, and an included rubber washer compensates for irregular hull surfaces during installation. Note that a separately purchased Mix & Match™ cable is required to connect to your fishfinder unit.

Specifications:

• Requires Mix & Match™ Cable for fishfinder connection (sold separately)
• Cable length: 2 m
• Power output: 600 W
• Frequencies: 50 kHz and 200 kHz (dual-frequency ceramic element)
• 50 kHz beamwidth: 45° — depth performance to 366 m (1,200')
• 200 kHz beamwidth: 12° — depth performance to 213 m (700')
• Sensing: depth only, or depth with fast-response water temperature
• Deadrise range: optimal through 7°; accommodates up to 12°
• Hull hole size: 51 mm (2")
• Usable shaft length: 63.5 mm (2.50")
• Housing protrusion: 5 mm (3/16") beyond hull
• Housing material: plastic, ABYC H-27 compliant
• Right-angle cable exit for space savings and step-on protection
• Includes rubber washer for irregular hull surface installation
