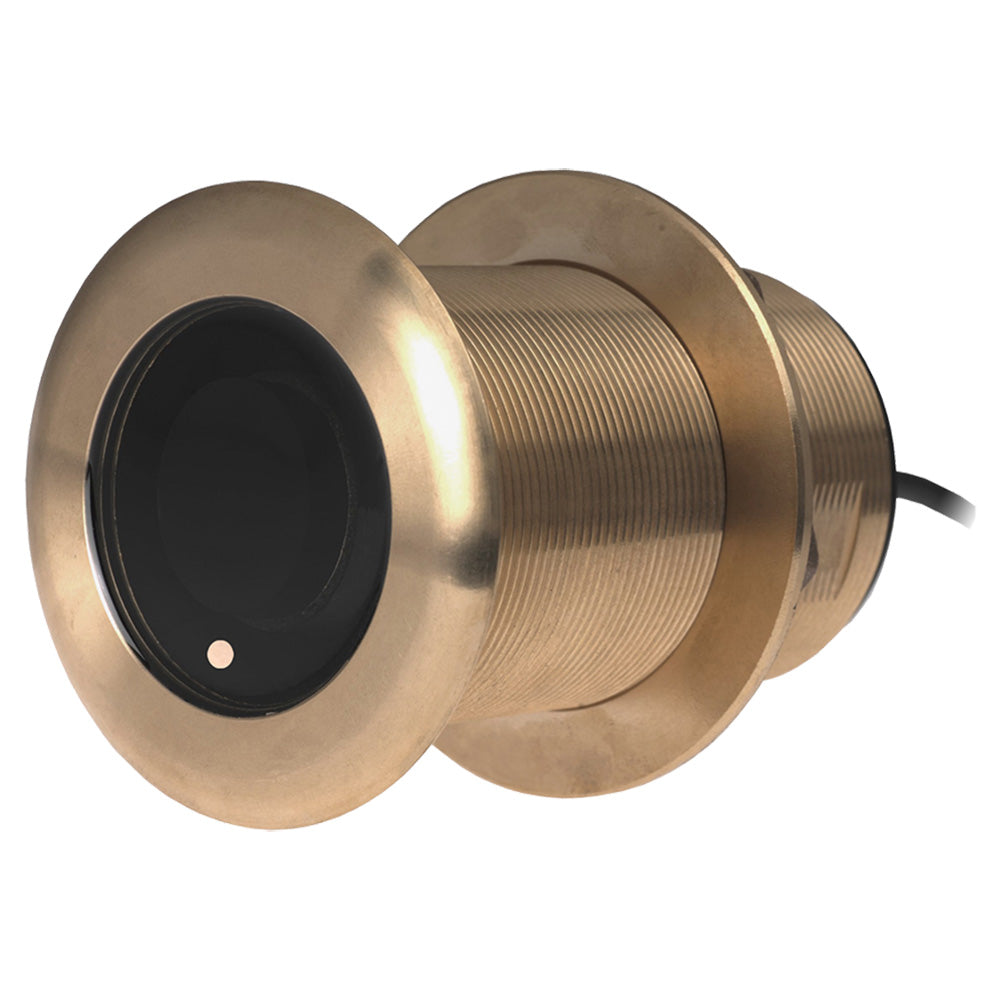

The Airmar B60 is a 600W dual-frequency thru-hull transducer built with Airmar's Tilted Element™ technology, fixing the ceramic element at a 20° angle inside a low-profile bronze housing. Once installed nearly flush with the hull, the angled element compensates for hull deadrise, directing the sonar beam straight down for maximum echo returns and accurate depth data. Compatible with Navico xSonic systems via a 9-pin connector, the B60 suits center-console and trailered boats up to 8 m (26') with fiberglass or wood hulls.

Specifications:

• Power Rating: 600 W
• Frequencies: 50 kHz (45° beamwidth, depth to 366 m / 1,200') and 200 kHz (12° beamwidth, depth to 206 m / 700')
• Functions: Depth, Fast-Response Water Temperature
• Mounting Style: Tilted Element Thru-Hull
• Tilt Angle: 20°
• Max Deadrise Angle: 24°
• Housing Material: Bronze
• Compatible Hull Materials: Fiberglass or Wood
• Acoustic Window: Urethane
• Low-Profile Extension: 5 mm (3/16") beyond hull exterior
• Hole Size: 60 mm (2-3/8")
• Usable Shaft Length: 68.5 mm (2.70")
• Max Vessel LOA: Up to 8 m (26')
• Single or Dual Frequency: Conventional Dual Frequency
• Tilted Element: Yes
• Retractable Housing: No
• Connector: 9-Pin (Navico xSonic)
• Common Use: Leisure/Yachting, Fishing
• Weight: 1.4 kg (3 lbs.)
• Also available in stainless steel housing (SS60) for all hull materials
