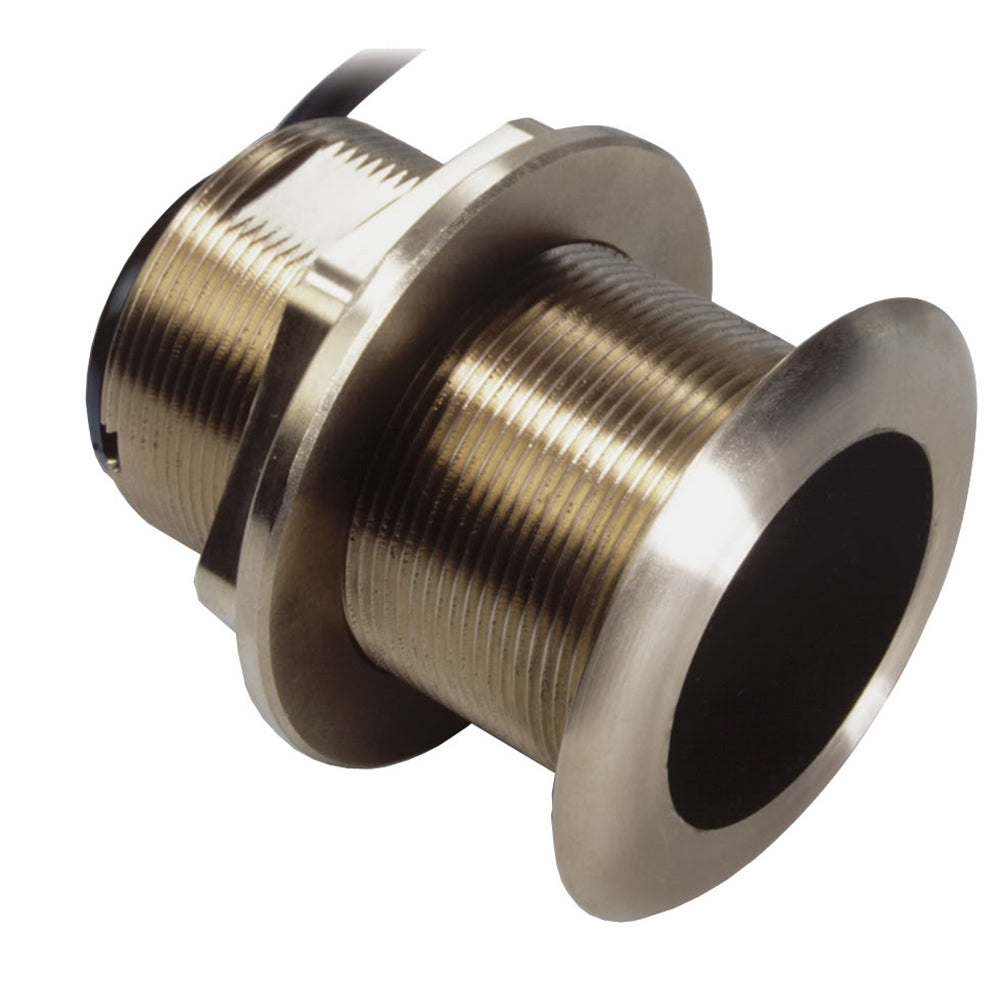

The Airmar B60 Bronze Thru-Hull Transducer with Humminbird #9 Plug (7-Pin, 12°) uses a tilted ceramic element inside its bronze housing to deliver a true vertical beam without requiring a fairing block. Designed for center-console and trailered boats up to 25 feet, the nearly flush profile extends only 5mm (3/16") below the hull, preserving running performance while providing accurate depth returns and built-in water temperature sensing.

Specifications:

• Connector: Humminbird #9 Plug, 7-Pin
• Deadrise Angle: 12° (built-in compensation)
• Hull Deadrise Compatibility: Up to 24°
• Acoustic Window: Urethane
• Housing Material: Bronze
• Below-Hull Protrusion: 5mm (3/16")
• Built-in temperature sensor
• Boat Size: Up to 8M (25')
• Weight: 1.4 kg (3 lb)
• Installation note: Arrow on cap points toward keel when installed

Resources:

• Owner's Manual (PDF)
• Quick Start Guide (PDF)
• Product Brochure (PDF)

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
