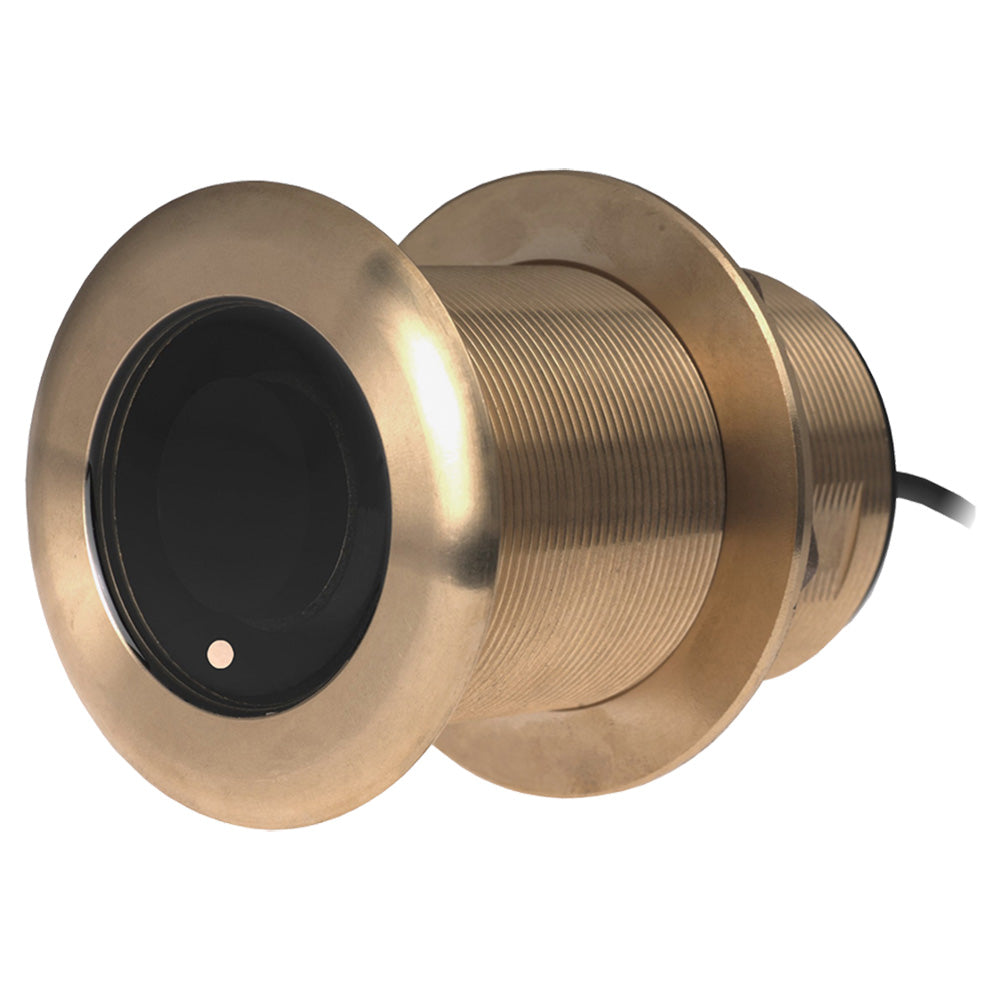

The Airmar B60 is a dual-frequency, 600 W bronze thru-hull transducer built around Airmar's Tilted Element™ technology. The ceramic element is fixed at a 20° angle inside the housing, compensating for hull deadrise when the unit sits nearly flush with the hull — keeping the sonar beam pointed straight down for accurate depth returns. The low-profile bronze housing protrudes only 5 mm (3/16") beyond the hull surface, making it a practical fit for center-console and trailered boats up to 8 m (26'). A separate Mix & Match cable is required for installation.

Specifications:

• Power Rating: 600 W
• Frequencies: 50 kHz (45° beamwidth) / 200 kHz (12° beamwidth)
• Max Depth: 366 m (1,200 ft) at low frequency; 206 m (700 ft) at high frequency
• Functions: Depth, fast-response water temperature
• Mounting Style: Tilted Element thru-hull, 20° tilt angle
• Max Deadrise Angle: 24°
• Housing Material: Bronze
• Compatible Hull Materials: Fiberglass or wood
• Max Vessel LOA: Up to 8 m (26')
• Hull Protrusion: 5 mm (3/16")
• Hole Size: 60 mm (2-3/8")
• Usable Shaft Length: 68.5 mm (2.70")
• Acoustic Window: Urethane
• Single or Dual Frequency: Conventional Dual Frequency
• Tilted Element: Yes
• Retractable Housing: No
• Common Use: Leisure/Yachting, Fishing
• Weight: 1.4 kg (3 lbs)

Note: Also available in stainless steel housing (SS60), compatible with all hull materials.
