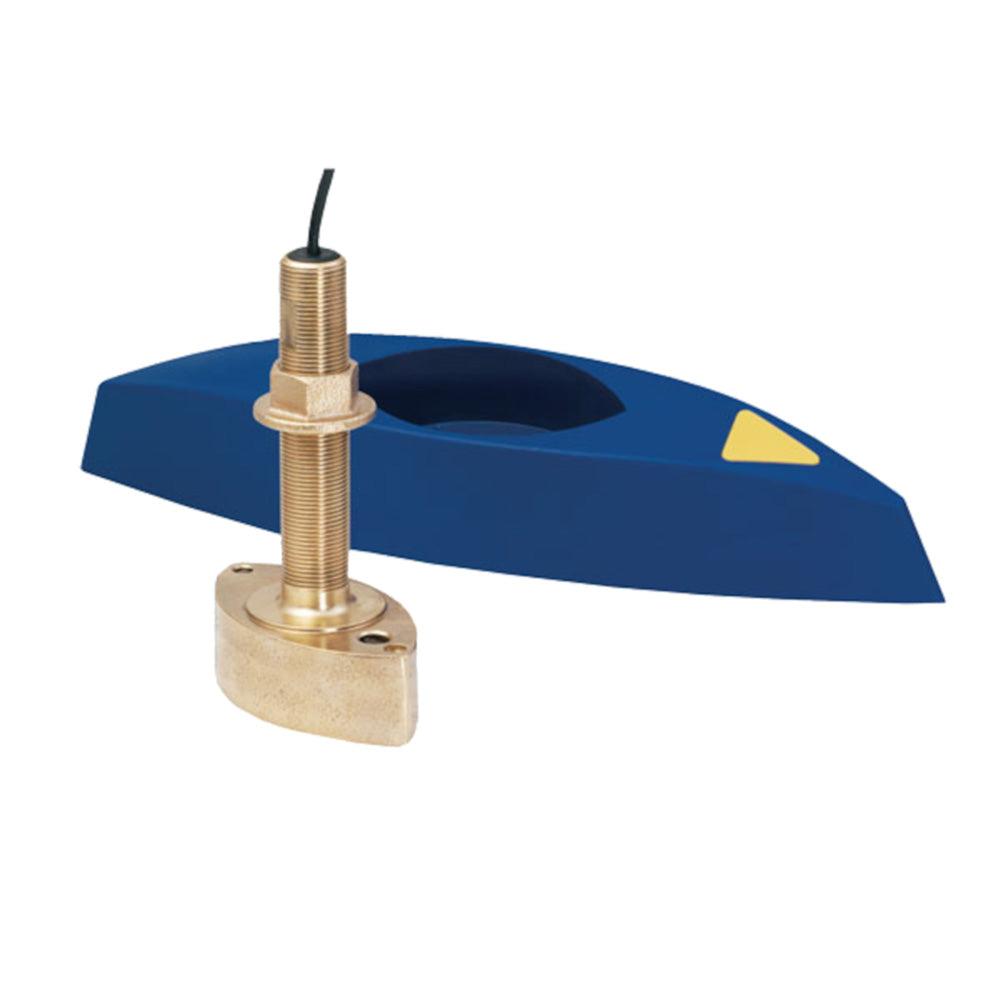

The Airmar B45 is the smallest bronze thru-hull stem transducer in the Airmar lineup, built for planing-hull powerboats and cruising sailboats up to 9 m (30'). Its streamlined classic housing deflects aerated water away from the transducer face for reliable, consistent echo returns, and the included high-performance fairing block keeps installation clean and effective. An 8-pin connector makes it a direct fit for compatible Garmin 50/200 kHz units.
Specifications:
- Bronze housing with streamlined, aeration-deflecting design
- Measures depth and water temperature
- Recommended for planing-hull powerboats and cruising sailboats up to 9 m (30')
- Fast-response water-temperature sensor with ±0.2°C (±0.1°F) accuracy
- High-performance fairing block included (part no. 33-351-01)
- Fits all Garmin 50/200 kHz units with 8-pin connector
- Usable shaft length: 92 mm (3.62 in.)
- Frequency: 50/200 kHz
- Beamwidth: 45° at 50 kHz, 12° at 200 kHz
- RMS power: 600 W
- Maximum depth range at 50 kHz: 235–353 m (800–1,200 ft.)
- Maximum depth range at 200 kHz: 118–206 m (400–700 ft.)
