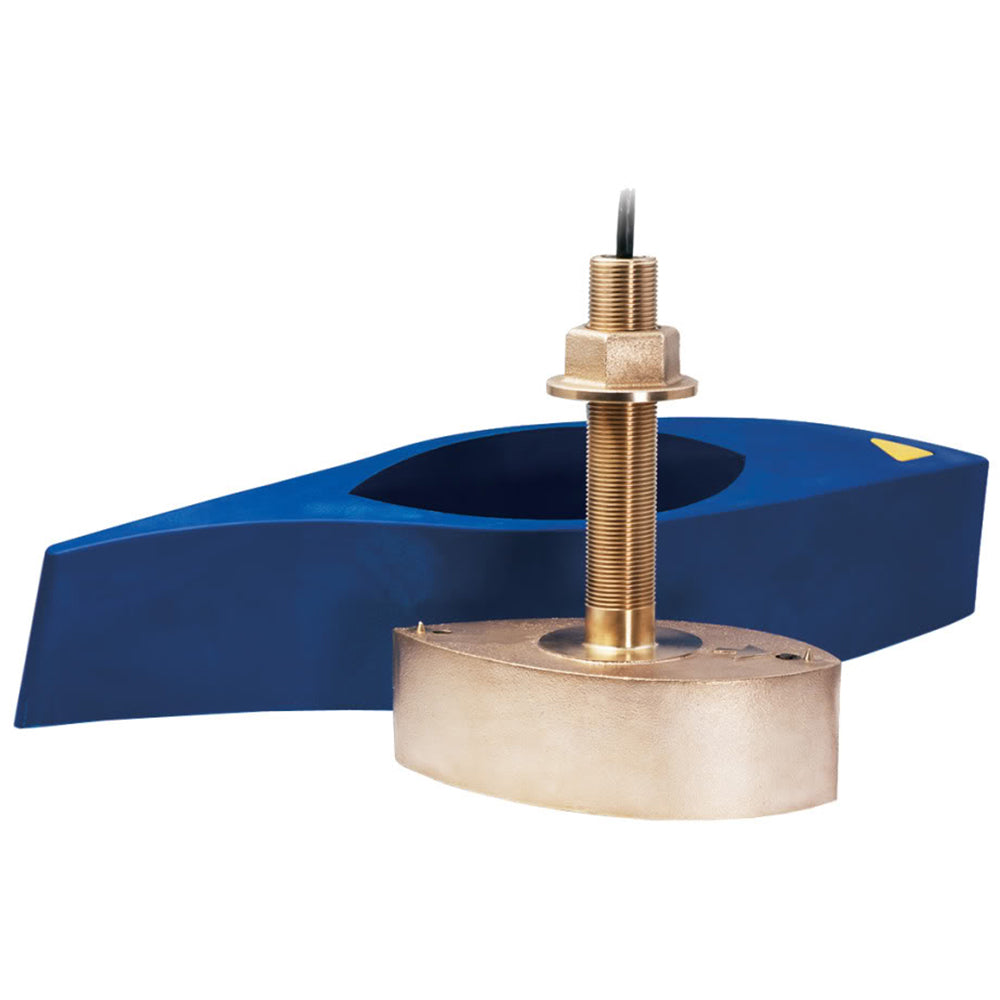

The Airmar B275C-LHW is a bronze thru-hull transducer engineered for anglers who want maximum bottom coverage and sharper fish returns across the water column. Operating across both a low CHIRP band (42–65 kHz) and a high wide CHIRP band (150–250 kHz), it delivers a constant 25° beam angle throughout the entire high-frequency range — roughly twice the coverage of standard narrow-beam high-frequency CHIRP transducers. The result is crisper, larger target images on compatible CHIRP-ready echosounders, with improved detection of fish that can go unnoticed on narrower units. A Mix & Match cable is required and sold separately.

Specifications:

• Transducer Type: Bronze Thru-Hull
• Frequency — Low Band: 42–65 kHz
• Frequency — High Band: 150–250 kHz
• Beam Width: Constant 25° (across full high-frequency band)
• Power: 1 kW
• Sensing: Depth & Temperature
• Housing Material: Bronze
• Cable: Requires Mix & Match Cable (sold separately)

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Resources:

• Quick Start Guide (PDF)
