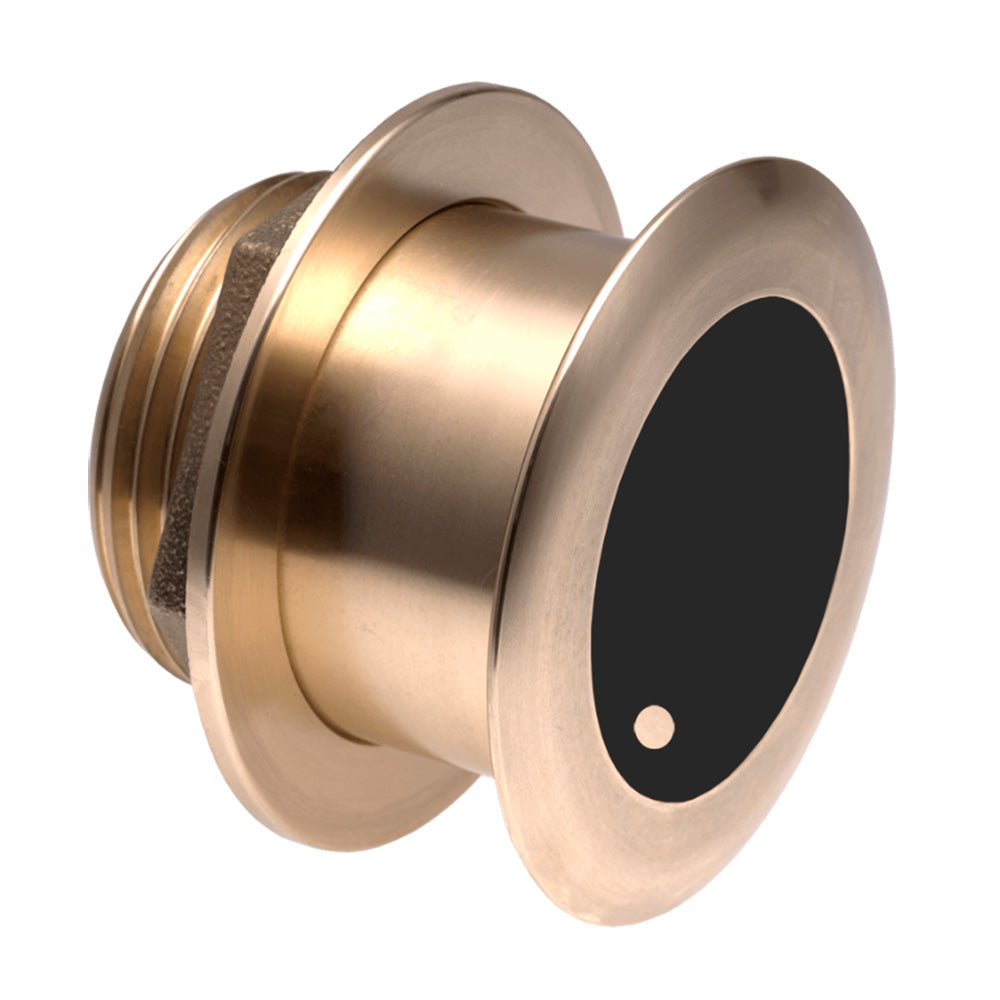

The Airmar B175MW is a CHIRP-ready, medium ultra-wide tilted element thru-hull transducer operating at 60–100 kHz with an exceptional port-to-starboard beamwidth of 57°–73° and a 16° average fore-aft spread. Designed for anglers targeting pelagic species in the upper and mid water column, it delivers 40 kHz of total bandwidth and depth tracking to 400 m (1,300') from a single 1 kW transducer. The bronze tilted-element housing installs nearly flush with the hull — available with a 20°, 12°, or 0° ceramic element angle to correct for hull deadrise and keep the beam properly vertical. A Mix & Match cable is required and sold separately.

Features:

• Integrated depth and fast-response water-temperature sensor
• 1 kW output with depth tracking to 400 m (1,300')
• Medium frequency (60–100 kHz) for superior mid-depth performance and excellent fish-target separation
• Ultra-wide 57°–73° port/starboard beamwidth and 16° average fore/aft beamwidth
• 40 kHz total bandwidth from a single transducer
• Bronze thru-hull housing compatible with stepped, planing, or displacement hulls
• Low-profile housing maintains good resolution at speed when properly installed
• Exclusive Xducer ID® technology

Specifications:

• Power Rating: 1 kW
• Single or Dual Frequency: CHIRP-Ready Single-Band
• Medium Frequency: 60–100 kHz
• Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) x 16° average (Fore/Aft)
• Max Depth: 400 m (1,300')
• Max Deadrise Angle: 24°
• Mounting Style: Tilted Element Thru-Hull
• Tilted Element: Yes
• Housing: Bronze
• Acoustic Window: Urethane
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 11 m (36')
• Hole Size: 95 mm (3-3/4")
• Cable Length: 9 m (30')
• Functions: Depth, Temperature
• Water Temperature Range: -10° to 40°C (14° to 104°F)
• Weight: 2.7 kg (6 lbs)
• Common Use: Fishing
