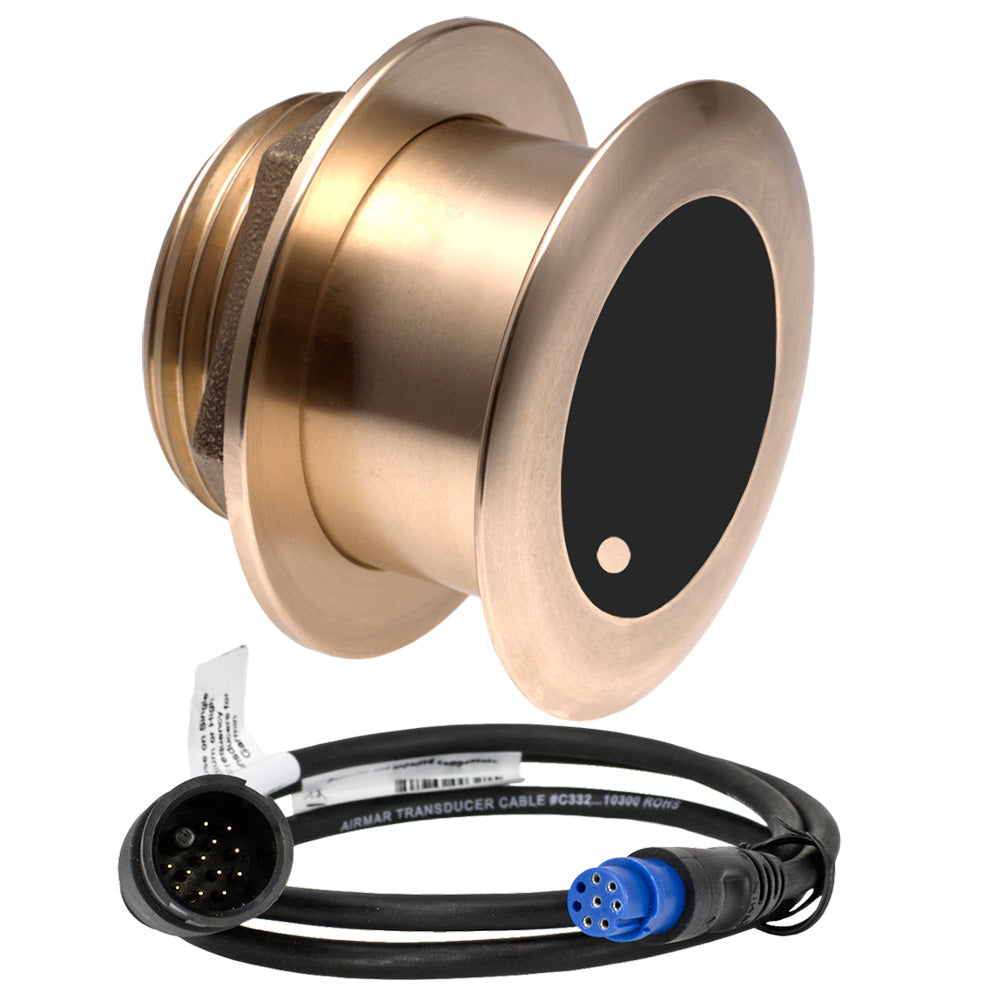

The Airmar B175MW is a CHIRP-ready, 1 kW thru-hull transducer built on Airmar's proven Tilted Element housing, purpose-designed for anglers targeting pelagic species in the upper and mid water column. Operating across a 60–100 kHz medium-frequency band, it delivers an ultra-wide 57°–73° port-to-starboard beamwidth paired with a 16° average fore-to-aft angle — 40 kHz of total bandwidth from a single transducer. The fixed 20° tilted ceramic element compensates for hull deadrise between 16° and 24°, keeping the beam oriented vertically for maximum echo returns without a fairing block. Bronze construction suits stepped, planing, or displacement hulls in fiberglass or wood, and the integrated depth and fast-response water-temperature sensor rounds out the feature set. Exclusive Xducer ID technology ensures automatic recognition by compatible Garmin 8-pin fishfinders.

Specifications:

• Brand: Airmar Technology
• Acoustic Window: Urethane
• Cable Length: 9 m (30') / 10 m (33')
• Common Use: Fishing
• Connector: Garmin 8-Pin (Display Connector: 8G)
• Country of Origin: USA
• Functions: Depth, Temperature
• Hole Size: 95 mm (3-3/4")
• Hull Material Compatibility: Fiberglass or Wood
• Housing Material: Bronze
• Mounting Style: Tilted Element Thru-Hull
• Tilt Angle: 20° (fixed) — suits 16°–24° hull deadrise
• Tilted Element: Yes
• Power Rating: 1 kW
• Medium Frequency: 60–100 kHz
• Total Bandwidth: 40 kHz
• Medium-Wide Beamwidth: 57°–73° (Port/Starboard) x 16° average (Fore/Aft)
• Single or Dual Frequency: Single
• Max Depth: 400 m (1,300')
• Max Vessel LOA: Up to 11 m (36')
• Max Deadrise Angle: 24°
• Water Temperature Range: -10° to 40°C (14° to 104°F)
• Weight: 2.7 kg (6 lbs.)
• Xducer ID Technology: Yes

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
