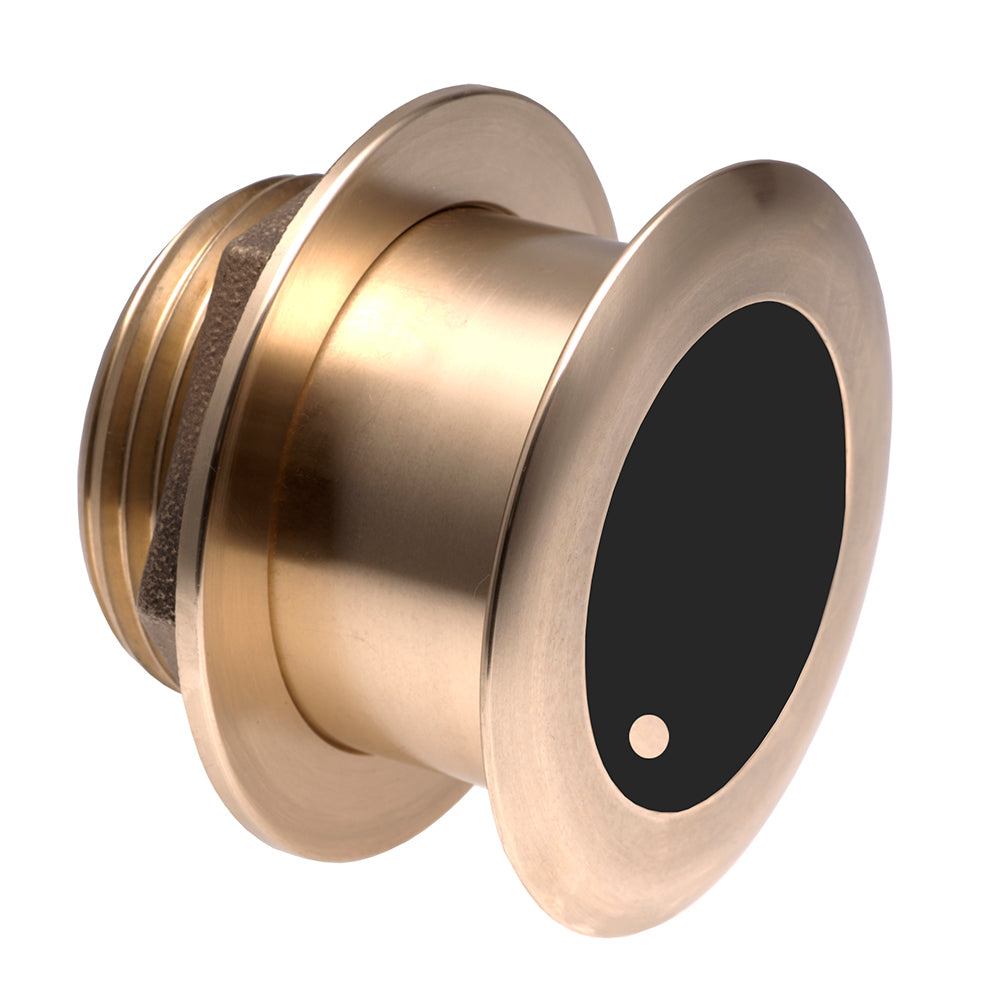

The Airmar B175HW delivers wide-beam CHIRP performance in a bronze thru-hull form factor with a 20° tilt angle. Operating across a 150–250 kHz frequency range with a constant 25° beamwidth throughout the entire band, this transducer provides roughly twice the bottom coverage compared to standard narrow-beam high-frequency CHIRP transducers. The consistent beam angle produces larger, crisper target returns on the display and improves fish detection in the upper water column. A Mix and Match cable is required and sold separately.

Specifications:

• Transducer type: Bronze thru-hull, 20° tilt
• Power: 1 kW
• CHIRP frequency range: 150–250 kHz (High)
• Total bandwidth: 100 kHz from a single transducer
• Beamwidth: Constant 25° across the full frequency band
• Covers 200 kHz and all frequencies within the bandwidth
• Integrated depth and fast-response water-temperature sensor
• Exclusive Xducer ID® technology
• Compatible hull types: Fiberglass or wood
• Recommended boat size: 8 m (25 ft) and above
• Cable: Requires Mix and Match cable (sold separately)

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
