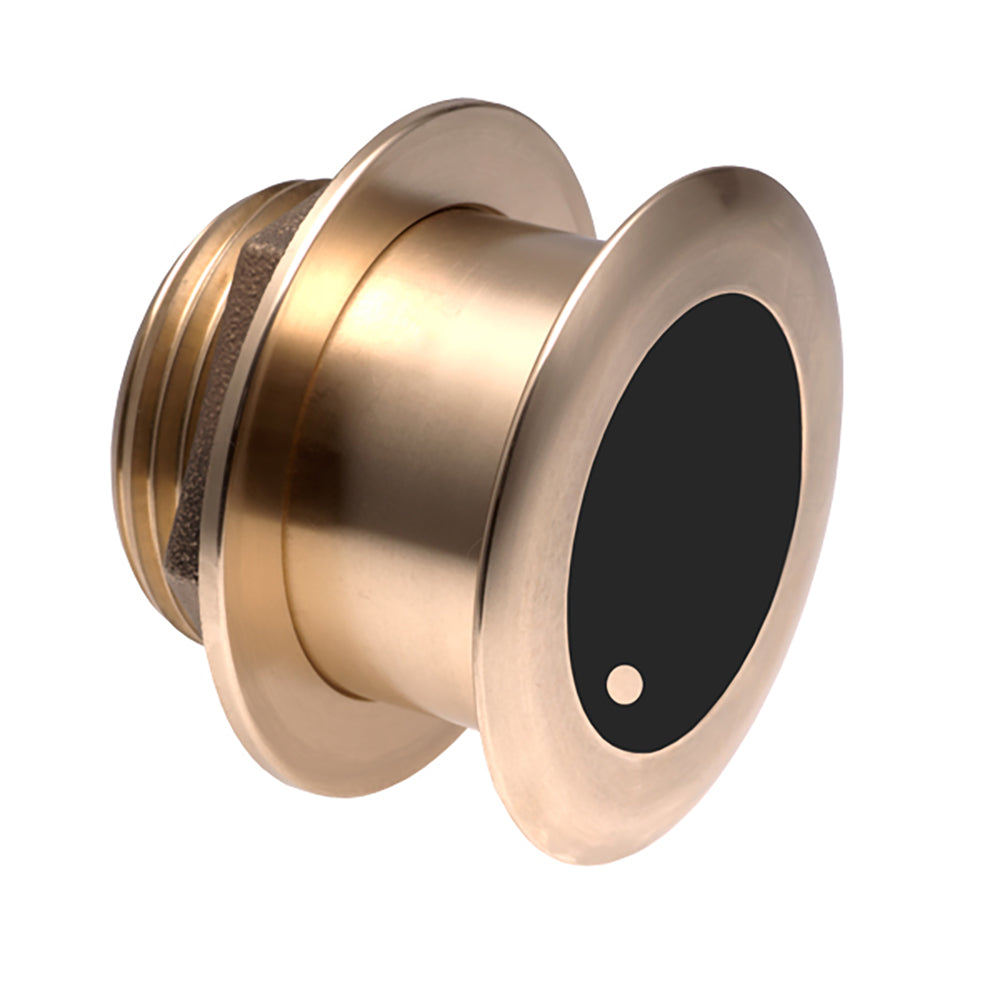

The Airmar B164 brings 1 kW Tilted Element™ performance to vessels that can't accommodate a high-performance fairing. The ceramic arrays are angled inside a flush-mount bronze housing, directing a true vertical beam straight below the hull while the housing itself protrudes less than 6.35 mm (0.25") — low enough to rest on trailer rollers and bunks without risk of damage. Compatible with any 600 W or 1 kW echosounder, it pairs depth reading with a fast-response water-temperature sensor, making it a capable upgrade for center-console and trailered tournament sportfishing boats in the 25–35 ft range.

Specifications:

• Power: 1 kW
• Frequencies: 50/200 kHz, multiple-ceramic array
• Housing material: Bronze
• Acoustic window: Urethane
• Hull protrusion: Less than 6.35 mm (0.25")
• Hull deadrise: Up to 28°
• Sensors: Depth and fast-response water temperature
• Compatible with: Any 600 W or 1 kW echosounder
• Connector: Humminbird #9 Plug, 7-Pin
• Beam angle: 0° (Tilted Element™ technology)
• Recommended boat size: 8 M to 11 M (25 ft to 35 ft)
• Weight: 2.7 kg (6 lb)
• Engineered for: Center-console and trailered vessels
